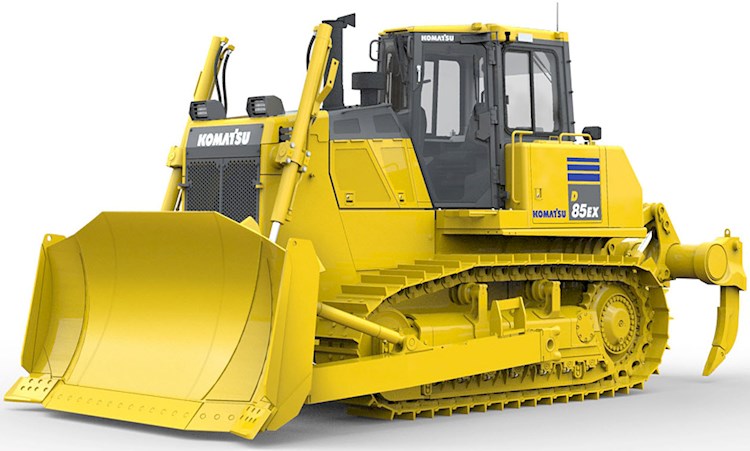

New Komatsu D85EX-18 Bulldozer for Sale Need a larger powerful dozer that’s still cost efficient? The D85EX-18 is a great choice. You’ll appreciate its 11-liter engine, large capacity power-pitch blade, fuel efficient automatic shift transmission and economical PLUS (Parallel Link Undercarriage System) rotating bushing undercarriage option.
Custom build the dozer you need: All the dozers in the D65/85/155 family offer you outstanding power, economy and reliability. Customize yours with the blade (straight, Semi-U, Sigmadozer and Full U (D155 only)), track shoe width and horsepower combo best suited to your particular application. Helps minimize fuel use: An advanced Tier 4 engine offers you a potent combo of power and fuel efficiency. An auto idle shutdown, adjustable from 5-60 minutes, also helps cut fuel use and emissions. Controls help fight operator fatigue: Operators will enjoy the palm command electronic control joysticks that fit the natural relaxed shape of their hands. Auto-shift or manual-shift modes are easily selected with one push of a button for precision with less fatigue over the course of a shift. Smooth, powerful handling: Your operators can execute smooth powerful turns with the hydrostatic steering system. It transmits engine power to both tracks without power interruption and minimizes turning radius with counter-rotation while in neutral. Long-lasting undercarriage: Get the most from your dozer. The Parallel Link Undercarriage System (PLUS) with rotating bushings delivers up to twice the life of our conventional undercarriage with no pin and bushing turn required. Parts wear evenly and last longer before needing replacement. Work with fuel-efficient power: Seek maximum work efficiency with a lock-up torque converter. It determines the appropriate gear based on load and conditions. The lockup mechanism then automatically transfers engine power directly to the transmission, helping boost drive train efficiency. intelligent Machine Control (iMC): With automatic dozing, rough cut to finish grade, iMC-equipped machines make every pass count. Dozers “learn” operator blade input. In select situations, operators can opt for near-100% auto control. And, iMC helps new operators get up to speed quickly. Help operators stay focused: Your operators perform best when they’re comfortable. That’s why they’ll love the air suspension seat with lumbar support and tilt. It’s easy for them to adjust to suit their needs, and electric heat helps them stay comfortable in the cold. Situational awareness: A standard rear camera monitoring system displays the view behind the dozer on the large color monitor in the cab. No-hassle DPF regeneration: Tier 4 machines use diesel particulate filters to burn off engine soot via regeneration. To help make sure it rarely impacts your operation, all D65/D85/D155 models use continuous passive regeneration, and active regeneration that typically doesn’t require the dozer to stop. |
| Dimensions | |
|---|---|
| Length | 24’1” |
| Width | 6 ft. 7 in. (2,006 mm) |
| Height | 10 ft. 11 in. (3,328 mm) |
| Weight | 53,770 lbs. |
| Wheelbase | 10 ft. (3,048 mm) |
| Ground Clearance | 1 ft. 6 in. (450 mm) |
| Turning Radius | 6 ft. 6 in. (2 m) |
| Operating Weight | 68,165 lbs. |
| Fuel Tank Capacity | 124.1 gal. (470 l) |
| Frame Type | Track roller: Monocoque, large section, durable construction |
| Final Drive | Double-reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement. Triple labyrinth protects seals and improves durability. |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SAA6D125E-7 |
| Engine Type | 4-cycle, direct injection |
| Cylinders | 6 |
| Net Horsepower | 264 hp (197 kW) @ 1,900 rpm |
| Cooling | Water-cooled |
| Bore x Stroke | 4.49 x 5.69 in. (125 x 150 mm) |
| Displacement | 674 cu. in. (11.04 l) |
| Speed - Foreward | 1st: 2.1 MPH 2nd: 3.8 MPH 3rd L: 4.8 MPH 3rd: 6.3 MPH |
| Speed - Reverse | 1st: 2.7 MPH 2nd: 5.0 MPH 3rd L: 5.7 MPH 3rd: 8.1 MPH |
| Gross Horsepower | 267 hp (199 kW) @ 1,900 rpm |
| Governor | All-speed and mid-range, electronic |
| Rated RPM | 1900 RPM |
| Lubrication System | Method: Gear pump, force lubrication Filter: Full-flow |
| Aspiration | Komatsu variable geometry turbocharged, air-to-air aftercooled |
| Fan Drive Type | Hydraulic |
| Drivetrain | |
|---|---|
| Number of Speeds | 3 |
| Track Length | 10’ |
| Roller Type | Lubricated |
| Ground Pressure | 8.62 PSI |
| Track Number | 7 each side |
| Grouser Height | 2.8” |
| Hydraulic | |
|---|---|
| Control Valve | Spool control valves for SIGMADOZER, semi-u tilt or straight tilt dozer Positions: Blade lift-Raise, hold, lower, and float Blade tilt-Right, hold, and left Rear attachment-Raise, hold, and lower |
| Hydraulic System | Closed-center load sensing system (CLSS) designed for precise and responsive control, and for efficient simultaneous operation. |
| Hydraulic Cylinders | Number of Cylinders x Bore Blade lift: 2 x 4.0” Blade tilt: 1 x 5.9” Blade angle: 1 x 5.9” (only SIGMADOZER) Ripper lift: 2 x 5.1” Pitch angle: 45°-51° (SIGMADOZER) & 52°-58° (Straight Tilt Dozer) |
| Relief Valve Setting | 3,270 PSI |
| Operational | |
|---|---|
| Blade Width | 11’9” (Strengthened Single Tilt Power Pitch SIGMADOZER) 11’11” (Strengthened Semi-U Tilt Dozer) |
| Blade Height | 5’5” (Strengthened Single Tilt Power Pitch SIGMADOZER) 5’3” (Strengthened Semi-U Tilt Dozer) |
| Blade Capacity | 9.2 yd³ (Strengthened Semi-U Tilt Dozer) 9.4 yd³ (Strengthened Single Tilt Power Pitch SIGMADOZER) |
| Blade Tilt | 2 ft. 4 in. (700 mm) Single Tilt Power Pitch SIGMADOZER 2 ft. 5 in. (735 mm) Semi-U Tilt |
| Dig Depth | Maximum Drop Below Ground: 1 ft. 11 in. (590 mm) Single Tilt Power Pitch SIGMADOZER 1 ft. 9 in. (530 mm) Semi-U Tilt |
| Suspension | Oscillating equalizer bar and pivot shaft |
| Steering | Palm Command Control System (PCCS) lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to left to make a left turn. Tilt it to the right for a right turn. Hydrostatic Steering System (HSS) is powered by steering planetary units and a hydraulic pump and motor. Counterrotation turns are also available. Wet, multiple-disc, pedalcontrolled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake. |
| Shoes | 41 each side Lubricated tracks. Unique dust seals for preventing entry of foreign abrasives into pin-to-bushing clearance for extended service life. Track tension is easily adjusted with grease gun. |
| Shoe Width | 26” |
| Shoe Type | Single Grouser |
| Track Gauge | 6’7” |
| Ground Contact | 6,240 in² |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | D85EX-18 |
