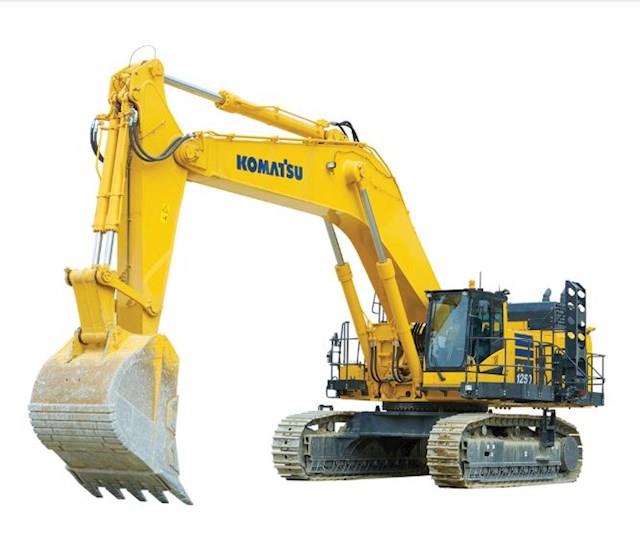

New Komatsu PC1250LC-11 Excavator for Sale The PC1250LC-11 reach boom and three arm options provide an excellent combination of stability, digging performance, extended reach and depth. This is an ideal machine for large general construction projects or deep underground utility work. INCREASED PERFORMANCE The PC1250LC-11 engine power is 13% greater than the former model. This increased engine power provides greater hydraulic power and up to 8% faster cycle times than the PC1250LC-8. This advantage shows up in faster digging and boom up, arm out swing cycle segments. UPDATED CAB AND MONITOR The PC1250LC-11 uses a cab mount damping system that incorporates long stroke vibration isolators. This cab mounting system combined with a strengthened left and right side decks, aids vibration reduction at the operator’s seat. An upgraded 7” color monitor is now 40% larger than the previous model and incorporates the updated operator interface introduced on the smaller Dash 11 Komatsu excavator models. KOMATSU KOMVISION BIRD’S EYE CAMERA SYSTEM STANDARD A new 4 camera bird’s eye vision system provides improved visibility around the machine, a real benefit when working around trucks on a busy loading area. An updated monitor interface provides an overhead bird’s eye view, selectable single camera views or a full screen viewing mode. OPTIONAL HYDRAULIC ACCESS LADDER AND SERVICE TIE OFF POINTS A new hydraulic powered access ladder provides significantly easier access to the operator cab and walk ways. When lowered, the ladder provides a 45 degree stair, when raised, it stores out of the way in a vertical position. The access ladder is available factory installed or as a field installation kit. When working in elevated positions on the boom and arm, tie off points provide anchors for technician harness lanyards. KOMTRAX AND KOMTRAX PLUS KOMTRAX Plus provides expanded machine monitoring beyond KOMTRAX using Iridium® satellite and wireless LAN communication modes. Advanced Iridium® satellite communication technology provides uninterrupted KOMTRAX data transmission in remote locations. Machine health and performance can be analyzed from a remote location in a near real time basis including component condition and trend data. CENTER AISLE MAINTENANCE WALKWAY A wide center walkway provides easy access to key inspection and maintenance areas. Additionally, grouped inspection and maintenance points facilitate efficient service in checks.
|
| Body | |
|---|---|
| Frame | Center: H-leg frame Track: Box-section |
| Steering | Two levers with pedals |
| Dimensions | |
|---|---|
| Length | 52’2”-52’10” |
| Width | 18’10” (walkway installed) 11’5” (Upper L/R walkways walkway removed) 7’5” (Upper R walkway walkway removed) |
| Height | 13’6”-22’11” |
| Weight | 269,300-272,600 lbs. |
| Ground Clearance | Counterweight-5’10” Minimum-3’3” |
| Fuel Tank Capacity | 359.3 Gallons |
| Engine | |
|---|---|
| Drive Type | Hydraulic |
| Engine Make | Komatsu |
| Engine Model | SAA6D170E-7 |
| Engine Type | Water-cooled, 4-cycle, direct injection |
| Cylinders | 6 |
| Horsepower | 775 HP |
| Net Horsepower | 758 HP |
| Bore x Stroke | 6.69” x 6.69” |
| Governor | All-speed, electronic |
| Rated RPM | 1800 RPM |
| Aspiration | Turbocharged, aftercooled, cooled, EGR |
| Piston Displacement | 1,413 in³ |
| Drivetrain | |
|---|---|
| Drive | Fully hydrostatic; 2 x hydraulic motors |
| Brakes | Service-Hydraulic Parking-Oil disc |
| Gradeability | 70%, 35° |
| Track Length | 24’3”; 19’7” (on ground) |
| Drawbar Pull | 154,320 lbf |
| Track Type | Sealed |
| Track Rollers | Standard, SP-8 (each side) Long undercarriage-10 (each side) |
| Ground Pressure | 11.35 PSI-13.45 PSI |
| Carrier Rollers | 3 (each side) |
| Track Adjuster | Hydraulic |
| Hydraulic | |
|---|---|
| Pump | Variable capacity piston, Sub-pump for control circuit-Gear Type, Fan drive-Variable-capacity piston type |
| Std Pump Flow | Implement & Travel: 2x130.5 gal/min; Swing: 1x158.5 gal/min |
| Hydraulic Cylinders | Number of cylinders-bore x stroke x rod diameter Cylinder Boom: 2-8.9" x 94.1" x 6.3" Cylinder Arm: 1-9.8" x 95.9" x 6.7" Number of Buckets: bore x stroke x rod diameter Standard: 2-6.3" x 71.8" x 4.5" SP: 2-6.3" x 76.8" x 4.5" |
| Relief Valve Setting | Implement circuits: 4,550 psi Travel circuit: 4,980 psi Swing circuit: 4,267 psi Pilot circuit: 455 psi |
| Travel Motor | Axial piston motor, in-shoe design |
| Hydraulic Motors | Travel: 2 x axial piston motors with parking brake Swing: 2 x axial piston motors with swing holding brake |
| Hydraulics | Open-center load sensing system, 1 selectable working mode |
| Operational | |
|---|---|
| Dig Depth | 30’8”-38’0” |
| Dig Height | 44’-45’8” |
| Arm Length | 11’2”-18’8” |
| Dump Height | 28’6”-31’ |
| Bucket Capacity | 5.3-9.5 yd³ |
| Travel Speed - Forward | High-2 mph, Low-1.5 mph |
| Maximum Reach | 55-70 ft. (Material Handler) |
| Boom Length | 29’10” |
| Tail Swing Radius | 15’11” |
| Swing Torque | 299,524 lb-ft |
| Swing Speed | 5.8 RPM |
| Shoes | Standard, SP-48 (each side) Long undercarriage-55 (each side) |
| Track Gauge | 12’10” |
| Swing Reduction | Planetary gear |
| Swing Circle Lubrication | Grease-bathed |
| Swing Lock | Mechanical disc brake |
| Hydraulic Type | Open-center load sensing system, 1 selectable working mode |
| Digging Reach | 50’4”-57’3” 49’3”-56’2” (at ground level) |
| Grapple Capacity | 4-7 yd³ (Material Handler) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC1250LC-11 |
