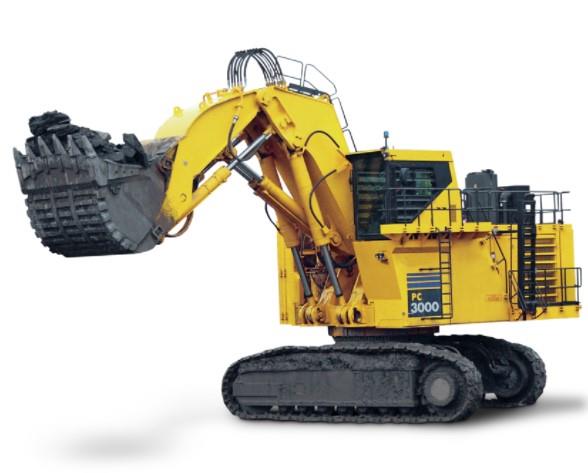

New Komatsu PC3000-11 Excavator for Sale Even in confined work sites, you can maintain high production. The PC3000 is a powerful, versa-tile machine with advanced technology and a 16m3 shovel and 15m3 backhoe capacity, and the reach to fill 85-165 st trucks.
Features and Benefits
|
| Body | |
|---|---|
| Cab | Damping pads (amount): Enclosed steel cab mounted on viscous pads AC System: Air-condition unit Suspension of seat: Full suspension operator seat with belt Heating of seat: Electrically heated Seat belt: Lap seat belt Adjustments of seat: Multiple adjustments Joystick controls: Joysticks and controls are hydraulic Foot controls: Electronic Pedals, foot control for shovel clam, crawler and swing brake Hydraulic pilot control Radio version: AM-FM radio with MP3 ready CD player and AUX in Windshield washers: 2 synchronised windshield wash wiper Windshield washer speed: Two speeds and intermittent operation Additional mirrors: 2 heated rear mirrors Sun blinds: External metal sun blinds on side window Roller blinds: Internal roller blinds on all windows, except rear door Sliding window: Left hand, escape window Window tinting: Parsol green Penetration proof windows: Impact resistant front window (21 mm and tolerances) Walkway: Walkway around the cab Engineering standards: ISO 3449, ISO 6394, ISO 10263-4 TL: EN474-1, EN 474-5, DIN 15018, BR2-S DIN EN 1063, ECE R43, ISO 10262 |
| Dimensions | |
|---|---|
| Weight | 4,032 lbs. |
| Fuel Tank Capacity | 1,190 Gallons |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SDA12V159E-3 |
| Engine Type | Diesel: 4-cycle, direct injection Electric: Asynchronous motor |
| Cylinders | 12 |
| Horsepower | 1,260 HP 1,223 HP (electric drive) |
| Cooling | Water-cooled |
| Electrical System | 24 V |
| Electrical | E-drive availability: Not available Engines amount: 1 |
| Governor | All-speed, electronic |
| Lubrication System | Two hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The central lube grease system is supplied from a refillable 53 gal barrel. A second, identical system supplies open gear lubricant to the swing ring teeth through a lube pinion. Replenishment of the barrels is through the service arm. |
| Aspiration | Turbocharged and intercooled |
| DEF Tank Capacity | 136 Gallons |
| Engine Amount | 1 |
| Drivetrain | |
|---|---|
| Brakes | Service: Hydraulic Brake Parking: Multiple Brake |
| Gradeability | Up to 57% |
| Alternator | 140 A |
| Track Rollers | 3 Top (each side) 7 Bottom (each side) |
| Track Adjuster | Automatic hydraulic type |
| Hydraulic | |
|---|---|
| Pump | Main: Bosch Rexroth 2,750 GPM |
| Hydraulic System | The power train consists of one main drive. Diesel or electric motor can be supplied. One gearbox drives three identical main pumps which draw hydraulic oil from an unpressurised hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency. |
| Hydraulic Flow | Full flow return line filters 3 x 10 microns and leakage line filter 3 microns all with monitored 200 microns by pass filters. The three-circuit system features a load limiting governor with oil delivery summation to the working circuits and incorporates pressure cut-off control. Hydropilot prioritises hydraulic flow giving smooth hydraulic response, simple hydraulic system layout, and a reduced number of components |
| Relief Valve Setting | 4,495 PSI |
| Operational | |
|---|---|
| Bucket Capacity | 19.5-21.0 yd³ |
| Screen | 200 microns (High pressure) |
| Travel Speed - Forward | 1.5 MPH |
| Frequency | Standard: 60 Hz @ 1800 RPM Option: 50 Hz @ 1500 RPM |
| Swing Speed | 4.6 RPM |
| Track Shoes | 46 (each side) |
| Swing Brake | Dynamic: Hydraulic brake Parking: Multiple-disc |
| Swing Ring Teeth | External |
| Swing Flow Rate | 211 GPM |
| Swing System | 1 Hydraulic motors and swing gears |
| Battery | |
|---|---|
| Voltage | 6,000-7,200 V |
| Amps | 96-80 A |
| Battery | 4 x 12 V |
| Electrical | |
|---|---|
| Lighting | Standard working lights: 12 LED lights Standard service lights: Throughout the platform including emergency egresses and stairways |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC3000-11 |
