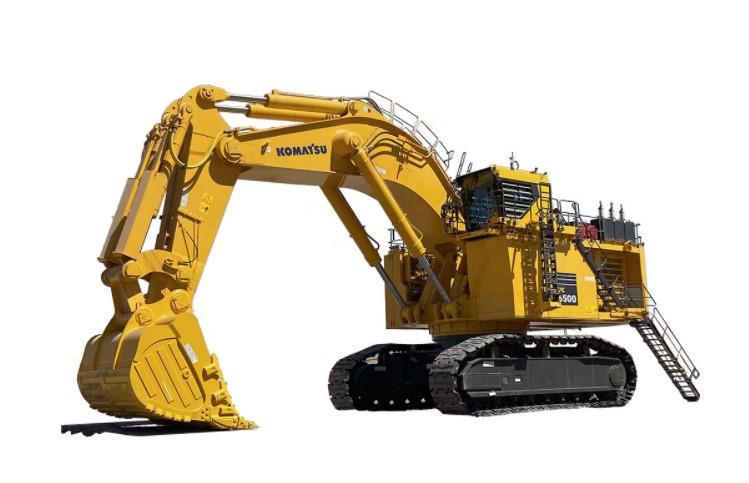

Komatsu PC5500-11

New Komatsu Excavator for Sale

New Komatsu PC5500-11 Excavator for Sale

If you’re looking for a workhorse excavator you can count on, consider the twin-engine PC 5500. Offering a combination of robust construction, choice of diesel or electric motors, and advanced technology, the PC5500 matches with your 150-240 st trucks.

  • SAFEGUARD YOUR OPERATORS AND WORK SITE: Operator and work site safety are a priority. Komatsu hydraulic excavators have an LED screen to give your operator a 360-degree view, each meet ISO 10262, 6394, 10263-4 safety stand-ards, and all include anti-slip gratings, easy ingress/egress and an innovative emergency es-cape system.
  • CUSTOMIZED TO YOUR OPERATION: While Komatsu shovels and backhoes meet the density benchmark of 1.8 t/m³, you have the option to customize your machine to the bucket size and wear package you need, and choose your heating/cooling systems, travel gear protections, special track pad variations and more.
  • SUSTAINABLE, POWERFUL ENGINES: Tier 4 engines deliver plenty of power with outstanding sustainability. An exhaust after-treatment system reduces particulate matter, sulfur oxides and dangerous NOx, and easy servicing of emissions components.
  • DIAGNOSTICS TO HELP IMPROVE PRODUCTIVITY: To improve productivity and limit downtime, you need accurate, reliable machine data. The exca-vator’s newly revamped monitoring system helps you dial in efficient machine movement, quickly identify opportunities to improve productivity, and troubleshoot any issues quickly.
  • CRITICAL DATA TO HELP BOOST EFFICIENCY: A built-in payload meter helps you optimize the efficiency of your truck traffic flow and your fleet. Knowing just how much load is in the bucket versus your trucks’ capacity gives you data you need to calculate optimal loading times and truck passes for maximum productivity.
  • KOMTRAX PLUS: The KOMTRAX Plus monitoring system is designed for Komatsu mining equipment to provide real time and stored information about the operating status of the machine. Fault messages are immediately available to the operator via a digital display and in the event of critical malfunctions the engine is also shut down. The digital storage provides failure summary and analysis, which can be down loaded by laptop computer. This data will assist in predicting or reduction downtime. Optionally available is Orbcomm satellite transmission (check for availability in your territory).
    • Version: Komtrax Plus 2
    • Argus PLM ready: Yes
Dimensions
Length 31’11”
Width 24’9”-27’9”
Height 28’3”
Weight 1,183,882-1,194,905 lbs.
Fuel Tank Capacity 2736 Gallons
Engine
Drive Type Electric: Asynchronous motor
Engine Make Komatsu
Engine Model SDA12V159E-3 (2)
Engine Type Direct Injection
Cylinders 12
Horsepower 2x1260 HP
Cooling Water-cooled
Electrical System 24 V24 V
Electrical Type: Asynchronous motor
Governor All-speed, electronic
Rated RPM 1800
Lubrication System Three hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1x 600 and 1x 300 L (total 238 gal). Replenishment of the containers is through the Wiggins connections on the service arm.
Aspiration Turbocharged and aftercooled
Cycles 4
DEF Tank Capacity 2 x 136 Gallons (Tier 4)
Drivetrain
Brakes Service: Hydraulic brake
Parking: Multiple-disk
Gradeability Up to 50%
Alternator 2 x 140 A
Track Rollers Top: 3 each side
Bottom: 7 each side
Ground Pressure 26.5-34.7 PSI
Track Adjuster Automatic hydraulic type
Hydraulic
Pump Komatsu; 1110 gpm
Std Pump Flow 1110 GPM
Hydraulic System The power train consists of two main drives. Each of the two gearboxes drives three identical main pumps which draw hydraulic oil from an unpressurized hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency.
Hydraulic Flow The four-circuit systems feature a load-limiting governor with oil delivery summation to the working circuits and incorporates pressure cut-off control. Hydropilot priotieses hydraulic flow giving smooth hydraulic response, simple hydraulic system layout, and a reduced number of components. The hydraulic system includes large swing-out vertical air-to-oil hydraulic coolers with temperature-regulated hydraulically driven fans.
Relief Valve Setting 4,495 PSI
Hydraulic Motors 2
Hydraulics The power train consists of two main drives. Each of the two gearboxes drives three identical main pumps which draw hydraulic oil from an unpressurized hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency
Operational
Bucket Width 9.2’
Dig Depth Shovel: 9.8’
Backhoe: 28.6’
Dig Height 50.3’
Dump Height Shovel: 43’
Backhoe: 31.9’
Bucket Capacity 29-38 yd³
Bucket Breakout Force Shovel: 420,393 lbf.
Backhoe: 340,810 lbf.
Screen High pressure: 200 microns
Travel Speed - Forward 1.4 mph
Frequency Standard: 60 HZ @ 1800 RPM
Option: 50 HZ @ 1500 RPM
Boom Length 24.93’-36.08’
Swing Speed 3.1 RPM
Shoes 46 (each side)
Track Shoes 46 each side
Swing Brake Service: Hydraulic brake
Parking: Multiple-disk
Swing Ring Teeth External
Swing Flow Rate 185 gpm185 GPM
Digging Reach 55’-65.6’
62.5’ (at ground level)
Rollers Top: 3 (each side)
Bottom: 7 (each side)
Battery
Voltage 6000-7200 V
Amps 2 x 155 A-2 x 80 A
Battery 8 x 12 V
Electrical
Lighting Standard Working Lights: 14 LED lights
Standard Service Lights: throughout the platform incl. emergency egresses and stairways
  • OPERATOR CAB
    • Damping pads (amount): Enclosed steel cab mounted on viscous pads
    • AC System: Air-condition unit
    • Suspension of seat: Full suspension operator seat with belt
    • Heating of seat: Electrically heated
    • Seat belt: Trainer seat with belt
    • Adjustments of seat: Multiple adjustments
    • Joystick controls: Electro-hydraulic joystick controls
    • Foot controls: Foot control for shovel clam, crawler and swing brake
    • Radio version: AM-FM radio with MP3 ready CD player and AUX in
    • Windshield washers: 1 large parallel windshield wash wiper
    •  Windshield washer speed:  Two speeds and intermittent operation
    • Additional mirrors: 2 heated rear mirrors
    • Sun blinds: Internal and external
    • Roller blinds: Standard on all windows (excluding rear door)
    • Sliding window: ESG escape window, VSG according to ECE R43
    • Window tinting: Parsol green
    • Penetration proof windows: Impact resistant front window (21 mm and tolerances)
    • Walkway: Walkway around the cab
    • Engineering standards:
      • ISO 3449, ISO 6394, ISO 10263-4
      • TL: EN474-1, EN 474-5, DIN 15018,
      • BR2-S DIN EN 1063, ECE R43, ISO 10262
