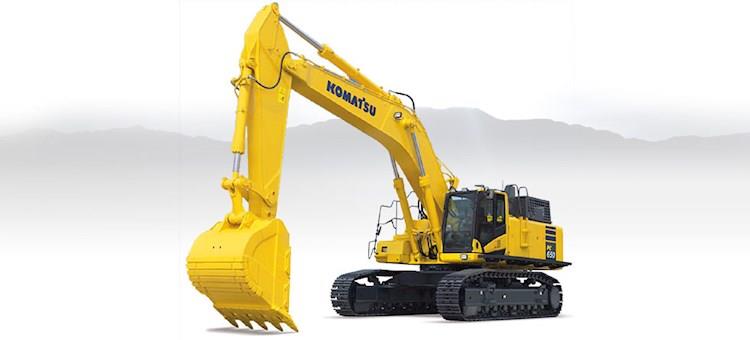

New Komatsu PC650LC-11 Excavator for Sale The PC650LC-11 is an excellent match for high production loading of 30-40-ton trucks and well suited for deep sewer and water trenching applications. It is designed to accommodate flexible job operations that require frequent transportation. Reduce disassembly and time is required. FEATURES
|
Body | |
---|---|
Frame | Center: H-leg Track: Box-section |
Steering | Two levers with pedals |
Dimensions | |
---|---|
Length | 41’4”-42’6” |
Width | 14” |
Height | 10’8” (top of cab) 14’1”-17’2” |
Weight | 140,456-145,284 lbs. |
Ground Clearance | Counterweight: 4’5” Minimum: 2’7” |
Fuel Tank Capacity | 232 gallons |
Engine | |
---|---|
Engine Make | Komatsu |
Engine Model | SAA6D140E-7 |
Engine Type | Water-cooled, 4-cycle, direct injection |
Cylinders | 6 |
Horsepower | 439 HP |
Net Horsepower | 436 HP |
Bore x Stroke | 5.51” x 6.50” |
Governor | All-speed control, electronic |
Rated RPM | 1800 RPM |
Aspiration | Turbocharged, aftercooled, cooled, EGR |
Cycles | 4-cycle |
Piston Displacement | 930 in³ |
Drivetrain | |
---|---|
Drive | Drive method: Fully hydrostatic Fan Drive Type: Hydraulic |
Brakes | Service: Hydraulic lock Parking: Oil disc brake |
Gradeability | 70%, 35 degrees |
Track Length | 18’8” 15’1” (on ground) |
Drawbar Pull | 93,250 lbf |
Track Type | Sealed |
Track Rollers | Number on each side-9 |
Ground Pressure | 10.3-15.16 psi |
Grouser Height | 1.5” |
Carrier Rollers | Number on each side-3 |
Track Adjuster | Hydraulic |
Hydraulic | |
---|---|
Pump | Type: Variable capacity piston Pumps for: Boom, arm, bucket, swing, and travel circuits |
Std Pump Flow | 2 x 108 gal/min |
Hydraulic Tank Capacity | 95.1 gallons |
Hydraulic Cylinders | Number of cylinders: bore x stroke x rod diameter Boom: 7.3” x 67.9” x 4.7” Arm: 7.9” x 80.5” x 5.5” Bucket: 7.3” x 56.1” x 5.1” |
Relief Valve Setting | Implement circuits: 4,700 psi Travel circuit: 4,980 psi Swing circuit: 3,700 psi Pilot circuit: 430 psi |
Travel Motor | Axial piston motor, in-shoe design |
Hydraulic Motors | Travel: 2 x axial piston motors with parking brake Swing: 2 x axial piston motors with swing holding brake |
Hydraulics | Open-center load sensing system, 3 selectable working modes |
Operational | |
---|---|
Dig Depth | 27’10”-33’7” |
Dig Height | 39’-41’3” |
Arm Length | 11'6" |
Dump Height | 26’1”-28’3” |
Bucket Capacity | 2.05-4.98 yd³ |
Travel Speed - Forward | High: 3.0 mph Low: 1.9 mph |
Maximum Reach | 55-60 ft. (Material Handler) |
Boom Length | 25'2" |
Tail Swing Radius | 13” |
Swing Torque | 154,481 ft lbs |
Swing Speed | 8.3 rpm |
Shoes | Number on each side-52 |
Shoe Width | 35.5” |
Track Gauge | 8’6” (when retracted) 10’10” (when expanded) |
Swing Reduction | Planetary gear |
Swing Circle Lubrication | Grease-bathed |
Swing Lock | Mechanical disc brake |
Drive Method | Fully hydrostatic Swing System: 2 x hydraulic motors |
Hydraulic Type | Open-center load sensing system, 3 selectable working modes |
Digging Reach | 42’9”-48’ 42’-47’4” (at ground level) |
Grapple Capacity | 2-3 yd³ (Material Handler) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Komatsu |
MODEL | PC650LC-11 |
