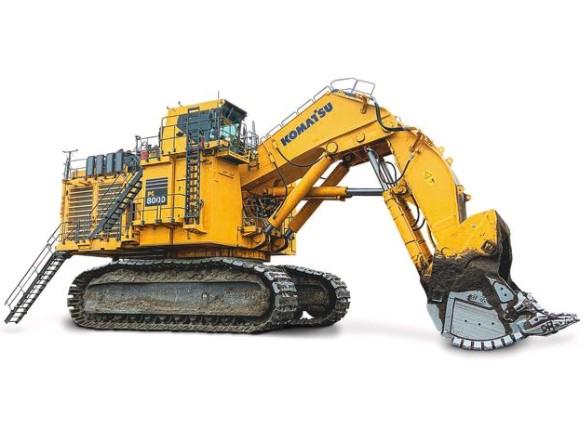

New Komatsu PC8000-11 Surface Mining Excavator for Sale When you need to cycle through large loads, the PC8000 has you covered. It was designed with input from mining operations around the globe to maximize productivity with 240-400 st trucks.
Features and benefits
|
| Body | |
|---|---|
| Cab | Damping pads (amount): Enclosed steel cab mounted on viscous pads AC System: Air-condition unit Suspension of seat: Full suspension operator seat with belt Heating of seat: Electrically heated Seat belt: Trainer seat with belt Adjustments of seat: Multiple adjustments Joystick controls: Electro-hydraulic joystick controls Foot controls: Foot control for shovel clam, crawler and swing brake Radio version: AM-FM radio with MP3 ready CD player and AUX in Windshield washers: 1 large parallel windshield wash wiper Windshield washer speed: Two speeds and intermittent operation Additional mirrors: 2 heated rear mirrors Sun blinds: Internal and external Roller blinds: Standard on all windows (excluding rear door) Sliding window: ESG escape window, VSG according to ECE R43 Window tinting: Parsol green Penetration proof windows: Impact resistant front window (21 mm and tolerances) Walkway: Walkway around the cab Engineering standards: ISO 3449, ISO 6394, ISO 10263-4 TL: EN474-1, EN 474-5, DIN 15018, BR2-S DIN EN 1063, ECE R43, ISO 10262 |
| Dimensions | |
|---|---|
| Weight | 11,928 lbs. |
| Fuel Tank Capacity | 3,679 Gallons |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | 2x SDA16V160E-3 |
| Engine Type | Diesel: 4-cycle, direct injection Electric: Asynchronous motor |
| Cylinders | 16 |
| Horsepower | 2 x 2,010 HP 1,970 HP (electric drive) |
| Cooling | Water-cooled |
| Electrical System | 24 V |
| Electrical | E-drive availability: Not available Engines amount: 2 |
| Governor | All-speed, electronic |
| Lubrication System | Three hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1 x 600 and 1 x 300 L (total 238 gal). Replenishment of the containers is through the Wiggins connections on the service arm. |
| Aspiration | Turbocharged and intercooled |
| DEF Tank Capacity | 2 x 156.5 Gallons |
| Engine Amount | 2 |
| Drivetrain | |
|---|---|
| Brakes | Service: Hydraulic Brake Parking: Multiple Brake |
| Gradeability | Up to 50% |
| Alternator | 2 x 140 A |
| Track Rollers | 3 Top (each side) 8 Bottom (each side) |
| Track Adjuster | Automatic hydraulic type |
| Hydraulic | |
|---|---|
| Pump | 8 identical swash plate pumps |
| Hydraulic System | The power train consists of two main drives. Each of the two gearboxes drives four identical main pumps which draw hydraulic oil from an unpressurized hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency. |
| Hydraulic Flow | The four-circuit systems feature a load-limiting governor with oil delivery summation to the working circuits and incorporates pressure cut-off control. Hydropilot prioritizes hydraulic flow giving smooth hydraulic response, simple hydraulic system layout, and a reduced number of components. The hydraulic system includes large swing-out vertical air-to-oil hydraulic coolers with temperature-regulated hydraulically driven fans. |
| Relief Valve Setting | 4,495 PSI |
| Operational | |
|---|---|
| Bucket Capacity | 55 yd³ |
| Travel Speed - Forward | 1.5 MPH |
| Frequency | Standard: 60 Hz @ 1800 RPM Option: 50 Hz @ 1500 RPM |
| Swing Speed | 2.7 RPM |
| Track Shoes | 49 (each side) |
| Swing Brake | Dynamic: Hydraulic brake Parking: Multiple-disc |
| Swing Ring Teeth | External |
| Swing Flow Rate | 273 GPM |
| Swing System | 3 Hydraulic motors and swing gears |
| Battery | |
|---|---|
| Voltage | 6,000-7,200 V |
| Amps | 2 x 155A – 2 x 128 A |
| Battery | 8 x 12 V |
| Electrical | |
|---|---|
| Lighting | Standard working lights: 14 LED lights Standard service lights: Throughout the platform including emergency egresses and stairways |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC8000-11 |
