New LaBounty HDR 70 Grapples for Sale

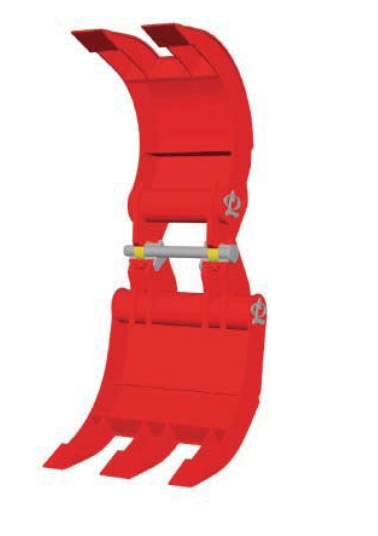

HDR Grapples are designed for rugged use with a two-tine, movable upper half and a three-tine stationary lower. This grapple is the original workhorse of the industry and extremely versatile, proving itself as the preferred tool in demolition (both residential and industrial), scrap handling, rock handling, waste handling and land clearing.

7 HDR Grapple models are available for carriers from 25,000 - 180,000 lbs. (11,340 - 81,648 kg). They are used for waste handling, refuse, and large volumes of loose materials.

HDR Grapples come in 3 basic configurations:

The HDR Standard Mount is designed with multi-machine mounts, capable of fitting to several model excavators within the same weight class by simply changing out the mounting kit (pins, bushings& spacers).

The HDR Custom Mount is designed for a specific excavator linkage (not encompassed by the standard lug design) or custom bucket linkage that is out of the ordinary.

The HDR Quick Coupler Mount is designed to capture most manufacturer's standard pin quick couplers and function with direct pin on as well. (Grapple with or without coupler.) Profile quick couplers also available.
Dimensions
Width Upper Jaw: 32 in. (813 mm)
Lower Jaw: 48 in. (1,219 mm)
Weight 5,700 lbs. (2,586 kg)
Height-Open 116 in. (2,946 mm)
Height-Closed 10 in. (254 mm)
Operational
Number of Tools/Teeth 2 upper / 3 lower
Tractor Size 65,000 - 88,000 lbs. (29.5 - 39,917 kg)

Features:

  • Heavy duty mounting lugs reduce wear on bearings from side loads during operation
  • Replaceable hardened tine tips for increased wear resistance and reduced downtime for hard surfacing
  • Box tine design and use of high tensile, high alloy, abrasion resistant steel creates a lightweight, maximum strength tool where each tool can withstand the full breakout force of the excavator
  • The internal and external roll plates cover the side plate welds protecting them from wear
  • Pivot group features a hardened pin and heat treated bronze bearing
  • Utilize spool assemblies to reduce pin stress and distribute workloads to the grapple structure
  • Compatible with many quick coupling systems

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE LaBounty
MODEL HDR 70
