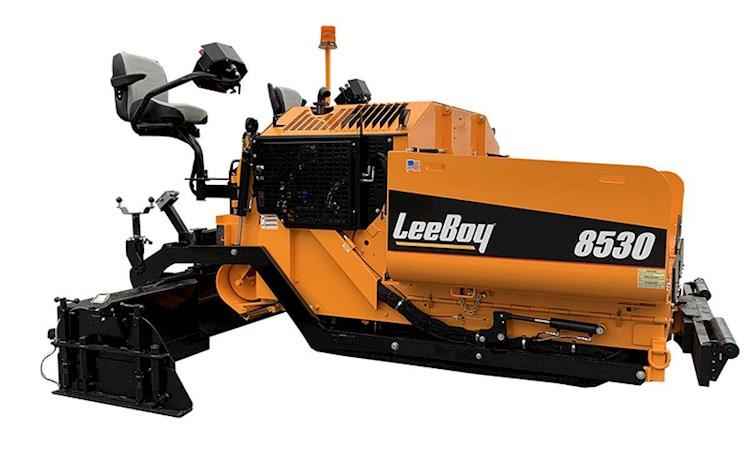

New LeeBoy 8530 Asphalt Paver for Sale LeeBoy has set the standards in heavy-commercial paving even higher! Equipped with exciting new features that were truly designed with the paving professional in mind, the LeeBoy 8530 is the new benchmark. Standard machine assets include the 4,150 lbs Legend HD PRO Screed with spring-loaded end gates, front adjustable conveyor chains, pivoting dual seating and controls as well as many other enhancements. And as always, LeeBoy’s wide slow-moving conveyor system moves material from the truck to the screed without segregation which ensures a flawless mat. Key Features
Job Applications
|
| Dimensions | |
|---|---|
| Length | 15’ (4.57 m) |
| Width | 8’ 6” (2.59 m) transport 10’ (3.05 m) hopper wings down |
| Height | 6’ 8” (2.02 m) low deck 7’ 9” (2.37 m) high deck |
| Weight | 22,520 lbs. (10,215 kg) (with screed) |
| Engine | |
|---|---|
| Engine Type | Kubota turbocharged diesel |
| Fuel Tank Capacity | 32 gallons |
| Engine/Drivetrain | |
|---|---|
| Engine Make | Kubota turbocharged diesel |
| Horsepower | 125 HP |
| Steering | Dual electronic steering controls Machine can be controlled from a high deck position or lowered to control at the screed Electronically controlled pumps operate the forward/reverse motion from dual joysticks |
| Emission Standards | Tier 4 Final |
| Washdown System | Electric HD pump with two hose reels with 15' X .3125" (4.572m x 8 mm) diameter hose |
| Track Drive System | Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, seven rollers and hydraulically adjustable front idler Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a keypad button |
| Hydraulic | |
|---|---|
| Hydraulic System | Variable volume hydraulic pumps for each drive Independent constant volume pumps for augers, conveyors, cylinders and charge Hydraulic reservoir: 25 gallons (94.6 l) Hydraulic oil: all weather, all temperature Dual 77,000 BTU oil coolers |
| Hydraulic Tank | 25 gal |
| Operational | |
|---|---|
| Brakes | Fail Safe Breaks |
| Paving Speed | 0 to 150’ per minute (1.7 mph) |
| Travel Speed - Forward | 0 to 300’ per minute (3.4 mph) |
| Holding Capacity | 9 ton (8,164 kg) |
| Push Rollers | Two 3" (0.076 m) diameter rollers with sealed bearings mounted on a swivel frame Vertically adjustable push rollers, 7” (.178 m) of height adjustment Built in material scraper on each push roller |
| Material Augers | Two independent, hydraulically driven, segmented augers. Operated automatically or manually Augers are reversible Variable speed from 0-173 rpm Quick change auger assemblies |
| Under Auger Material Cutoff | Two independent hydraulically operated 4' ( 1.219 m) wide gates located under the augers and constructed of .375" (9.53 mm) A-36 plate steel |
| Paving | |
|---|---|
| Paving Width | Up to 15’ 6” (4.72 m) |
| Paving Depth | 0 to 8” (203 mm) |
| Screed | Legend HD PRO screed standard, weight: 4,150 lbs (1,886 kg) Legend HD PRO full free floating 96” (2.44 m) main screed Consist of a 18” (.457 m) deep main screed Constructed of .375” (9.52 mm) HARDOX 450 bolt-on wear plates for easy placement Wear plate has bullnose on front Rear wear plate adjustment Adjustable strike offs |
| Screed End Gates | Spring-loaded end gates Equipped with vertical height adjustments and tilt with replaceable wear shoes |
| Screed Extensions | Two 46” (1.16 m) x 9” (229 mm) hydraulically operated screed extensions |
| Screed Heat | Legend HD PRO Screed, electric heat 14.4 kw generator Electric timer and automatic temperature control (ATC) Automatic RPM control system Environmentally safe, sealed S-curve elements in main screed and sealed, blade-style elements in extensions |
| Screed Vibration | Equipped with two electric vibrators producing 70lbs of force each 4,100 rpm, each vibrator |
| Screed Crown/Invert | Equipped with a crown/invert adjustment allowing at least 2.5" (0.063 m) of crown and 1.5" (0.038 m) of valley Includes a levelling indicator for the operator to know when the screed is level |
| Screed Controls | Screed control boxes are on each side and contain extensions, cutoffs, auger, tow, horn, e-stop and slope |
| Track Size | 14” wide x 87” long (.360 x 2.2 m) poly 7 rollers OR Rubber Track Option: 15.75” wide x 87” long (.400 x 2.2 m) rubber 7 rollers |
| Hopper | |
|---|---|
| Hopper Capacity | 9 ton (8,164 kg) |
| Hopper Height | 31.75” (0.806 m) |
| Hopper Wings | Heavy-duty .5” (12.7 mm) with large radius corners |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | LeeBoy |
| MODEL | 8530 |
