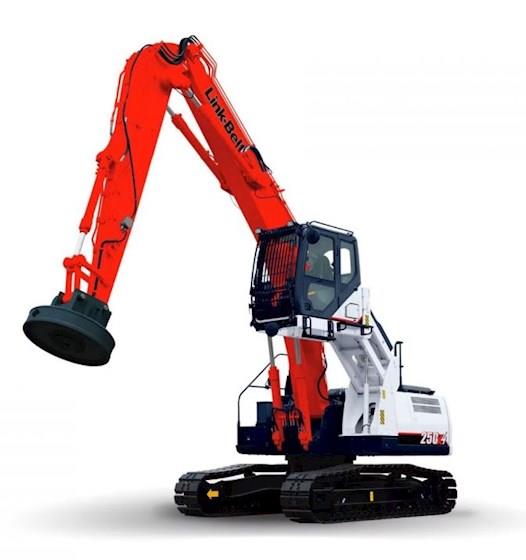

New Link-Belt 250 X4 MH Material Handler Excavator for Sale Link-Belt material handling equipment has a proven record in the harshest, most demanding applications. These purpose-built machines feature heavy-duty, high-wide undercarriages, oversized turn tables, and larger drive motors for dependable, long life service. Depending on the application, Link-Belt material handlers can be equipped with a variety of specialized attachments and components to be fit-up to your needs. |
| Body | |
|---|---|
| Cab | OPS and FOPS Level 1 certified with automatic climate control A/C and heat with defroster, 7″ LCD Hi-Definition color monitor with full time rear view camera display, fuel efficiency gauge, low-effort joysticks are pre-wired for auxiliary hydraulics, dual cab lights, control pattern changer, safety glass windows, sunroof with sunshade, shockless cab suspension with four fluid cab mounts, SCM High-Back reclining suspension seat, sliding 4-position tilting control consoles, Bluetooth technology, AM/FM sound system with USB and MP3 auxiliary input jack, digital clock, dome light, seat belt, coat hook, cup holder, storage compartments, floor mat, footrests, ashtray, 24V cigarette lighter, 12V outlet, travel alarm, handrails, mirrors, side-entry cab filter, spare parts kit.Three selectable work modes, RemoteCARE® Telematics GPS system, anti-theft password protection system, onboard self-diagnostic system with memory and service interval reminders, auto idling system, one-touch decelerator, autoidle engine shutdown, auto-power boost, neutral safety start, gate-lock safety shutoff |
| Controls | Three selectable work modes, RemoteCARE® Telematics GPS system, anti-theft password protection system, onboard self-diagnostic system with memory and service interval reminders, auto idling system, one-touch decelerator, autoidle engine shutdown, auto-power boost, neutral safety start, gate-lock safety shutoff. |
| Dimensions | |
|---|---|
| Length | 15’4”-33’7” |
| Width | 10’6” |
| Height | 11’ |
| Weight | 75,000 lbs. |
| Fuel Tank Capacity | 108 Gallons |
| Depth | 11'10" |
| Maximum Reach Ground | 37’5” |
| Engine | |
|---|---|
| Engine Make | Izuzu |
| Engine Model | AQ-4HK1X |
| Engine Type | Final Tier 4 Turbocharged Diesel Engine |
| Cylinders | 4 |
| Net Horsepower | 177 HP |
| Cooling | water-cooled |
| Displacement | 317 cu in |
| Torque | 458 lbf-ft @ 1800 RPM |
| Rated RPM | 2000 RPM |
| DEF Tank Capacity | 31.7 Gallons |
| Drivetrain | |
|---|---|
| Starter | 24 V (5.0 kW) |
| Gradeability | 70% (35°) |
| Drawbar Pull | 44,100 lbf |
| Alternator | 50 amp |
| Track Rollers | 9 per side |
| Ground Pressure | 9.7 PSI (Linkage Style Attachment) 9.6 PSI (Droop Nose Attachment) |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump | Pump Output: 2 x 61.8 GPM Pilot Pump Maximum Flow: 5.3 GPM Magnet Pump: 18 GPM |
| Hydraulic Tank Capacity | 39 Gallons |
| Hydraulic System | Open-center system, two variable-displacement electronically controlled axial-piston pumps, one axial-piston pump for magnet and one gear pump for pilot controls, main control valve with one 4-spool section and one 5-spool section with auxiliary spool: stackable, Auxiliary Control System, oil cooler, Auto-Power boost, boom and arm holding valves, 6 micron return filter, firewall, hydraulic oil sample port. |
| Hydraulic Cylinders | Number of cylinders-bore x stroke Boom: 2-5.5” x 44.3” Arm: 2-4.9” x 50.4” Bucket (linkage style): 4.7” x 39.8” Cab elevating: 3.3” x 31.5” |
| Relief Valve Setting | Boom/Arm/Bucket: 4,970 PSI In Power Boost: 5,410 PSI Swing Circuit: 3,910 PSI Travel Circuit: 4,970 PSI |
| Operational | |
|---|---|
| Travel Speed - Forward | 2.2-3.4 MPH |
| Maximum Reach | Linkage Style Attachment-38’0” |
| Swing | Planetary reduction powered by axial-piston motor, Internal ring gear with grease cavity for swing pinion, Swing bearing is single-row, shear type ball bearing, Mechanical disc swing brake, Auto-power swing. |
| Swing Torque | 51,500 lfb-ft |
| Swing Speed | 11.0 RPM |
| Track Link Pitch | 7.48” |
| Shoes | 51 per side |
| Shoe Width | 23.6” |
| Max. Work Height | 41’7” |
| Tail Swing | 9'8” |
| Battery | |
|---|---|
| Battery | (2) 12-volt 92 amp hours |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 250 X4 MH |
