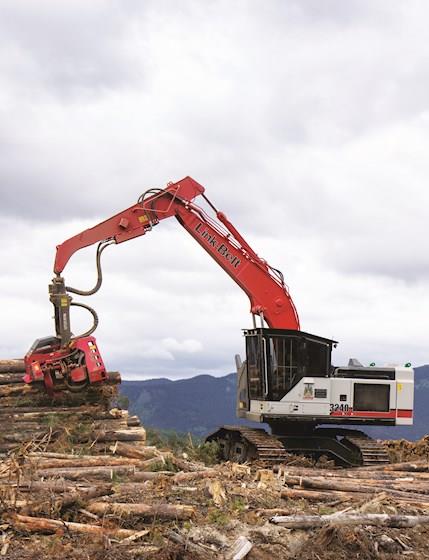

Link-Belt 3240 PH

Link-Belt 3240 PH

New Link-Belt 3240 PH Excavator for Sale

Link-Belt Forestry machines are designed and built with you in mind. Whether you’re pioneering sites, building access roads, harvesting timber, processing logs or loading trucks at the mill yard, we’ve got the right equipment for the job. The new Link-Belt 3240 forestry machine features a powerful, fuel-efficient Final Tier 4 engine that doesn’t require a DPF, matched to a larger fuel tank that keeps you working longer. 3240 foresty machines offer improved cycle times, improved swing torque, and better fuel economy. This attention to detail insures that Link-Belt Forestry machines deliver outstanding performance and productivity where it matters most. We focus on the machine so you can focus on your work.

  • Oregon OSHA/ROPS/WCB-certified cabs are 8082-2 compliant; available with sky roof and escape hatch. Choose rear-entry or side-entry cabs and risers; impact-resistant polycarbonate windows.
  • 7” high-definition color monitor; full-time rear-view camera is standard. RemoteCARE® telematics keeps a watchful eye on performance, maintenance intervals and theft deterrence.
  • Superior maneuverability and fine control, with dedicated control valve for application and forestry-exclusive circuit for arm-in-arm regeneration and arm-2 spool.
  • Convenient ticket slot; operator doesn’t have to bend down to hand the truck driver a log ticket.
  • Faster cycle time and attachment speed:
    • Faster boom-down/arm-in
    • Faster boom up/swing
    • Swing torque increase
    • Increased lifting capacity due to wider lifting area and rear-mounted counterweight
  • Heavy-duty components built for the woods include house doors; covers; protective guards; redesigned undercarriage; reinforced boom foot revolving frame; factory-fabricated attachment with optimized heel.
  • Tough, field-repairable parts include 3-pc. steel engine hood; add-on hockey stick; LED lights and no-bolt oil filler.
  • Servicing is a snap, with convenient access to all routine service points, including sample ports for engine and hydraulic oil. All service ports can be accessed via hand-turn knobs, no tools needed.
Dimensions
Length 15’3”-31’5”
Width 11’6”
Height 11’11”
Weight 72,170 lbs.
Fuel Tank Capacity 216 gallons
Depth 13’6”
Maximum Reach Ground 28’0”
Engine
Engine Make Isuzu
Engine Model AR-4HK1X
Engine Type Final Tier 4 turbocharged diesel engine
Cylinders 4
Net Horsepower 160 HP
Cooling Water-cooled
Displacement 317 cu in
Torque 457 lbf-ft @ 1600 rpm
Rated RPM 1800 RPM
DEF Tank Capacity 31.7 Gallons
Drivetrain
Starter 24V-5.0kW
Gradeability 70% (35°)
Drawbar Pull 51,700 lbf
Alternator 85 amp
Track Rollers 8 per side
Ground Pressure 7.83 PSI
Carrier Rollers 2 per side
Hydraulic
Pump Maximum Flow: 2 x 55.7 GPM
Pilot Pump Maximum Flow: 4.8 GPM
Hydraulic Tank Capacity 39 gallons
Relief Valve Setting Boom/arm/tool: 4,970 PSI
Swing Circuit: 4,190 PSI
Travel: 4,970 PSI
Hydraulic Oil Filtration Return filter: 6 micron
Pilot filter: 8 micron
Suction screen: 105 micron
Auxiliary drain line filter: 8 micron
Operational
Travel Speed - Forward 1.7-2.9 MPH
Maximum Reach 28’10”
Tail Swing Radius 10’1”
Swing Planetary reduction powered by axial piston motor. Internal ring gear with grease cavity for swing pinion. Swing bearing is single-row shear type ball bearing. Mechanical disc swing brake. Auto power swing. Free swing control.
Swing Torque 55,170 lbf-ft
Swing Speed 0-10.5 RPM
Track Link Pitch 8.0”
Shoes 48 per side
Shoe Width 27.5”
Max. Work Height Max: 32’7”
Max log level: 24’7”
Tail Swing 10’6”
Battery
Battery (2) 12-volt 92 amp hours

CAB

  • LED exterior lights
  • Key fob with remote machine light-up functionality; (2) riser step, (3) cab
  • SCM air-suspension heated seat, sliding/ reclining, adjustable armrests, lumbar support, retractable seat belt, +/- 5 degree tilt
  • 4-position tilting consoles with memory position and hydraulic lock-out
  • Auto climate control a/c & heat, defrost
  • Sirius® Satellite ready sound system w/ AM/FM, MP3 port, USB port, dual speakers & mute button
  • Job ticket slot, cup holder, 12-volt accessory outlet, digital clock, 24-volt cigarette lighter, ashtray, dome light, coat hook, high output dual horn, floor mat
  • 2-position LED swivel map lights w/ red ambient illumination for safety & night vision compatibility
  • High definition LCD monitor w/ full color 7˝ display
  • Anti-theft device
  • Single motor dual arm intermittent/continuous windshield wiper w/ washer
  • Single pedal travel
  • Travel alarm with cancellation switch
  • CB radio & antenna mounting provision
  • Vandal locks with common key
  • On-board diagnostic system
  • Rear view camera (full time display)
  • RemoteCARE – telematics
  • 2-position sun shade

ENGINE

  • EPA Tier IV Isuzu diesel engine, no DPF system to maintain
  • Three selectable work modes
  • 85 amp alternator
  • Common rail fuel injection
  • Turbocharger with intercooler
  • Neutral safety start
  • Idle start
  • Glow plug pre-heat
  • Auto engine warm-up
  • Auto idling system
  • One-touch idle
  • Dual remote fuel filters with water separation
  • Double element air filter with in-cab restriction indicator (SE only)
  • Remote, full-flow engine oil filter
  • Green plug engine oil drain
  • EPF Engine Protection
  • Emergency engine stop
  • Engine oil & hydraulic oil sample ports
  • Battery disconnect switch

HYDRAULICS

  • Open-center hydraulic system
  • Auto swing priority
  • Auxiliary hydraulics for open/close/rotate
  • Pre-set auxiliary pump settings
  • Control levers pre-wired for auxiliary
  • Two-speed with auto shift & straight travel
  • Attachment cushion valve
  • Boom regeneration
  • Boom and arm holding valves
  • Centralized lube banks

UNDERCARRIAGE

  • Sealed and lubricated track chain
  • Forestry-style upper roller brackets w/ scrapers
  • Planetary drive
  • Spring-applied, hydraulic release brake
  • 27.5˝ (700 mm) 2-bar grouser
  • Full-length track guards (2 piece, bolt-on)
  • HD purpose-built swivel guard belly pan
  • HD purpose-built upper belly pans
  • HD purpose-built reinforced frame (upper & lower)
  • HD purpose-built travel motor covers

UPPERSTRUCTURE

  • Rear mounted fuel tank
  • HD purpose-built pump & radiator doors
  • HD purpose-built tank skin
  • HD purpose-built full length catwalks w/ non-skid edge treatment- welded
  • HD purpose-built turntable bearing & swing motor
  • RH corner guard w/ (2) lights & (2) horns
  • Non-skid surface pads
  • 9,150 lbs (4 150 kg) Forestry counterweight
  • ISO compliant guard and hand rails along upper structure
  • Large RH storage box

ATTACHMENT

  • HD boom cylinder guard
  • Arm cylinder guards (TL)

CAB

  • Oregon OSHA/ROPS/WCB compliant side-entry forestry cab with sky roof and escape hatch
  • Oregon OSHA/ROPS/WCB compliant rear-entry forestry cab with 48˝ hydraulic tilting riser; only available when equipped with B-N-T arm.
  • 1/2˝ front window polycarbonate
  • 1-1/4˝ front window polycarbonate – LBX requires 1-1/4” front window polycarbonate for all machines with a processing head installed.

HYDRAULICS

  • Hydraulic reversible fan

UNDERCARRIAGE

  • 27.5˝ (700 mm) single-bar grouser
  • 27.5˝ (700 mm) 3-bar grouser

UPPERSTRUCTURE

  • “Hockey Stick” guard for RH front corner guard

ATTACHMENT

  • Log loader attachment equipped w/ live-heel (TL)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
