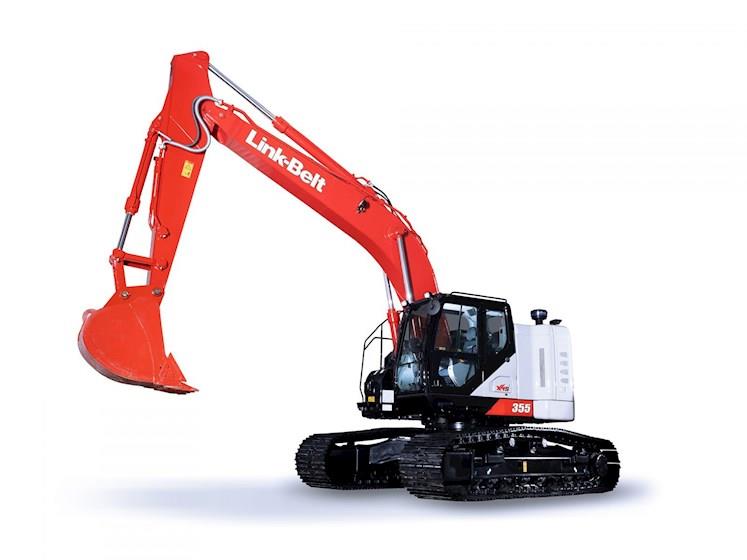

New Link-Belt 355 X4S Excavator for Sale Link-Belt X4S excavators are Final Tier 4-certified, and built to save money on fuel without sacrificing power. Find out why they are the Ultimate Machine. |
| Body | |
|---|---|
| Cab | ROPS and FOPS Level 1 certified with automatic climate control A/C and heat with defroster, 10″ LCD Hi-Defi nition color monitor with customizable shortcut switches featuring a full time rear view camera display and right view camera, fuel efficiency gauge, custom fl ow control, joysticks are pre-wired for auxiliary hydraulics, knob switch customization, dual halogen cab lights with programmable delay turn off, safety glass windows, sunroof with sunshade, shockless cab suspension with four fluid cab mounts, SCM High-Back reclining air-suspension seat with heat & tilt, sliding 4-position tilting control consoles, Bluetooth technology, AM/FM sound system with USB and MP3 auxiliary input jack, digital clock, dome light, seat belt, coat hook, 2 cup holders, storage compartments, floor mat, footrests, smart phone tray, 24V socket, 12V outlet, travel alarm, handrails, mirrors, side-entry cab filter, spare parts kit. Four selectable work modes (SP, Power, Eco, & Lift), RemoteCARE Telematics GPS system, anti-theft password protection system, onboard self-diagnostic system with memory and service interval reminders, auto idling system, one-touch decelerator, auto-idle engine shutdown, neutral safety start, gate-lock safety shutoff, top guard OPG level 1 in cab structure. |
| Undercarriage | 16’4” Sealed and strutted track chain with double track guide, Sealed rollers and idlers, Disc type brakes, Adjustable track tension, swivel guard |
| Dimensions | |
|---|---|
| Width | 11’2” |
| Height | 11’4” |
| Operating Weight | 78,709 lbs. |
| Fuel Tank Capacity | 100 Gallons |
| Maximum Reach Ground | 34’8” (Arm 10’5”) 33’2” (Arm 8’8”) 36’4” (Arm 12’) |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-6HK1X |
| Engine Type | Final Tier 4 turbocharged diesel engine w/electronic control (ECM) and high pressure common-rail fuel injection |
| Cylinders | 6 |
| Net Horsepower | 205 HP |
| Cooling | Water-cooled |
| Displacement | 475 cu. in. |
| Torque | 626 lbf-ft @ 1500 RPM |
| DEF Tank Capacity | 11 Gallons |
| Drivetrain | |
|---|---|
| Starter | 24 V – 5.0 kW |
| Gradeability | 70% |
| Drawbar Pull | 60,100 lbf |
| Alternator | 90 amp |
| Track Rollers | 8 per side |
| Ground Pressure | 7.3 PSI |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump | 2 x 64.2 GPM (Output) |
| Hydraulic Tank Capacity | 43 Gallons |
| Hydraulic System | Open-center system, (2) variable displacement axial piston pumps, (1) gear pump for pilot controls. Main control valve with one 4-spool valve and one 5-spool valve with auxiliary spool. Internal anti-drift valves for boom and arm, Oil cooler, High performance 6-micron full flow return filter, 8-micron pilot filter, firewall and hydraulic free swing. |
| Hydraulic Flow | 7.1 GPM |
| Hydraulic Cylinders | Number of cylinders – bore x stroke Boom: 2 – 5.5” x 57.5” Arm: 1 – 5.9” x 65” Bucket: 5.3” x 42.4” |
| Relief Valve Setting | Boom Up/Arm/Bucket: 4970 PSI In Power Boost: 5410 PSI Swing Circuit: 4410 PSI Travel Circuit: 4970 PSI |
| Operational | |
|---|---|
| Dig Depth | 22’10” (Arm 10’5”) 21’1” (Arm 8’8”) 24’5” (Arm 12’) |
| Dig Height | 36’8” (Arm 10’5”) 35’11” (Arm 8’8”) 37’11” (Arm 12’) |
| Bucket Digging Force | 42,780 lbf |
| Dump Height | 26’7” (Arm 10’5”) 25’10” (Arm 8’8”) 27’10” (Arm 12’) |
| Bucket Capacity | 0.8-2.43 yd³ |
| Travel Speed - Forward | 1.7-2.7 MPH |
| Maximum Reach | 35’4” (Arm 10’5”) 33’10” (Arm 8’8”) 36’11” (Arm 12’0”) |
| Swing | Planetary reduction powered by axial-piston motor, Internal ring gear with grease cavity for swing pinion, Swing bearing is single-row, shear type ball bearing, Mechanical disc swing brake, Auto-power swing |
| Max. Arm Digging Force | 31,280 lbf |
| Swing Torque | 67,900 lbf-ft. |
| Swing Speed | 10.2 RPM |
| Track Link Pitch | 8.5” |
| Shoes | 48 per side |
| Shoe Width | 31.5” |
| Track Gauge | 8’6” |
| Tail Swing | 6’6” |
| Bucket Rotation | 176° |
| Battery | |
|---|---|
| Battery | (2) 12-volt 128 amp hours |
CAB
ENGINE
HYDRAULICS
UNDERCARRIAGE
UPPERSTRUCTURE
ATTACHMENT
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 355 X4S |
