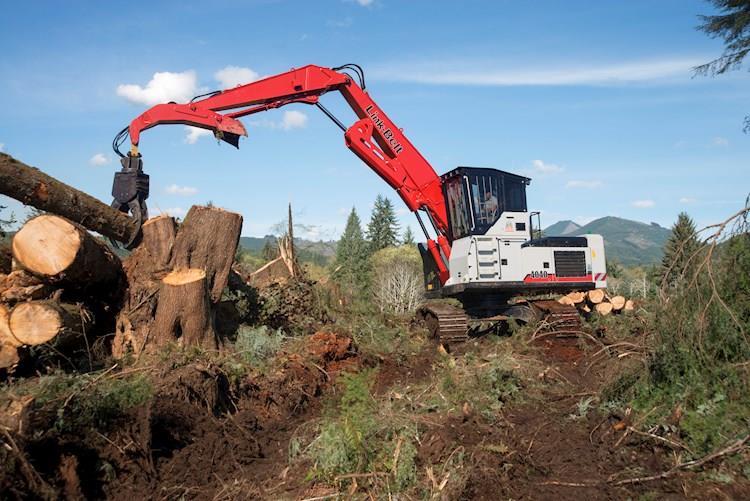

New Link-Belt 4040 TL Excavator for Sale

Link-Belt Forestry machines are designed and built with you in mind. Whether you’re pioneering sites, building access roads, harvesting timber, processing logs or loading trucks at the mill yard, we’ve got the right equipment for the job. The new Link-Belt 4040 forestry machine features a powerful, fuel-efficient Final Tier 4 engine that doesn’t require a DPF, matched to a 50% larger fuel tank that keeps you working longer. 4040 foresty machines offer up to 18% improved cycle times, best-in-class swing torque, 17% draw bar pull increase and up to 16% better fuel economy. This attention to detail insures that Link-Belt Forestry machines deliver outstanding performance and productivity where it matters most. We focus on the machine so you can focus on your work.

  • Oregon OSHA/ROPS/WCB-certified cabs are 8082-2 compliant; available with sky roof and escape hatch. Choose rear-entry or side-entry cabs and risers; impact-resistant polycarbonate windows.
  • 7” high-definition color monitor; full-time rear-view camera is standard. RemoteCARE® telematics keeps a watchful eye on performance, maintenance intervals and theft deterrence.
  • Superior maneuverability and fine control, with dedicated control valve for application and forestry-exclusive circuit for arm-in-arm regeneration and arm-2 spool.
  • Convenient ticket slot; operator doesn’t have to bend down to hand the truck driver a log ticket.
  • Faster cycle time and attachment speed:
    • 20% faster boom-down/arm-in
    • 10% faster boom up/swing
    • 7% swing torque increase
    • Up to 10% bonus lifting capacity due to wider lifting area and rear-mounted fuel tank.
  • Heavy-duty components built for the woods include house doors; covers; protective guards; redesigned undercarriage; reinforced boom foot revolving frame; factory-fabricated attachment with optimized heel.
  • Tough, purpose-built guarding includes 3-pc. steel engine hood; add-on hockey stick; LED lights and no-bolt oil filler.
  • Servicing is a snap, with convenient access to all routine service points, including sample ports for engine and hydraulic oil. All service ports can be accessed via hand-turn knobs, no tools needed.
Dimensions
Length 16’5”-49’5”
Width 11’9”
Height 12’
Weight 92,175 lbs. (Side-entry forestry cab High Narrow Undercarriage)
92,193 lbs. (Side-entry forestry cab High Wide Undercarriage)
93,659 lbs. (Rear-entry forestry cab High Narrow Undercarriage)
93,677 lbs. (Rear-entry forestry cab High Wide Undercarriage)
Fuel Tank Capacity 216 gallons
Depth 14’11” (High-Narrow)
15’ (High-Wide)
Maximum Reach Ground 40’2”
Engine
Engine Make Isuzu
Engine Model AQ-6HK1X
Engine Type Final Tier 4 turbocharged diesel engine
Net Horsepower 207 HP
Displacement 7.8 L
Torque 626 lbf-ft @ 1500 rpm
Rated RPM 1800 RPM
DEF Tank Capacity 31.7 Gallons
Drivetrain
Starter 24V-5.0kW
Gradeability 70% (35°)
Drawbar Pull 69,465 lbf
Alternator 90 amp
Track Rollers 8 per side
Ground Pressure 9.57 psi
Carrier Rollers 2 per side
Hydraulic
Pump Maximum flow: 2 x 64.2 GPM
Pilot pump maximum flow: 7.1 GPM
Auxiliary pump maximum flow: 9.7 GPM
Hydraulic Tank Capacity 39 gallons
Relief Valve Setting Boom/arm/tool: 4,970 PSI
Swing circuit: 4,410 PSI
Travel: 4,970 PSI
Hydraulic Oil Filtration Return filter: 6 micron
Pilot filter: 8 micron
Suction screen: 105 micron
Operational
Travel Speed - Forward 1.5-2.5 mph
Maximum Reach 40’9”
Tail Swing Radius 11’6”
Swing Torque 82,656 lbf-ft
Swing Speed 0-8.5 rpm
Track Link Pitch 8.50”
Shoes 48 per side
Shoe Width 27.5”
Max. Work Height Max: 15’ (High-Wide)
Max: 14’11” (High-Narrow)
Max log level: 31’ (High-Wide)
Max log level: 30’8” (High-Narrow)
Tail Swing 11’6”
Battery
Battery (2) 12-volt 128 amp hours

CAB

  • LED exterior lights.
  • Key fob with remote machine lightup functionality; (2) riser step, (3) cab
  • SCM air-suspension heated seat, sliding/reclining, adjustable armrests, lumbar support, retractable seat belt, +/- 5 degree tilt
  • 4-position tilting consoles with memory position and hydraulic lock-out
  • Auto climate control a/c & heat, defrost
  • Sirius® Satellite ready sound system w/ AM/FM, MP3 port, USB port, dual speakers & mute button
  • Job ticket slot, cup holder, 12-volt accessory outlet, digital clock, 24-volt cigarette lighter, ashtray, dome light, coat hook, high output dual horn, floor mat
  • 2-position LED swivel map lights w/red ambient illumination for safety & night vision compatibility
  • High definition LCD monitor w/ full color 7˝ display
  • Anti-theft device
  • Single motor dual arm intermittent/continuous windshield wiper with washer
  • Single pedal travel
  • Travel alarm with cancellation switch
  • CB radio & antenna mounting provision
  • Vandal locks with common key
  • On-board diagnostic system
  • Rear view camera (full time display)
  • RemoteCARE – telematics
  • 2-position sun shade

ENGINE

  • EPA Tier IV Isuzu diesel engine, no DPF system to maintain
  • Three selectable work modes
  • 90 amp alternator
  • Common rail fuel injection
  • Turbocharger with intercooler
  • Neutral safety start
  • Idle start
  • Glow plug pre-heat
  • Auto engine warm-up
  • Auto idling system
  • One-touch idle
  • Dual remote fuel filters with water separation
  • Double element air filter with in-cab restriction indicator (SE only)
  • Remote, full-flow engine oil filter
  • Green plug engine oil drain
  • EPF Engine Protection
  • Emergency engine stop
  • Engine oil & hydraulic oil sample ports
  • Battery disconnect switch

HYDRAULICS

  • Open-center hydraulic system
  • Auto swing priority
  • Auxiliary hydraulics for open/close/rotate
  • Pre-set auxiliary pump settings
  • Control levers pre-wired for auxiliary
  • Two-speed with auto shift & straight travel
  • Attachment cushion valve
  • Boom regeneration
  • Attachment anti-drift valves
  • Centralized lube banks

UNDERCARRIAGE

  • Sealed and lubricated track chain
  • Forestry-style upper roller brackets w/ scrapers
  • Planetary drive
  • Spring-applied, hydraulic release brake
  • Full-length track guards (2 piece, bolt-on)
  • HD purpose-built swivel guard belly pan
  • HD purpose-built upper belly pans
  • HD purpose-built reinforced frame (upper & lower)
  • HD purpose-built travel motor covers

UPPERSTRUCTURE

  • Rear mounted fuel tank
  • HD purpose-built pump & radiator doors
  • HD purpose-built tank skin
  • HD purpose-built full length catwalks w/ non-skid edge treatment- welded
  • HD purpose-built turntable bearing & swing motor
  • RH corner guard w/ (2) lights & (2) horns
  • Non-skid surface pads
  • 14,200 lbs (6 450 kg) Forestry counterweight
  • ISO compliant guard and hand rails along upper structure
  • Large RH storage box

ATTACHMENT

  • HD boom cylinder guard
  • Arm cylinder guards (TL)

CAB

  • Oregon OSHA/ROPS/WCB compliant side-entry forestry cab with sky roof and escape hatch
  • Oregon OSHA/ROPS/WCB compliant rear-entry forestry cab with 48˝ hydraulic tilting riser; only available when equipped with B-N-T arm.
  • 1/2˝ front window polycarbonate
  • 1-1/4˝ front window polycarbonate LBX requires 1-1/4” front window polycarbonate for all machines with a processing head installed.

HYDRAULICS

  • Hydraulic reversible fan

UNDERCARRIAGE

  • 27.5˝ (700 mm) single-bar grouser
  • 27.5˝ (700 mm) 2-bar grouser
  • 27.5˝ (700 mm) 3-bar grouser

UPPERSTRUCTURE

  • “Hockey Stick” guard for RH front corner guard

ATTACHMENT

  • Log loader attachment equipped with live-heel (TL)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
