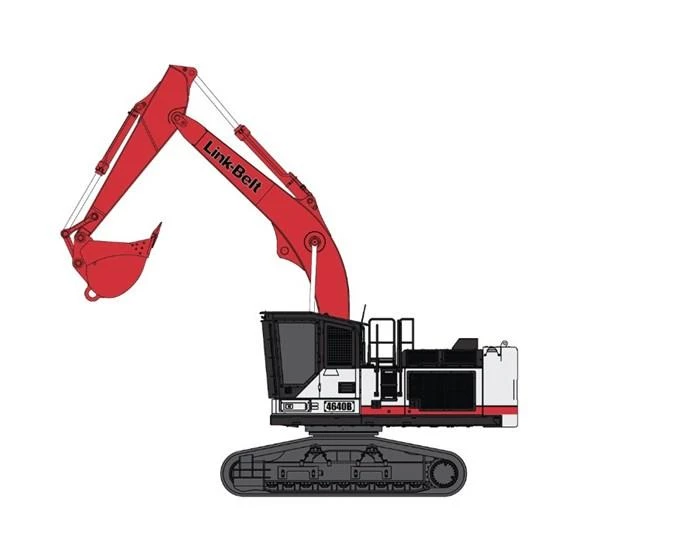

Link-Belt 4640B RB Excavator for Sale Link-Belt Forestry machines are designed and built specifically for the work you do…whether it’s building access roads, harvesting timber in the woods or processing logs in the millyard. We design and build machines that are perfectly matched to those applications and more. The enhanced 40B Series showcases improved durability, productivity, serviceability, and overall safety. |
| Dimensions | |
|---|---|
| Length | 36’10.1” |
| Width | 11’11.3” |
| Height | 12’9.75” |
| Operating Weight | 96,300 lbs. |
| Fuel Tank Capacity | 216 Gallons |
| Final Drive | 2.6 Gallons |
| Vertical Wall Depth | 15’1.5” |
| Engine | |
|---|---|
| Engine Make | ISUZU |
| Engine Model | AQ-6HK1X |
| Horsepower | 268 HP |
| Displacement | 475 cu in |
| Torque | 729 lbf-ft |
| Cooling System Capacity | 10.0 Gallons |
| Engine Oil Capacity | 12.7 Gallons |
| DEF Tank Capacity | 40 Gallons |
| Travel Speed | 1.9-3.1 MPH |
| Drivetrain | |
|---|---|
| Starter | 24V-5.0kW |
| Gradeability | 70% (35°) |
| Drawbar Pull | 69,100 lbf |
| Alternator | 90 amp |
| Track Rollers | 9 per side |
| Ground Pressure | 9.7 PSI |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump | Main pumps – 2 variable displacement axial piston pumps with regulating system Pilot Pump – 1 Gear Pump Aux. Pump – 1 Gear pump |
| Hydraulic Tank Capacity | 46 Gallons (Sump) |
| Hydraulic Cylinders | Number of Cylinders – Bore x Rod Diameter x Stroke Boom: 2 – 5.71” x 3.94” x 58.86” Arm: 1 – 6.69” x 4.72” x 68.82” Bucket: 1 – 5.91” x 4.13” x 47.64” |
| Hydraulic System Capacity | 92 Gallons |
| Max Oil Flow | Max: 2 x 79.3 gpm Pilot: 7.5 gpm Aux.: 9.2 gpm |
| Working Circuit Pressure | Main Pumps: --Boom/Arm/Bucket & Travel Circuit: 4970 PSI --Swing Circuit: 4270 PSI Pilot: 570 PSI Aux: 2990 PSI |
| Operational | |
|---|---|
| Dig Depth | 23’4.7” (Standard Lift Position) 22’10.8” (Standard Lift Position for 8’ Level Bottom) 19’7.4” (High Lift Position) 19’1.1” (High Lift Position for 8’ Level Bottom) |
| Dig Height | 35’0.1” (Standard Lift Position) 39’8.0” (High Lift Position) |
| Dump Height | 24’5.3” (Standard Lift Position) 28’6.9” (High Lift Position) |
| Maximum Reach | 36’10.1” 36’.03” (at Ground Level) |
| Swing Torque | 110,600 lbf-ft |
| Swing Speed | 0-7.6 RPM |
| Shoes | 50 per side |
| Shoe Width | 27.5” |
| Swing Drive Capacity | 2.6 Gallons |
| Link Pitch | 8.50” |
| Battery | |
|---|---|
| Voltage | 24V |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 4640B RB |
