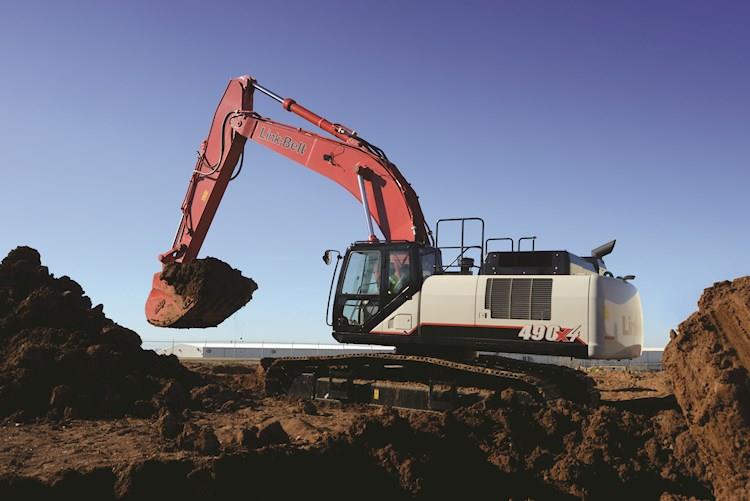

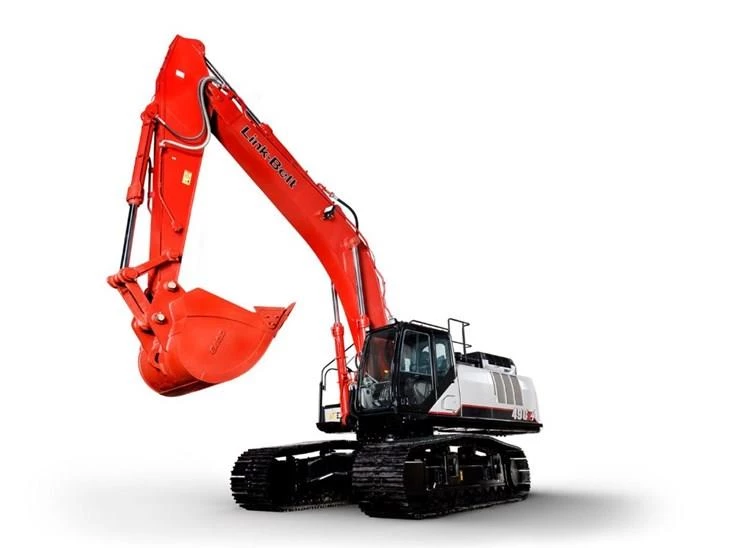

New Link-Belt 490 X4 Excavator for Sale

Link-Belt X4 Series excavators are built to exceed your expectations. We redesigned the control spools and incorporated spool stroke control (SSC) functions into the hydraulic system to reduce pressure loss and distribute hydraulic oil more smoothly, increasing cycle times by 10%.

Expect more power and fuel efficiency, thanks to an innovative Final Tier 4 engine that delivers up to 5% improved fuel consumption, without a Diesel Particulate Filter (DPF) to maintain or replace! Settle in to the roomiest, most accommodating cab in its class, with more legroom and a new high-back, heated seat for shift-long comfort. Daily maintenance is a snap, with ground-level access to all service points, easily opened by hand.

  • Three power modes (Speed Priority, Heavy and Applied Power) let you choose the best blend of power, precision and fuel savings for the work you’re doing
  • EPA Final Tier 4 engine is fuel efficient without sacrificing power
  • No DPF to ever worry about!
  • 2 - 3% DEF (Diesel Exhaust Fluid) consumption rate, combined with one of the largest DEF tank capacities lets you work long hours between refills
  • Ground level access to routine service points lets you cut daily maintenance down to just minutes
  • Quiet, pressurized cab offers excellent visibility and comfortable, best-in-class seating
  • Enough floor space to accommodate the largest of work boots, with cup holders and roomy storage compartments for cell phones, snacks and other personal items
  • Dual cab working lights are standard, or choose optional LEDs for added visibility
  • Ergonomic joysticks fit your hand perfectly
  • 7” high-definition LCD monitor keeps you connected to your machine and work environment
  • RemoteCARE® telematics keeps a watchful eye on performance, maintenance intervals and theft deterrence
  • Full-time, rear-view camera display is standard; add the WAVES™ option for a seamless 270° view around the machine
  • Structural improvements to the boom and arm reduce stress and provide greater durability
  • Robust undercarriage features larger track rollers and thicker plating for longer life
  • Unique side-frame design reduces dirt accumulation and is easier to clean
Body
Cab ROPS and FOPS Level 1 certified with automatic climate control A/C and heat with defroster, 7″ LCD Hi-Definition color monitor with full time rear view camera display, fuel efficiency gauge, low-effort joysticks are pre-wired for auxiliary hydraulics, dual cab lights, control pattern changer, safety glass windows, sunroof with sunshade, shockless cab suspension with four fluid cab mounts, SCM High-Back reclining airsuspension seat, sliding 4-position tilting control consoles, Bluetooth technology, AM/FM sound system with USB and MP3 auxiliary input jack, digital clock, dome light, seat belt, coat hook, cup holder, storage compartments, floor mat, footrests, ashtray, 24V cigarette lighter, 12V outlet, travel alarm, handrails, mirrors, side-entry cab filter, spare parts kit.
Controls Three selectable work modes, RemoteCARE Telematics GPS system, anti-theft password protection system, onboard self-diagnostic system with memory and service interval reminders, auto idling system, one-touch decelerator, auto-idle engine shutdown, auto-power boost, neutral safety start, gate-lock safety shutoff.
Dimensions
Length 17’11”-27’6”
Width 12’5”
Height 12’6”
Weight 112,900 lbs
Fuel Tank Capacity 172 Gallons
Maximum Reach Ground 38’7” (Fixed Sideframe w/22'11 boom 11'1" Arm)
36’ (Fixed Sideframe w/22'11 boom 8'4" Arm)
40’4” (Fixed Sideframe w/22'11 boom 13'2" Arm)
42’10” (Fixed Sideframe w/22'11 boom 15'11" Arm)
34’7” (Fixed Sideframe w/21'6" Boom 8'4" Arm)
38’5” (Expandable Sideframe w/22'11 boom 11'1" Arm)
35’11” (Expandable Sideframe w/22'11 boom 8'4" Arm)
40’3” (Expandable Sideframe w/22'11 boom 13'2" Arm)
42’9” (Expandable Sideframe w/22'11 boom 15'11" Arm)
34’6” (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Engine
Engine Make Isuzu
Engine Model AQ-6UZ1X
Engine Type Final Tier 4 turbocharged diesel engine w/electronic control (ECM) and high pressure common-rail injection
Cylinders 6
Net Horsepower 362 HP
Cooling Water-Cooled
Displacement 600 cu in
Torque 1,005 lbf-ft @ 1500 rpm
DEF Tank Capacity 40 Gallons
Drivetrain
Starter 24V-5.5kW
Gradeability 70% (35°)
Drawbar Pull 76,200 lbf
Alternator 50 amp
Track Rollers 9 per side
Ground Pressure Fixed sideframe undercarriage: 8.27 psi
Expandable sideframe undercarriage: 8.41 psi
Carrier Rollers Fixed sideframe undercarriage: 2 per side
Expandable sideframe undercarriage: 3 per side
Hydraulic
Pump Pump Output: 2 x 96.2 gpm
Pilot Pump Maximum Flow: 7.9 gpm
Hydraulic Tank Capacity 61 Gallons
Hydraulic System Open-center system, two variable-displacement electronically controlled axialpiston pumps and one gear pump for pilot controls, main control valve with one 4-spool section and one 5-spool section with auxiliary spool: stackable, Auxiliary Control System, oil cooler, Auto-Power boost, anti-drift valves, 6 micron return filter, firewall, hydraulic oil sample port.
Hydraulic Cylinders Number of Cylinders: bore x rod x stroke
Boom—2: 6.7” x 4.5” x 61.0”
Arm—1: 7.5” x 5.1” x 75.6”
Bucket—6.5” x 4.5” x 50.6”
Relief Valve Setting Boom Up/Arm/Bucket: 4,550 PSI
In Power Boost: 4,980 PSI
Boom Down: 3,560 PSI
Swing Circuit: 4,270 PSI
Travel Circuit: 4,980 PSI
Operational
Dig Depth 25’4” (Fixed Sideframe w/22'11 boom 11'1" Arm)
22’6” (Fixed Sideframe w/22'11 boom 8'4" Arm)
27’4” (Fixed Sideframe w/22'11 boom 13'2" Arm)
30’2” (Fixed Sideframe w/22'11 boom 15'11" Arm)
21’4” (Fixed Sideframe w/21'6" Boom 8'4" Arm)
24’10” (Expandable Sideframe w/22'11 boom 11'1" Arm)
22’1” (Expandable Sideframe w/22'11 boom 8'4" Arm)
26’10” (Expandable Sideframe w/22'11 boom 13'2" Arm)
29’8” (Expandable Sideframe w/22'11 boom 15'11" Arm)
20’10” (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Dig Height 36’5” (Fixed Sideframe w/22'11 boom 11'1" Arm)
35’7” (Fixed Sideframe w/22'11 boom 8'4" Arm)
36’11” (Fixed Sideframe w/22'11 boom 13'2" Arm)
37’7” (Fixed Sideframe w/22'11 boom 15'11" Arm)
34’7” (Fixed Sideframe w/21'6" Boom 8'4" Arm)
36’11” (Expandable Sideframe w/22'11 boom 11'1" Arm)
36’1” (Expandable Sideframe w/22'11 boom 8'4" Arm)
37’5” (Expandable Sideframe w/22'11 boom 13'2" Arm)
38’1” (Expandable Sideframe w/22'11 boom 15'11" Arm)
35’1” (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Bucket Digging Force 55,500 lbf
Dump Height 25’3” (Fixed Sideframe w/22'11 boom 11'1" Arm)
24’4” (Fixed Sideframe w/22'11 boom 8'4" Arm)
25’10” (Fixed Sideframe w/22'11 boom 13'2" Arm)
26’6” (Fixed Sideframe w/22'11 boom 15'11" Arm)
23’6” (Fixed Sideframe w/21'6" Boom 8'4" Arm)
25’9” (Expandable Sideframe w/22'11 boom 11'1" Arm)
24’10” (Expandable Sideframe w/22'11 boom 8'4" Arm)
26’4” (Expandable Sideframe w/22'11 boom 13'2" Arm)
27’ (Expandable Sideframe w/22'11 boom 15'11" Arm)
24’ (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Bucket Capacity 1.37-4.05 cu yds
Travel Speed - Forward 2.0-3.3 mph
Maximum Reach 39’3” (Fixed Sideframe w/22'11 boom 11'1" Arm)
36’10” (Fixed Sideframe w/22'11 boom 8'4" Arm)
41’1” (Fixed Sideframe w/22'11 boom 13'2" Arm)
43’6” (Fixed Sideframe w/22'11 boom 15'11" Arm)
35’5” (Fixed Sideframe w/21'6" Boom 8'4" Arm)
39’3” (Expandable Sideframe w/22'11 boom 11'1" Arm)
36’10” (Expandable Sideframe w/22'11 boom 8'4" Arm)
41’1” (Expandable Sideframe w/22'11 boom 13'2" Arm)
43’6” (Expandable Sideframe w/22'11 boom 15'11" Arm)
35’5” (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Tail Swing Radius 12’3”
Swing Planetary reduction powered by axial-piston motor, Internal ring gear with grease cavity for swing pinion, Swing bearing is single-row, shear type ball bearing, Mechanical disc swing brake, Auto-power swing.
Max. Arm Digging Force 49,500 lbf
Swing Torque 111,000 lbf-ft
Swing Speed 9.1 rpm
Track Link Pitch 9.00”
Shoes 50 per side
Shoe Width 35.5”
Tail Swing 12’3”
Bucket Rotation 176° (Fixed & Expandable Sideframe w/22'11 boom)
160° (Fixed & Expandable Sideframe w/21'6" Boom)
Battery
Battery (2) 12-volt 128 amp hours

CAB

  • 12V Power Outlet
  • AM/FM Sound System
  • Anti-Theft Device
  • Auxiliary Switches on Control Lever
  • Bluetooth
  • Cab Filter - External
  • Cab Handrails
  • Cab Interior Light
  • Cab ISO-Mounts
  • Cab Light (2)
  • Clear Roof Window
  • Climate Control A/C and Heater
  • Cup Holder
  • Defroster
  • Digital Clock
  • Emergency Exit and Hammer
  • Face Vent
  • Floor Mat
  • FOPS Level 1 Certified
  • Front Window One-Touch Lock
  • Gate Lock Hydraulic Activation
  • Horn
  • Hour Meter (Digital)
  • LCD Color Monitor
  • Magazine Storage Rack
  • Maintenance Interval Reminders
  • MP3 Auxiliary Input Jack
  • On-Board Diagnostic System
  • One-Piece Right Window
  • Radio Mute Switch
  • Rear View Camera
  • Rear View Mirrors (2)
  • RemoteCARE Support System (GPS)
  • Roof Sun Shade
  • ROPS Certified Structure
  • Safety Glass Windows
  • SCM Air-Suspension Seat
  • Seat Recline
  • Selectable Monitor Languages
  • Small Storage
  • Travel Alarm with Cancel Switch
  • Trip Meter (Digital)
  • USB Input
  • Wiper & Washer
  • Wiper Switch on RH Joystick

ENGINE

  • 50A Alternator
  • Air Filter (Double Element)
  • Air Filter Restriction Indicator
  • Air Pre-Cleaner (Cyclone type)
  • Auto Warm-Up System
  • Auto-Idle
  • Auto-Idle Engine Shutdown
  • Battery Disconnect Switch
  • Cooling Fan
  • Diesel Oxidation Catalyst (DOC)
  • Drain for Fuel Tank
  • Dual Remote Fuel Filters with Water Separators
  • EGR Coolers
  • Emergency Engine Stop
  • Engine Idle System
  • Engine Oil Sample Port
  • Engine Protection Feature
  • External Fuel Gauge
  • External DEF Gauge
  • Fan Housing
  • Fuel Cooler
  • Fuel Filter Restriction Indicator
  • Fuel Management System
  • Fuel Shut-Off Valve
  • Fuel Usage History
  • Fuel Usage Monitor
  • Glow Plug Pre-Heat
  • Idle-Start
  • Intercooler
  • Neutral Start
  • One-Touch Idle
  • Passive Emissions Regeneration
  • Radiator / Oil Cooler / Intercooler Protective Screen
  • Remote Engine Oil Drain
  • Remote Oil Filter
  • Reversible Cooling Fan
  • Selective Catalytic Reduction (SCR)
  • Tropical Package
  • DEF Gauge on Monitor
  • VGT Turbocharger

HYDRAULICS

  • Anti-Drift Valves
  • Arm Regeneration
  • Arm Speed Assistance (2 Pump Flow)
  • Attachment Cushion Valve
  • Auto Swing Priority
  • Auxiliary Flow Control
  • Auxiliary Tool Settings (Memory)
  • Auxiliary Valve
  • Boom Regeneration
  • Boom Speed Assistance (2 Pump Flow)
  • Bucket Curl Assist
  • Control Levers Pre-Wired for Auxiliary Hyd.
  • Control Pattern Changer (2 way)
  • Electronically Controlled Hydraulic Pumps
  • Fire Wall
  • Free Swing
  • Hydraulic Filter Restriction Indicator
  • Hydraulic Oil Sample Port
  • Long Life Hydraulic Oil (5,000 Hour)
  • Neutral Pump De-Stroke
  • Oil Cooler
  • Power Boost
  • Power Save
  • Pressure Reading on Monitor
  • Pump Stand-By Pressure
  • Single Pedal Travel
  • Straight Travel Circuit

UNDERCARRIAGE

  • 900 mm (35.5”) 3-Bar Steel Grousers
  • Carbody Belly Pan (Swivel Guarding)
  • Center Track Guide (double)
  • Lashing Points (Tie-Downs)
  • Long Undercarriage
  • Sealed Link Chain
  • Steps
  • Strutted Track Chain
  • X-Pattern Carbody

UPPERSTRUCTURE

  • Belly Pans
  • Catwalks
  • Center Cover (Over Main CV)
  • Fuel Tank Belly Pan
  • Hand Rail (RH access)
  • ISO Guard Rails
  • Lifting Eyes for Counterweight
  • Lockable Fuel Cap and Service Doors
  • Lockable Tool Box
  • Turntable Tub
  • Work Lights (Boom and Tool Box)

ATTACHMENT

  • 11’ 1” (3.38 m) Arm
  • 22’ 11” (6.98 m) Main Boom Section
  • Auxiliary Pipe Brackets
  • Boom Work Light (2)
  • Bucket Anti-Clatter Device
  • Chrome Pins
  • Easy Maintenance System (EMS)
  • HD Bucket Linkage
  • Remote Lube Bank
  • Teardrop Pin Retention Keepers

CAB

  • 270° WAVES™ Camera System
  • Cab Light (2 LED)
  • Cab Sun Screen (rear)
  • FOPS Head Guard (Level 2)
  • Front Guard (Mesh)
  • Front Guard (OPG 1,2)
  • LED Light Kit for Side Camera (1)
  • LED Lights for Rear Camera (2)
  • Rain Deflector
  • SCM Air-Suspension Seat w/ Tilt & Heater

ENGINE

  • Refuel Pump

HYDRAULICS

  • Hose Burst Check Valve
  • Proportional Hydraulic Controls

AUXILIARY HYDRAULIC OPTIONS

  • Single-Acting Aux. w/ Proportional Joysticks
  • Multi-Function Aux. w/ in-cab pressure setting control
  • Thumb Aux. w/ Proportional Joysticks
  • Combination Aux. w/ in-cab pressure setting control

UNDERCARRIAGE

  • 750 mm (29.5”) 3-Bar Steel Grousers
  • Full Length Track Guide

UPPERSTRUCTURE

  • Counterweight Removal System

ATTACHMENT

  • 8’ 4” (2.53 m) Arm
  • 13’ 2” (4.00 m) Arm
  • 15’ 11” (4.85 m) Arm
  • 21’ 6” (6.55 m) Mass Boom Section
  • Quick Couplers
  • Thumbs

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Link-Belt
MODEL 490 X4

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Link-Belt 490 X4

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Link-Belt 490 X4 Excavator for Sale

Link-Belt X4 Series excavators are built to exceed your expectations. We redesigned the control spools and incorporated spool stroke control (SSC) functions into the hydraulic system to reduce pressure loss and distribute hydraulic oil more smoothly, increasing cycle times by 10%.

Expect more power and fuel efficiency, thanks to an innovative Final Tier 4 engine that delivers up to 5% improved fuel consumption, without a Diesel Particulate Filter (DPF) to maintain or replace! Settle in to the roomiest, most accommodating cab in its class, with more legroom and a new high-back, heated seat for shift-long comfort. Daily maintenance is a snap, with ground-level access to all service points, easily opened by hand.

  • Three power modes (Speed Priority, Heavy and Applied Power) let you choose the best blend of power, precision and fuel savings for the work you’re doing
  • EPA Final Tier 4 engine is fuel efficient without sacrificing power
  • No DPF to ever worry about!
  • 2 - 3% DEF (Diesel Exhaust Fluid) consumption rate, combined with one of the largest DEF tank capacities lets you work long hours between refills
  • Ground level access to routine service points lets you cut daily maintenance down to just minutes
  • Quiet, pressurized cab offers excellent visibility and comfortable, best-in-class seating
  • Enough floor space to accommodate the largest of work boots, with cup holders and roomy storage compartments for cell phones, snacks and other personal items
  • Dual cab working lights are standard, or choose optional LEDs for added visibility
  • Ergonomic joysticks fit your hand perfectly
  • 7” high-definition LCD monitor keeps you connected to your machine and work environment
  • RemoteCARE® telematics keeps a watchful eye on performance, maintenance intervals and theft deterrence
  • Full-time, rear-view camera display is standard; add the WAVES™ option for a seamless 270° view around the machine
  • Structural improvements to the boom and arm reduce stress and provide greater durability
  • Robust undercarriage features larger track rollers and thicker plating for longer life
  • Unique side-frame design reduces dirt accumulation and is easier to clean
GENERAL INFORMATION
Manufacturer
Link-Belt
Model Year
Model
490 X4
Condition
NEW
Body
Cab
ROPS and FOPS Level 1 certified with automatic climate control A/C and heat with defroster, 7″ LCD Hi-Definition color monitor with full time rear view camera display, fuel efficiency gauge, low-effort joysticks are pre-wired for auxiliary hydraulics, dual cab lights, control pattern changer, safety glass windows, sunroof with sunshade, shockless cab suspension with four fluid cab mounts, SCM High-Back reclining airsuspension seat, sliding 4-position tilting control consoles, Bluetooth technology, AM/FM sound system with USB and MP3 auxiliary input jack, digital clock, dome light, seat belt, coat hook, cup holder, storage compartments, floor mat, footrests, ashtray, 24V cigarette lighter, 12V outlet, travel alarm, handrails, mirrors, side-entry cab filter, spare parts kit.
Controls
Three selectable work modes, RemoteCARE Telematics GPS system, anti-theft password protection system, onboard self-diagnostic system with memory and service interval reminders, auto idling system, one-touch decelerator, auto-idle engine shutdown, auto-power boost, neutral safety start, gate-lock safety shutoff.
Dimensions
Length
17’11”-27’6”
Width
12’5”
Height
12’6”
Weight
112,900 lbs
Fuel Tank Capacity
172 Gallons
Maximum Reach Ground
38’7” (Fixed Sideframe w/22'11 boom 11'1" Arm) 36’ (Fixed Sideframe w/22'11 boom 8'4" Arm) 40’4” (Fixed Sideframe w/22'11 boom 13'2" Arm) 42’10” (Fixed Sideframe w/22'11 boom 15'11" Arm) 34’7” (Fixed Sideframe w/21'6" Boom 8'4" Arm) 38’5” (Expandable Sideframe w/22'11 boom 11'1" Arm) 35’11” (Expandable Sideframe w/22'11 boom 8'4" Arm) 40’3” (Expandable Sideframe w/22'11 boom 13'2" Arm) 42’9” (Expandable Sideframe w/22'11 boom 15'11" Arm) 34’6” (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Engine
Engine Make
Isuzu
Engine Model
AQ-6UZ1X
Engine Type
Final Tier 4 turbocharged diesel engine w/electronic control (ECM) and high pressure common-rail injection
Cylinders
6
Net Horsepower
362 HP
Cooling
Water-Cooled
Displacement
600 cu in
Torque
1,005 lbf-ft @ 1500 rpm
DEF Tank Capacity
40 Gallons
Drivetrain
Starter
24V-5.5kW
Gradeability
70% (35°)
Drawbar Pull
76,200 lbf
Alternator
50 amp
Track Rollers
9 per side
Ground Pressure
Fixed sideframe undercarriage: 8.27 psi Expandable sideframe undercarriage: 8.41 psi
Carrier Rollers
Fixed sideframe undercarriage: 2 per side Expandable sideframe undercarriage: 3 per side
Hydraulic
Pump
Pump Output: 2 x 96.2 gpm Pilot Pump Maximum Flow: 7.9 gpm
Hydraulic Tank Capacity
61 Gallons
Hydraulic System
Open-center system, two variable-displacement electronically controlled axialpiston pumps and one gear pump for pilot controls, main control valve with one 4-spool section and one 5-spool section with auxiliary spool: stackable, Auxiliary Control System, oil cooler, Auto-Power boost, anti-drift valves, 6 micron return filter, firewall, hydraulic oil sample port.
Hydraulic Cylinders
Number of Cylinders: bore x rod x stroke Boom—2: 6.7” x 4.5” x 61.0” Arm—1: 7.5” x 5.1” x 75.6” Bucket—6.5” x 4.5” x 50.6”
Relief Valve Setting
Boom Up/Arm/Bucket: 4,550 PSI In Power Boost: 4,980 PSI Boom Down: 3,560 PSI Swing Circuit: 4,270 PSI Travel Circuit: 4,980 PSI
Operational
Dig Depth
25’4” (Fixed Sideframe w/22'11 boom 11'1" Arm) 22’6” (Fixed Sideframe w/22'11 boom 8'4" Arm) 27’4” (Fixed Sideframe w/22'11 boom 13'2" Arm) 30’2” (Fixed Sideframe w/22'11 boom 15'11" Arm) 21’4” (Fixed Sideframe w/21'6" Boom 8'4" Arm) 24’10” (Expandable Sideframe w/22'11 boom 11'1" Arm) 22’1” (Expandable Sideframe w/22'11 boom 8'4" Arm) 26’10” (Expandable Sideframe w/22'11 boom 13'2" Arm) 29’8” (Expandable Sideframe w/22'11 boom 15'11" Arm) 20’10” (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Dig Height
36’5” (Fixed Sideframe w/22'11 boom 11'1" Arm) 35’7” (Fixed Sideframe w/22'11 boom 8'4" Arm) 36’11” (Fixed Sideframe w/22'11 boom 13'2" Arm) 37’7” (Fixed Sideframe w/22'11 boom 15'11" Arm) 34’7” (Fixed Sideframe w/21'6" Boom 8'4" Arm) 36’11” (Expandable Sideframe w/22'11 boom 11'1" Arm) 36’1” (Expandable Sideframe w/22'11 boom 8'4" Arm) 37’5” (Expandable Sideframe w/22'11 boom 13'2" Arm) 38’1” (Expandable Sideframe w/22'11 boom 15'11" Arm) 35’1” (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Bucket Digging Force
55,500 lbf
Dump Height
25’3” (Fixed Sideframe w/22'11 boom 11'1" Arm) 24’4” (Fixed Sideframe w/22'11 boom 8'4" Arm) 25’10” (Fixed Sideframe w/22'11 boom 13'2" Arm) 26’6” (Fixed Sideframe w/22'11 boom 15'11" Arm) 23’6” (Fixed Sideframe w/21'6" Boom 8'4" Arm) 25’9” (Expandable Sideframe w/22'11 boom 11'1" Arm) 24’10” (Expandable Sideframe w/22'11 boom 8'4" Arm) 26’4” (Expandable Sideframe w/22'11 boom 13'2" Arm) 27’ (Expandable Sideframe w/22'11 boom 15'11" Arm) 24’ (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Bucket Capacity
1.37-4.05 cu yds
Travel Speed - Forward
2.0-3.3 mph
Maximum Reach
39’3” (Fixed Sideframe w/22'11 boom 11'1" Arm) 36’10” (Fixed Sideframe w/22'11 boom 8'4" Arm) 41’1” (Fixed Sideframe w/22'11 boom 13'2" Arm) 43’6” (Fixed Sideframe w/22'11 boom 15'11" Arm) 35’5” (Fixed Sideframe w/21'6" Boom 8'4" Arm) 39’3” (Expandable Sideframe w/22'11 boom 11'1" Arm) 36’10” (Expandable Sideframe w/22'11 boom 8'4" Arm) 41’1” (Expandable Sideframe w/22'11 boom 13'2" Arm) 43’6” (Expandable Sideframe w/22'11 boom 15'11" Arm) 35’5” (Expandable Sideframe w/21'6" Boom 8'4" Arm)
Tail Swing Radius
12’3”
Swing
Planetary reduction powered by axial-piston motor, Internal ring gear with grease cavity for swing pinion, Swing bearing is single-row, shear type ball bearing, Mechanical disc swing brake, Auto-power swing.
Max. Arm Digging Force
49,500 lbf
Swing Torque
111,000 lbf-ft
Swing Speed
9.1 rpm
Track Link Pitch
9.00”
Shoes
50 per side
Shoe Width
35.5”
Tail Swing
12’3”
Bucket Rotation
176° (Fixed & Expandable Sideframe w/22'11 boom) 160° (Fixed & Expandable Sideframe w/21'6" Boom)
Battery
Battery
(2) 12-volt 128 amp hours

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
LOCATIONS
CAREERS
CONTACT
