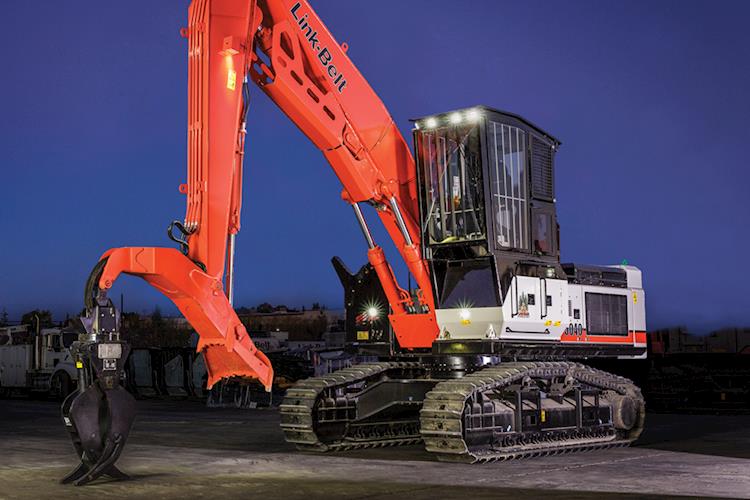

New Link-Belt 5040 TL Excavator for Sale Link-Belt Forestry machines are designed and built with you in mind. Whether you’re pioneering sites, building access roads, harvesting timber, processing logs or loading trucks at the mill yard, we’ve got the right equipment for the job. The new Link-Belt 5040 forestry machines feature powerful, fuel-efficient Final Tier 4 engines that don’t require a Diesel Particulate Filter (DPF), matched to a larger fuel tank that keeps you working longer. 5040 foresty machines offer improved cycle times, more swing torque, and better fuel economy. This attention to detail insures that Link-Belt Forestry machines deliver outstanding performance and productivity where it matters most. We focus on the machine so you can focus on your work.
|
| Body | |
|---|---|
| Cab | Oregon OSHA/ROPS/WCB compliant forestry cab, 48˝ hydraulic tilting riser, (8) LED exterior work lights, Key Fob with remote light functionality, Sirius® Satellite and iPod® ready sound system with AM/FM, MP3 interface, dual speakers and mute button, SCM high-back air-suspension seat, Sliding/reclining, adjustable armrests, lumbar support, retractable seat belt and foot rests, +/- 5 degree tilt, Control panel with illuminated soft-touch switches, High definition LCD monitor with full color 7” display, 2-position LED swivel map lights with red ambient illumination for safety and night vision compatibility, Low-effort controls pre-wired for auxiliary hydraulics, Sliding 4-position tilting control consoles, Climate control, Job ticket slot, CB radio antenna mounting provision, Sky roof, Single motor dual arm intermittent/continuous windshield wiper with washer, Single pedal travel, Travel alarm with cancellation switch, Footrests, Cup holder, 12-volt outlet, Digital clock, 24-volt cigarette lighter, Ashtray, Dome lights, Coat hook, High output dual horns, Handrails with deflector, Floor mat, Emergency exit |
| Controls | Three selectable working modes, Anti-theft password protection system, On-board self-diagnostic system with memory and service interval reminders, Free Swing control, Auto-idling system, One-touch decelerator, Auto-idle engine shutdown, Boom/Bucket Spool Stroke Control (SSC), Attachment Cushion Control, Neutral safety start, Gate-lock safety shutoff, RemoteCARE® Telematics with 6 year free subscription. |
| Dimensions | |
|---|---|
| Length | 17’10”-54’4” |
| Width | 11’9” |
| Height | 12’3” |
| Weight | 112,571 lbs. (side-entry forestry cab) 114,056 lbs. (rear-entry forestry cab) |
| Fuel Tank Capacity | 216 gallons |
| Depth | 15’5” |
| Maximum Reach Ground | 44’0” |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-6HK1X |
| Engine Type | Final Tier 4 turbocharged diesel engine |
| Cylinders | 6 |
| Net Horsepower | 268 HP |
| Cooling | Water-cooled |
| Displacement | 7.8 L |
| Torque | 729 lbf-ft @ 1500 rpm |
| Rated RPM | 1900 RPM |
| DEF Tank Capacity | 40 Gallons |
| Drivetrain | |
|---|---|
| Starter | 24V-5.0kW |
| Gradeability | 70% (35°) |
| Drawbar Pull | 76,200 lbf |
| Alternator | 90 amp |
| Track Rollers | 9 per side |
| Ground Pressure | 10.6 psi |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump | Maximum flow: 2 x 79.3 GPM Pilot pump maximum flow: 7.5 GPM Auxiliary pump maximum flow: 9.2 GPM |
| Hydraulic Tank Capacity | 46 gallons |
| Hydraulic System | Open-center system, (2) variable displacement axial piston pumps, (1) gear pump for pilot controls, (1) gear pump/valve for grapple rotate, Dedicated and proprietary main control valve tuned for enhanced TL performance with one 4-spool valve and one 5-spool valve with auxiliary spool, Programmable auxiliary pump settings with single or double pump control, Double-acting auxiliary hydraulics and rotate circuits plumbed to arm end, Grapple Circuit Control Valve for Live-Heel attachment (Squeeze circuit), Processor return line fitting, Oil cooler, O-ring face seals, High-performance 6-micron return filter, Hydraulic oil sample port, Firewall. |
| Relief Valve Setting | Boom/arm/tool: 4,970 PSI Swing circuit: 4,270 PSI Travel: 4,970 PSI |
| Hydraulic Oil Filtration | Return filter: 6 micron Pilot filter: 8 micron Suction screen: 105 micron |
| Operational | |
|---|---|
| Travel Speed - Forward | 1.7-2.8 mph |
| Maximum Reach | 44’8” |
| Tail Swing Radius | 12’3” |
| Swing | Planetary reduction powered by axial piston motor. Internal ring gear with grease cavity for swing pinion. Swing bearing is single-row shear type ball bearing. Mechanical disc swing brake. Auto power swing. Free swing control. |
| Swing Torque | 110,600 lbf-ft |
| Swing Speed | 0-7.6 rpm |
| Track Link Pitch | 9.0” |
| Shoes | 50 per side |
| Shoe Width | 27.5” |
| Max. Work Height | Max: 50’8” Max Log Level: 34’5” |
| Tail Swing | 12’3” |
| Battery | |
|---|---|
| Battery | (2) 12-volt 128 amp hours |
CAB
ENGINE
HYDRAULICS
UNDERCARRIAGE
UPPERSTRUCTURE
ATTACHMENT
CAB
UNDERCARRIAGE
UPPERSTRUCTURE
ATTACHMENT
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 5040 TL |
