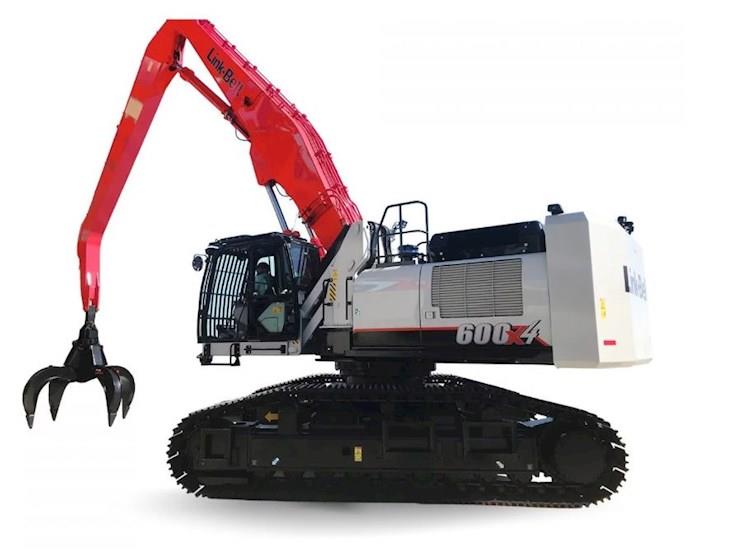

New Link-Belt 600 X4 MH Material Handler Excavator for Sale Link-Belt material handling equipment has a proven record in the harshest, most demanding applications. These purpose-built machines feature heavy-duty, high-wide undercarriages, oversized turn tables, and larger drive motors for dependable, long life service. Depending on the application, Link-Belt material handlers can be equipped with a variety of specialized attachments and components to be fit-up to your needs. |
| Body | |
|---|---|
| Cab | FOPS Level 1 certified with automatic climate control A/C and heat with defroster, 7″ LCD Hi-Definition color monitor with full time rear view camera display, fuel efficiency gauge, low-effort joysticks are pre-wired for auxiliary hydraulics, dual LED cab lights, safety glass windows, sunroof with sunshade, shockless cab suspension with four fluid cab mounts, SCM High-Back reclining air-suspension seat with heat, sliding 4-position tilting control consoles, Bluetooth technology, AM/FM sound system with USB and MP3 auxiliary input jack, digital clock, dome light, seat belt, coat hook, cup holder, storage compartments, floor mat, footrests, ashtray, 24V cigarette lighter, 12V outlet, travel alarm, handrails, mirrors, side-entry cab filter, spare parts kit. |
| Controls | Three selectable work modes, RemoteCARE Telematics GPS system, anti-theft password protection system, onboard self-diagnostic system with memory and service interval reminders, auto idling system, one-touch decelerator, auto-idle engine shutdown, neutral safety start, gate-lock safety shutoff, front guard OPG level 1 standard equipment. |
| Dimensions | |
|---|---|
| Length | 17’9”-42’8” |
| Width | 14’11” |
| Height | 12’4” |
| Weight | 126,216 lbs. |
| Fuel Tank Capacity | 172 Gallons |
| Depth | 23’5” |
| Maximum Reach Ground | 54’5” |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-6HUZX |
| Engine Type | Final Tier 4 turbocharged diesel engine |
| Cylinders | 6 |
| Net Horsepower | 362 HP 329 HP (w/fan pump) |
| Cooling | Water-cooled |
| Displacement | 600 cu in |
| Torque | 1005 lbf-ft @ 1500 RPM |
| Rated RPM | 2000 RPM |
| DEF Tank Capacity | 40 Gallons |
| Drivetrain | |
|---|---|
| Starter | 24V-5.5kW |
| Gradeability | 70% (35°) |
| Drawbar Pull | 76,200 lbf |
| Alternator | 50 amp |
| Track Rollers | 9 per side |
| Ground Pressure | 9.4 PSI (no attachment) |
| Carrier Rollers | 3 per side (retractable sideframe undercarriage) |
| Hydraulic | |
|---|---|
| Pump | Pump Output: 2 x 96.2 GPM Pilot Pump Maximum Flow: 7.9 GPM |
| Hydraulic Tank Capacity | 61 Gallons |
| Hydraulic System | Open-center system, (2) variable displacement axial piston pumps, (1) gear pump for pilot controls. Main control valve with one 4-spool valve and one 5-spool valve with auxiliary spool. (2) stack on valve for cab elevation and grapple rotation, Internal anti-drift valves for boom and arm, hose burst check valve (HBCV) for boom and arm, Supply and return line plumbed to arm end for grapple open/close/rotation. 8’ 7” (2.73 m) stroke elevating cab riser system, Sized up swing motor, Oil cooler, O-ring face seals, High performance 6-micron full flow return filter, 8-micron pilot filter, firewall and hydraulic free swing. |
| Hydraulic Flow | Pump Output: 2x96.2 GPM Pilot Pump Max: 7.9 GPM |
| Oil Capacity | 10.8 Gallons |
| Relief Valve Setting | Boom (up)/Arm: 4,550 PSI Boom (down): 3,560 PSI Swing Circuit: 4,270 PSI Travel Circuit: 4,980 PSI |
| Operational | |
|---|---|
| Dig Depth | 23’5” |
| Dig Height | 60’4” |
| Travel Speed - Forward | 2.0-3.3 MPH |
| Maximum Reach | 55’1” |
| Swing | Planetary reduction powered by axial-piston motor, Internal ring gear with grease cavity for swing pinion, Swing bearing is single-row, shear type ball bearing, Mechanical disc swing brake, Auto-power swing. |
| Swing Torque | 111,000 lbf-ft |
| Swing Speed | 9.1 RPM |
| Track Link Pitch | 9.02” |
| Shoes | 50 per side |
| Shoe Width | 29.5” |
| Max. Work Height | 60’4” |
| Tail Swing | 12’3” |
| Battery | |
|---|---|
| Battery | (2) 12-volt 128 amp hours |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 600 X4 MH |
