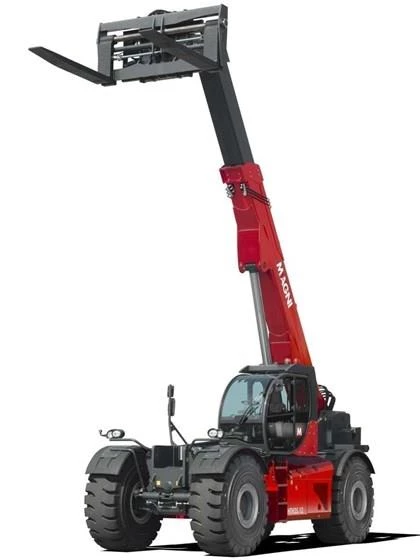

New Magni HTH 35.12 Heavy-Duty Telehandler for Sale Due to their Superior Power and Maneuverability, HTH Machines are Excellent for Heavy Industries, Logistics, Mining, Quarries, and Oil & Gas Applications. Magni’s heavy-duty telescopic handlers have a payload of between 10 and 45 tonnes and are ideal for heavy-duty tasks in manufacturing, ports and mining. They guarantee maneuvering speed and excellent stability. They have been designed specifically to take on such onerous tasks and so make the ideal companion for those requiring performance and reliability in extreme conditions. They are undisputed champions in heavy-duty work. The HTH 35.12 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 35 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry and mining. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains. The comfort and 360° visibility offered by Magni’s patented cab allow the operator to work under the optimum conditions, and help improve safety during delicate movements. It can move large blocks of marble or stone in quarries, or handle materials such as steel bars, rails or other metal structures. It is the ideal machine for maintenance of mining equipment, such as changing rails, replacing hammers or moving conveyor belts. |
| Body | |
|---|---|
| Cab | Front, rear and upper wiper Headlights for road circulation, flashing beacon Rear view mirrors |
| ROPS, FOPS & OPS | FOPS/ROPS tested hermetic cab with protectors |
| Heater/Defroster/Air Conditioning | Heating/air conditioning as standard |
| Capacity at Maximum Height | 39,683 lbs. |
| Number of Gears | 2/2 |
| Dimensions | |
|---|---|
| Length | 26’ |
| Width | 9’10” |
| Height | 11.8’ |
| Weight | 99,208 lbs. (unladen) 32,628 lbs. (Front axle unladen (boom retracted and lowered)) 66,138 lbs. (Rear axle unladen (boom retracted and lowered)) |
| Ground Clearance | 1’9” |
| Turning Radius | 31.85’ (at wheels) |
| Lifting Height | 38’5” |
| Engine | |
|---|---|
| Engine Make | Volvo |
| Engine Model | TAD 884 VE – Stage V |
| Engine Type | Turbocharged diesel direct injection common rail |
| Cylinders | 4 in line |
| Horsepower | 340 HP |
| Cooling | Water – intercooler |
| Max Travel Speed | 15 MPH |
| Fuel Tank Capacity | 89.81 Gallons |
| Steering | 3 types: w/front steering, w/round steer & w/crab steering |
| Rated RPM | 2200 RPM |
| Climate control as standard | Yes |
| Automatic accessory recognition | Yes |
| Gearbox | Hydraulic gearbox with 3 speeds powershift forward/reverse. Differential hydraulic locking |
| Filters | Suction and return line filters |
| Drivetrain | |
|---|---|
| Axles | Heavy Duty with epicyclic reduction One steering cylinders each axle |
| Transmission | Hydrostatics: Rexroth Variable displacement hydrostatic pump w/electronic control Two variable displacement hydrostatic pump |
| Front Axle | Levelling correction front axle: +5° on the right and +5° on the left |
| Rear Axle | Tilting rear axle |
| Engine/Drivetrain | |
|---|---|
| Displacement | 2.03 Gallons |
| Torque | 1360 Nm @ 1400 RPM |
| Hydraulic | |
|---|---|
| Hydraulic Tank Capacity | 93.78 Gallons |
| Hydraulic System | 350 bar (Load Sensing) Piston Pump Proportional hydraulic electrovalve—Bucher |
| Operational | |
|---|---|
| Brakes | Hydraulic servo-assisted multidisc brake in oil bath on both axles, with double circuit Negative parking brake |
| Tires | 29.5 – R25**two each axle, driving and steering |
| Gradeability | 45% |
| Lift Capacity | 77,161 lbs. |
| Safety Features | Electronic safety system which controls the load w/definition of the lifted load, radius and comparison w/the diagrams stored Block of aggravating movements of the load Safety valves on cylinders |
| Hose | High pressure flexible hoses |
| Application | Manufacturing |
| Max. Reach | 22’7” |
| Drawbar Pull | 365 kN |
| Load Center | 3.93’ |
| Controls | Multi-function electro proportional joystick |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Magni |
| MODEL | HTH 35.12 |
