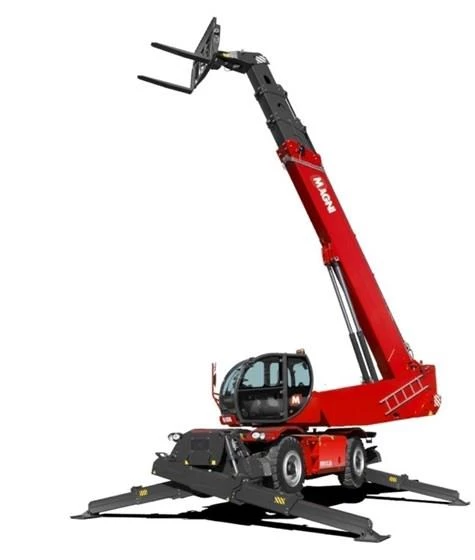

New Magni RTH 13.26 Rotating Telehandler for Sale The rotary telehandlers are extremely versatile and flexible machines. They are used for many applications being able to equip various accessories such as forks, winches and platforms and being equipped with 360° rotation. All Magni lifts work in complete safety, thanks to the patented load control system that detects the risks of overload during use and inhibits further aggravating movements. Reliability and functionality found their embodiments in these 3-in-1 machines. RTH 13.26 is the most powerful rotating telescopic handler in the world. It has a maximum lifting capacity of 26 m and can lift loads of up to 13 tonnes. It is the perfect partner for working on construction or industrial sites where very heavy loads must be lifted to great heights. In order to guarantee operator safety, the leveler and scissor stabilizers are equipped with a very large support surface in order to ensure maximum stability even in tight spaces, offering maximum ground holding on all terrain types. Even when it is only partially stabilized, the machine is designed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they allow the machine to work at its full height over 360°, allowing it to operate on a much wider stabilization base. It is compatible with a wide range of accessories thanks to its RFID system which allows automatic recognition of attachments and creation of dynamic load charts. This telescopic handler is the ideal solution to innumerable requirements in the construction and manufacturing sector. |
| Body | |
|---|---|
| ROPS, FOPS & OPS | FOPS/ROPS |
| Heater/Defroster/Air Conditioning | Heater/Air Conditioning |
| Capacity at Maximum Height | 17,600 lbs. |
| Number of Gears | 2/2 |
| Dimensions | |
|---|---|
| Length | 28’10” |
| Width | 8’4” |
| Weight | 67,460 lbs. (unladen) 23,369 lbs. (Front axle unladen (boom retracted and lowered)) 44,092 lbs. (Rear axle unladen (boom retracted and lowered)) |
| Ground Clearance | 14” |
| Lifting Height | 85’11” |
| Engine | |
|---|---|
| Engine Make | Volvo |
| Engine Model | TAD 583 VE – Stage V |
| Engine Type | Turbocharged direct injection diesel |
| Cylinders | 4 in line |
| Horsepower | 238 HP |
| Cooling | Water – intercooler |
| Max Travel Speed | 15 MPH |
| Fuel Tank Capacity | 62 Gallons |
| Rated RPM | 2300 RPM |
| Climate control as standard | Yes |
| Automatic accessory recognition | Yes |
| Gearbox | Dropbox, 2 speeds forward-reverse |
| Drivetrain | |
|---|---|
| Axles | Axles with planetary gearboxes |
| Transmission Type | Hydrostatic |
| Transmission | Danfoss/Rexroth |
| Front Axle | Oscillating and steering with leveling +/-8° |
| Rear Axle | Oscillating and steering with hydraulic locking |
| Engine/Drivetrain | |
|---|---|
| Displacement | 135.52 Gallons Electronically controlled variable displacement pump. Variable displacement displacement motor |
| Torque | 975 Nm @ 1,380 RPM |
| Hydraulic | |
|---|---|
| System Pressure | 480 bar |
| Hydraulic Tank Capacity | 79.25 Gallons |
| Hydraulic System | 350 bar |
| Hydraulic Movements Control | 2 no. two-axis Danfoss joysticks with deadman safety device. Managed via CAN bus |
| Distributor for boom and turret movements | Danfoss – SIL 2 electro-proportional valve |
| Distributor for stabilizers | Bosch Rexroth – Electro-hydraulic actuators |
| Circuit Type | Load sensing |
| Service Pump | Danfoss/Rexroth – Variable displacement |
| Operational | |
|---|---|
| Brakes | Service: Hydraulically operated wet multi-disk brakes on each axle Parking: Hydraulic with negative action |
| Tires | 17.5 R 25 |
| Gradeability | 50% |
| Lift Capacity | 28,600 lbs. |
| Rotation | 360° (continue) |
| Application | Construction, Manufacturing, Special Projects |
| Stabilizers | Scissors |
| Max. Reach | 69’10” |
| Drawbar Pull | 152 kN |
| Turning Circle | 23.75’ (at forks) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Magni |
| MODEL | RTH 13.26 |
