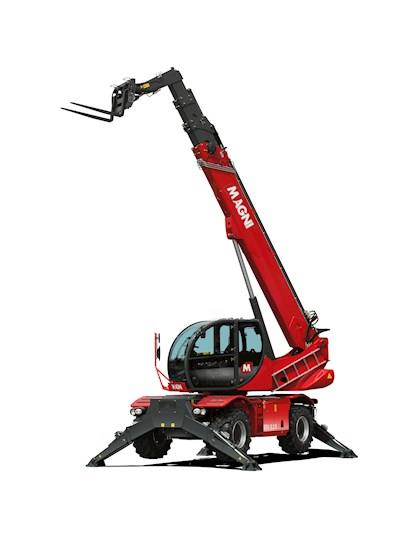

New Magni RTH 5.25 Rotating Telehandler for Sale The rotary telehandlers are extremely versatile and flexible machines. They are used for many applications being able to equip various accessories such as forks, winches and platforms and being equipped with 360° rotation. All Magni lifts work in complete safety, thanks to the patented load control system that detects the risks of overload during use and inhibits further aggravating movements. Reliability and functionality found their embodiments in these 3-in-1 machines. The RTH 5.25 is a compact yet high-performance rotating telescopic handler. It can lift loads up to a height of 25 m and is equipped with pivoting stabilisers to guarantee stability and safety during all manoeuvres. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry. |
| Body | |
|---|---|
| ROPS, FOPS & OPS | FOPS/ROPS |
| Capacity at Maximum Height | 4,400 lbs. |
| Number of Gears | 2/2 |
| Dimensions | |
|---|---|
| Length | 25’ |
| Width | 8’4” |
| Weight | 36,595 lbs. (unladen) 16,093 lbs. (front axle unladen – boom retracted and lowered) 20,502 lbs. (rear axle unladen – boom retracted and lowered) |
| Ground Clearance | 13” |
| Lifting Height | 82’ |
| Engine | |
|---|---|
| Engine Make | Deutz |
| Engine Model | TCD 3.6 L4 – Stage V |
| Engine Type | Turbocharged direct injection diesel |
| Cylinders | 4 in line |
| Horsepower | 136 HP |
| Cooling | Water – intercooler |
| Max Travel Speed | 25 MPH |
| Fuel Tank Capacity | 46 Gallons |
| Rated RPM | 2200 RPM |
| Climate control as standard | Yes |
| Automatic accessory recognition | Yes |
| Gearbox | Dropbox, 2 speeds forward-reverse |
| Drivetrain | |
|---|---|
| Axles | Axles with planetary gearboxes |
| Transmission Type | Hydrostatic |
| Transmission | Danfoss/Rexroth |
| Front Axle | Oscillating and steering with leveling +/-8° |
| Rear Axle | Oscillating and steering with hydraulic locking |
| Engine/Drivetrain | |
|---|---|
| Displacement | 0.95 Gallons Electronically controlled variable displacement pump. Variable displacement motor |
| Torque | 500 NM @ 1600 RPM |
| Hydraulic | |
|---|---|
| Hydraulic System | 350 bar |
| Hydraulic Movements Control | 2 no. two-axis Danfoss joysticks with deadman safety device. Managed via CAN bus |
| Distributor for boom and turret movements | Danfoss – SIL 2 electro-proportional valve |
| Distributor for stabilizers | Bosch Rexroth – Electro-hydraulic actuators |
| Circuit Type | Load sensing |
| Service Pump | Danfoss/Casappa – Variable displacement |
| Operational | |
|---|---|
| Brakes | Service: Hydraulically operated wet multi-disk brakes on each axle Parking: Hydraulic with negative action |
| Tires | 445/65 R22,5 |
| Gradeability | 43% |
| Lift Capacity | 11,000 lbs. |
| Rotation | 360° (continue) |
| Application | Construction, Manufacturing |
| Stabilizers | Pivoting |
| Max. Reach | 62’33” |
| Drawbar Pull | 72 kN |
| Turning Circle | 21.03’ (at forks) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Magni |
| MODEL | RTH 5.25 |
