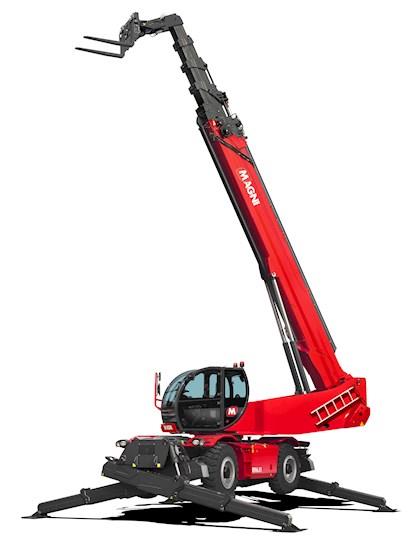

New Magni RTH 6.51 Rotating Telehandler for Sale The rotary telehandlers are extremely versatile and flexible machines. They are used for many applications being able to equip various accessories such as forks, winches and platforms and being equipped with 360° rotation. All Magni lifts work in complete safety, thanks to the patented load control system that detects the risks of overload during use and inhibits further aggravating movements. Reliability and functionality found their embodiments in these 3-in-1 machines. The RTH 6.51 is the highest rotating telescopic handler in the world. It achieves a lifting height of 51 m, with a maximum load capacity of 6 tonnes. It is the perfect solution for all construction or industrial sites requiring best-in-class reach and lifting capacities. The inclination corrector and scissor stabilisers with large support feet offer excellent stability under all circumstances, guaranteeing perfect ground holding on all terrain in order to ensure maximum operator safety. The dual-extension scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side. When the stabilisers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. This model allows the same attachment to be used in two different ways: strength mode M2 and stability mode M1. The first allows very heavy loads to be lifted, but with a more limited extension. The second mode, on the other hand, allows for greater extension, but with more limited loads. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the dynamic load charts; this telescopic handler is able to meet a wide range of applications in construction and industry. |
| Body | |
|---|---|
| ROPS, FOPS & OPS | FOPS/ROPS |
| Heater/Defroster/Air Conditioning | Heater/Air Conditioning |
| Capacity at Maximum Height | 4,400 lbs. |
| Number of Gears | 2/2 |
| Dimensions | |
|---|---|
| Length | 33’11” |
| Width | 8’4” |
| Weight | 80,240 lbs. (unladen) 35,273 lbs. (Front axle unladen (boom retracted and lowered)) 44,974 lbs. (Rear axle unladen (boom retracted and lowered)) |
| Ground Clearance | 1’1” |
| Lifting Height | 167’4” |
| Engine | |
|---|---|
| Engine Make | Volvo |
| Engine Model | TAD 583 VE – Stage V |
| Engine Type | Turbocharged direct injection diesel |
| Cylinders | 4 in line |
| Horsepower | 238 HP |
| Cooling | Water – intercooler |
| Max Travel Speed | 15 MPH |
| Fuel Tank Capacity | 62 Gallons |
| Rated RPM | 2300 RPM |
| Climate control as standard | Yes |
| Automatic accessory recognition | Yes |
| Gearbox | Dropbox, 2 speeds forward-reverse |
| Drivetrain | |
|---|---|
| Axles | Axles with planetary gearboxes |
| Transmission Type | Hydrostatic |
| Transmission | Danfoss |
| Front Axle | Oscillating and steering with leveling +/-8° |
| Rear Axle | Oscillating and steering with hydraulic locking |
| Engine/Drivetrain | |
|---|---|
| Displacement | 135.52 Gallons Electronically controlled variable displacement pump. Variable displacement displacement motor |
| Torque | 975 Nm @ 1,380 RPM |
| Hydraulic | |
|---|---|
| System Pressure | 480 bar |
| Hydraulic Tank Capacity | 79.25 Gallons |
| Hydraulic System | 350 bar |
| Hydraulic Movements Control | 2 no. two-axis Danfoss joysticks with deadman safety device. Managed via CAN bus |
| Distributor for boom and turret movements | Danfoss – SIL 2 electro-proportional valve |
| Distributor for stabilizers | Bosch Rexroth – Electro-hydraulic actuators |
| Circuit Type | Load sensing |
| Service Pump | Danfoss/Rexroth – Variable displacement |
| Operational | |
|---|---|
| Brakes | Service: Hydraulically operated wet multi-disk brakes on each axle Parking: Hydraulic with negative action |
| Tires | 17.5 R 25 |
| Gradeability | 55% |
| Lift Capacity | 13,200 lbs. |
| Rotation | 360° (continue) |
| Application | Construction, Manufacturing, Special Projects |
| Stabilizers | Scissors |
| Max. Reach | 13’2” |
| Drawbar Pull | 199 kN |
| Turning Circle | 26.60’ (at forks) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Magni |
| MODEL | RTH 6.51 |
