Magni RTH 8.27

New Telehandler for Sale

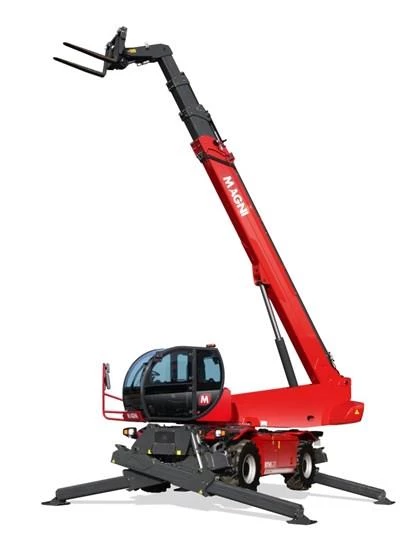

New Magni RTH 8.27 Rotating Telehandler for Sale

The rotary telehandlers are extremely versatile and flexible machines. They are used for many applications being able to equip various accessories such as forks, winches and platforms and being equipped with 360 ° rotation. All Magni lifts work in complete safety, thanks to the patented load control system that detects the risks of overload during use and inhibits further aggravating movements. Reliability and functionality found their embodiments in these 3-in-1 machines.

The RTH 8.27 is a rotating telescopic handler that is ideal both for construction sites and for-hire fleets. Compact and multifunctional, it is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry. It is equipped with pivoting stabilizers with a large contact surface and a load monitoring system to protect against the risk of machine overload and offers three steering modes.

The key points of this model:

  • Performance: lifting performance has improved considerably.
  • Safety: the increased windshield surface and the cabin moved to a more forward position in relation to the chassis allows for better visibility of all operations in progress. Moreover, we implemented constant monitoring tools so that the operator has everything under control in real time.
  • Technology: we have added to the standard functions the new on-board LLD (Load Live Diagrams) software, which allows the load chart to be displayed in three different ways, and several state-of-the-art systems, including the ‘easy access system’, allowing for easy access to the cab.
  • User experience: we have refined the seat and the steering column to ensure that the operator’s needs are fully met. Moreover, two sunblinds and automatic, dimmable courtesy lights have been implemented.
Body
Wheels 4WD
Capacity at Maximum Height 8,800 lbs.
Number of Gears 2/2
Stabilizer Commands Indipendent or combined
Dimensions
Length 27’1”
Width 8’4”
Height 10’3”
Weight 49,163 lbs.
21,605 (front axle unladen (boom retracted and lowered))
27,558 (rear axle unladen (boom retracted and lowered))
Ground Clearance 1’12”
Engine
Engine Make Volvo
Engine Model TAD 582 VE Stage V
Engine Type Turbocharged direct injection diesel
Cylinders 4 in linea
Horsepower 218 HP
Cooling Water – Intercooler
Max Travel Speed 25 MPH
Fuel Tank Capacity 71 Gallons
Steering Front/Round/Crab
Working Pressure 5076 PSI
Climate control as standard Yes
Automatic accessory recognition Yes
Gearbox 2 speeds forward-reverse
Reversable Fan Drive Yes
Drivetrain
Axles Axles w/planetary gearboxes
Transmission Type Hydraulic
Front Axle Oscillating, steering with levelling +/-8°
Rear Axle Oscillating and steering with hydraulic locking
Transmission Pressure 6961 PSI
Engine/Drivetrain
Displacement 2019 in³
Torque 925 Nm @ 1380 RPM
Hydraulic
Hydraulic Tank Capacity 36 Gallons
Hydraulic System 350 bar (Load sensing)
Hydraulic Flow 44 GPM
Hydraulic Movements Control 2 no. two-axis Danfoss joysticks with deadman safety device
Distributor for boom and turret movements SIL 2 electro-proportional valve
Circuit Type Load sensing
Service Pump Variable displacement piston pump
Operational
Brakes Service: Hydraulically operated wet multi-disk brakes on each axle
Parking: Hydraulic with negative action
Tires 445/65 R22.5
Gradeability 40%
Max Lift Height 87’3”
Lift Capacity 17,600 lbs.
Rotation 360° (continue)
Application Construction, Manufacturing, Large events
Stabilizers Scissors Stabilizers with single telescopic extension (Magni patented)
Max. Reach 75’10”
Drawbar Pull 88 kN
Turning Circle 22’9”
Electrical
Voltage 2 x 12V
Battery SHD
Alternator 1,200 A -190 Ah
  • Liebherr
  • Gradeability 30°-40°
  • Best lifting performance
  • Hydraulic system
  • CAN bus
  • Self Leveling
  • Four-wheel drive
  • R.F.ID.
  • Cup holder
  • Heating/air conditioning as standard
  • MCTS
  • FOPS/ROPS
  • Registered cab design
  • 360° rotation
  • 3 in 1: crane/forklift truck/safety cage
  • Special—For each special application Magni has the right solution, that allows you to do the job in complete safety and enhance the machine’s performances
    • My Magni: The new GPS system that can provide a total overview that enables you to map and track every movement of your fleet, and displays the most critical items on your dashboard. Technical alarms and maintenance data help to keep your fleet running and in perfect condition at all times. Whereas, safety warnings alert you of malfunctions and safety-related defects. MyMagni is available on Desktop, Apple Store and Google Play Store. For the RTH and HTH range, the first three years’ subscription is included in the price of the machine.
    • Pre arrangement for tree cutting device: This option prepares the machine for use with the tree cutting attachment. The kit comprise:
      • LED working lights on the cab (front/rear)
      • Dedicated left side joystick (double roller)
      • Dedicated right side joystick (additional roller next to the gear selector)
      • Wireless camera on the boom head with protection
      • Orientable wireless camera on the right side mirror with protection
      • HD monitor for wireless cameras in the cab
      • Protection grille for the windscreen
      • Dedicated F7 filtration class air filter in the cab
    • Boom protection for tree cutting device and dusty environments: Set of caps and protections for the boom holes to protect from intrusion of dust and debrits in the boom.
    • Elevating Cab: Option which allows the cab to be installed on a mobile hydraulic support to obtain an elevation of up to 1.5 m and a further degree of freedom of cab inclination from 0° to a maximum of 15°.  With this optional, the maximum speed of the machine is limited to 25 km/h.
    • Special painting (complete machine): Option consisting of custom colour for the following machine parts: chassis, stabilisers and cab
    • Special painting (replacing only Magni red): Option consisting of custom colour for the following machine parts: chassis-turret and boom, and engine compartment/tank.
    • Induction brake system for RTH: Induction brakes commonly called electric or electromagnetic retarders allow slowing down braking, dissipating a large part of the braking energy and thus relieving the load on conventional braking systems. Thanks to induction brakes it is possible to effectively slow down a rotating transmission shaft, without friction and therefore without wear.
  • Special Certifications—Magni offers its network special certifications required for various markets
  • Performance & Working Experience: Everything revolves around excellent performances that make using a Magni a unique experience. An experience where the operator is the center, who will be able to do his best during working hours.
    • 110 V Plug at Boom Head: Extension cable provision for connection of 110 V components on the end of the boom
    • Automatic Greasing System: Timed automatic lubrication system which greases the machine’s swivel pins to streamline scheduled maintenance and extend working hours. This kit is composed by: high-pressure lubrication pump (with operating temperature down to -25° C), distributor and monitor. In the system, the ECU LCD-based monitor controlls the highpressure grease pump, which operates cyclically. During operation, the reducer motor drives the eccentric wheel to reciprocate the plunger pair for grease pumping. After the pressurized grease enters into the supply line, the grease is supplied to lube points via the distributor metering chamber.
    • Rear Electric Plug 24V for Trailer (13 Pins): Trailer electrical socket 24V – 13-pins socket to duplicate rear lights.
    • Cold Climates Package. Magni recommends the use of Q8 oils and lubricants. Consisting of:
      • Heater for engine coolant 230V
      • OPT-02-027: hydraulic oil for cold climate
      • OPT-02-025: led lights on top of the cab front
      • OPT-02-003: led lights on top of the cab rear
      • OPT-02-004: led lights on the boom
      • OPT-02-007: external battery cut-off
      • OPT-03-003: V plug in the cabin
    • Hydraulic Oil for Cold Climates: ISO VG 32 hydraulic oil which provides full performance in very cold climates down to -32°. Magni recommends the use of Q8 oils and lubricants.
    • Bio Hydraulic Oil: High-performance EAL, completely synthetic and zinc free for hydraulic systems. Saturated synthetic ester base. Allows for «lifetime filling» extended oil change intervals, without deposits.  Magni recommends the use of Q8 oils and lubricants.
    • Heater for Engine Coolant: Option consisting of an electric engine coolant pre-heating element, perfect for countries with cold climates.
    • Twin Power 400V: This option allows the machine to be used without starting the diesel engine. By connecting to an external electricity supply (380 V), it is possible to power the machine and perform all normal lifting and load positioning operations. A 15 kW electric motor and a 90 litre piston pump guarantee performance and precision for each and every movement.  Pre-arrangement OPT-02-031 included in this option
    • Pre Arrangement for Twin Power 400 V: Option required for Twin power installation.
  • Safe & Secure
    • Lifting Cylinder Stop: Safety device for stopping the lifting cylinder.
    • Hydraulic Trailer Braking: Option including hydraulic brake line for trailers.
    • No. 4 Foam Filled Tyres 445/65 R22,5: This tyre virtually eliminates the risk of damage and blowouts, ensuring the machine remains in full working order and guaranteeing the highest levels of safety during all demanding uses. It is filled with a polyurethane foam which undergoes a chemical reaction and solidifies in 24 hours. The result is an elastomer which will not extrude either from cuts or holes, yet allows the tyre to deflect like a corresponding air-filled model.  The speed of the machine will be reduced for safety reasons with this option. The following kit is a replacement for the standard wheels.
    • Road Tyres + Extended Mudguard: Option including 4 no. mudguards and 4 no. road tyres. This option helps to preserve carpentry and chromium plating of the vehicle.  Tyre model: 445/65 R22.5 AE77.
    • Right Spare Wheel: Type-approved, pre-assembled right wheel composed of rim and tyre.  OPT-03-016 (445/65, R22.5)
    • Left Spare Wheel: Type-approved, pre-assembled left wheel composed of rim and tyre.  OPT-03-017 (445/65 R22.5)
    • Emergency Stop Buttons: Option composed by 2 external buttons for the complete shut off of the machine mounted on the lateral sides of the chassis.
    • Wheel Chocks (2) RTH-TH: Metal chocks used when parking the machine on slopes to ensure stable positioning.
  • Care & Comfort
    • Air Suspended Seat with Heating 24V: The air suspension seat absorbs the majority of the machine’s dynamic  oscillations during movement, making driving more comfortable. Option that increases seat comfort and user wellbeing on cold days. The seat is equipped with a 24V heating system. The heat is gradually reduced automatically, and when the lowest level is reached, the seat heating system is switched off automatically. It is also possible to disable the system manually at any time.
    • No.4 Cameras: Kit composed of n.4 ball cameras with extremely robust case in polycarbonate for hard-to-reach areas outside the vehicle. Alignable on all sides. Camera images are displayed on the touch screen monitor in the cab, dividing the video into four equal sections.
      • Equipment details:1/4“ CCD – Video format PAL – Viewing angle 150°(D) – 600 TV lines – 0,01 Lux (0 Lux by IR LED on) – Operating temperature range – 30°C ~ 70 °C – Power supply 12 VDC (±10%) Connector MiniDIN.  Dimensions 85mm x 78mm x 97mm.  Weight 154g
      • Certificate: E-mark; IP69K; ECE 118
    • No.3 Cameras (2 Front + 1 Rear Wireless + Monitor in the Cab): Option composed of three wireless video cameras, one installed in the top of the boom, one the right hand side and the last one on the rear of the machine to increase visibility and thereby safety when manoeuvring, as the area can be viewed on the monitor in the cab. Wireless colour video camera with microphone and audio. Included also in the kit one monitor with support and 4 magnetic antennas (2 at 3 d(B) and 2 at 5 d(B)).
    • Air Suspended Seat: The air suspension seat absorbs the majority of the machine’s dynamic oscillations during movement, making driving more comfortable.
    • Tilting Seat: Option which allows the seat to recline in order to obtain a perfect view of the load with the boom elevated so that the operator is not required to adopt unergonomic positions while working.
    • Seat Headrest: Optional which increases seat comfort to provide the operator with an exceptional driving experience.
    • Heated Seat 24V: This option increases seat comfort and user well-being on cold days. The seat is equipped with a 24V heating system. The heat is gradually reduced automatically, and when the lowest level is reached, the seat heating system is switched off automatically. It is also possible to disable the system manually at any time.
