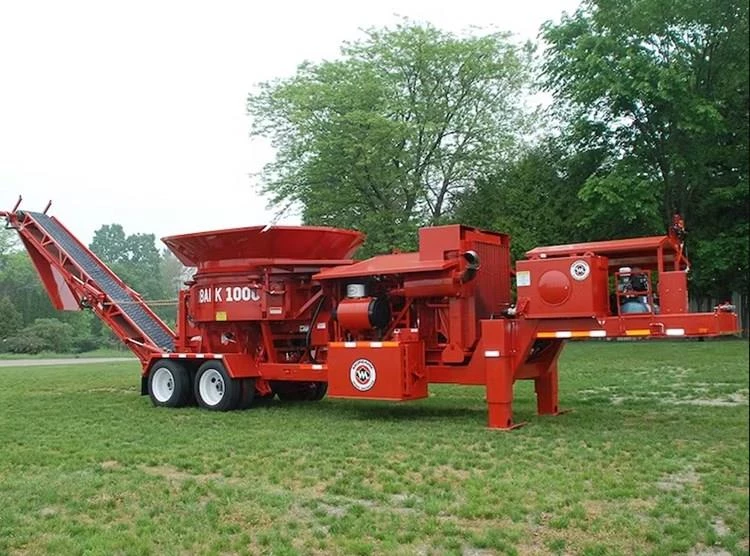

Morbark 1000 Tub Grinder

New Morbark Tub Grinder for Sale

New Morbark 1000 Tub Grinder for Sale

This small but powerful tub grinder is perfect for lower volume applications for land clearing, wood waste recycling, municipalities and compost facilities. Like Morbark’s larger grinders, the 1000 Tub Grinder includes the Morbark Integrated Control System (MICS), which allows you to monitor key systems and adjust feed rates. Equipped with a proven drive line protection system with torque limiter, this model also boasts hydraulic augers to quickly remove product and prevent plugging, a pinned rotor system and a variety of heavy-duty grates to produce different end products, and optional hinged tub flares for use during transportation.

  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): The ultimate diagnostic system; monitors hydraulic pressures, temperatures, clutch systems, and engine efficiency to maximize performance.
  • TORQUE LIMITER: Full breakaway torque limiter protects the engine and clutch against shock and overload without stalling the engine.
  • HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • TUB TILT: Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
  • Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
Axle
Axle Weight 20,40 lbs.
Body
Tires (8) 255/70R/22.5
Tongue Weight 8,300 lbs.
Screen Area 1,900 sq in
Dimensions
Length 54’2”
Width 8’6”
Weight 34,500 lbs.
Transport Length 34’6”
Transport Height 12’10.25”
Engine
Engine Make Cat
Horsepower 577 HP
Hydraulic Capacity 120 Gallons
Fuel Capacity 160 Gallons
Operational
Brakes Air
Towing Arrangement Pintle hitch or Fifth Wheel
  • Two 12" (30.48 cm) diameter augers that discharge onto a 28" (71.12 cm) belt conveyor
  • 10'6" (3.2 m) diameter tub opening, 8' (2.44 m) diameter at inside base, and 50" (127 cm) deep walls constructed of 0.25" (.63 cm) reinforced steel plate, floor constructed of 0.375" (.95 cm) thick wear-resistant steel
  • Tub is supported by 10 rubber tire guide rolls
  • 24.5" (62.23 cm) x 46" (116.84 cm) hammermill system constructed of a heavy-duty 16" (40.64 cm) diameter laser-cut rotor, (19) 1.125" (2.86 cm) thick two-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 4.5" (11.43 cm) diameter rotor shaft with 3.44" (8.73 cm) bearings direct driven at engine RPM and (8) 1.25" (3.17 cm) hammer retaining rods
  • Complete with (36) 1.25" (3.17 cm) balanced forged hard-surfaced fixed hammers and (36) 2" (5.08 cm) wide replaceable inserts and 0.75" (1.9 cm) thick heavy-duty screens
  • Magnetized end pulley for discharge conveyor, complete with collecting slide tray for ferrous metal removal
  • Remote control with tethered back-up system
  • Dust supression system
  • 11-HP (8.2 kW) air compressor
  • Pintle hitch towing arrangement with dual axles

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 1000 Tub Grinder

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 1000 Tub Grinder

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 1000 Tub Grinder for Sale

This small but powerful tub grinder is perfect for lower volume applications for land clearing, wood waste recycling, municipalities and compost facilities. Like Morbark’s larger grinders, the 1000 Tub Grinder includes the Morbark Integrated Control System (MICS), which allows you to monitor key systems and adjust feed rates. Equipped with a proven drive line protection system with torque limiter, this model also boasts hydraulic augers to quickly remove product and prevent plugging, a pinned rotor system and a variety of heavy-duty grates to produce different end products, and optional hinged tub flares for use during transportation.

  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): The ultimate diagnostic system; monitors hydraulic pressures, temperatures, clutch systems, and engine efficiency to maximize performance.
  • TORQUE LIMITER: Full breakaway torque limiter protects the engine and clutch against shock and overload without stalling the engine.
  • HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • TUB TILT: Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
  • Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
1000 Tub Grinder
Condition
NEW
Axle
Axle Weight
20,40 lbs.
Body
Tires
(8) 255/70R/22.5
Tongue Weight
8,300 lbs.
Screen Area
1,900 sq in
Dimensions
Length
54’2”
Width
8’6”
Weight
34,500 lbs.
Transport Length
34’6”
Transport Height
12’10.25”
Engine
Engine Make
Cat
Horsepower
577 HP
Hydraulic Capacity
120 Gallons
Fuel Capacity
160 Gallons
Operational
Brakes
Air
Towing Arrangement
Pintle hitch or Fifth Wheel

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
