Morbark 1100 Tub Grinder

New Tub Grinder ready for Sale

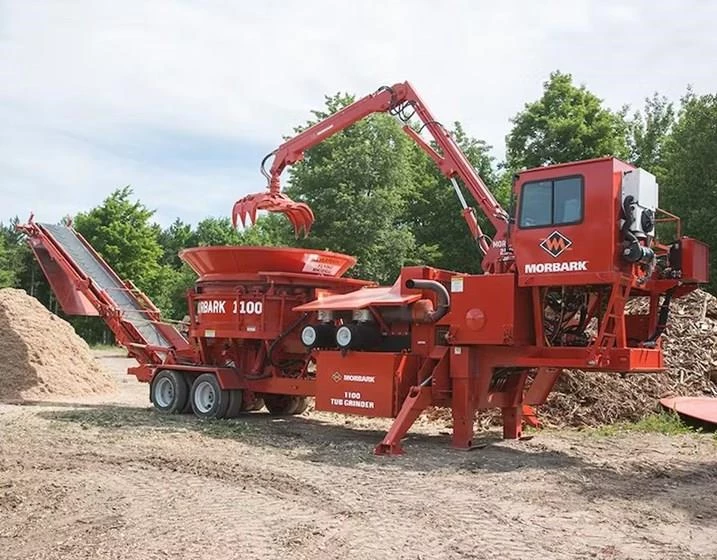

New Morbark 1100 Tub Grinder for Sale

The Morbark 1100 Tub Grinder is a mid-sized grinder that brings price and performance together for the processing and reduction of wood waste. This tub grinder packs an impressive line of features usually only found on larger models, including the Morbark Integrated Control System (MICS) to adjust feed rates of a variety of materials while optimizing fuel efficiency. Other features include a laser-cut, factory-balanced hammermill; dual hydraulic augers that maintain flow during material surges to prevent plugging; and a full breakaway torque limiter to protect the engine and clutch from catastrophic damage.

  • HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • TORQUE LIMITER: The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • TUB TILT: Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
  • HAMMERMILL: Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Monitor pressures, temperatures, clutch systems, tub rotation and engine efficiency to maximize production and engine efficiency.
  • Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
Axle
Axle Weight 34,830 lbs. (NCL)
Optional: 40,540 lbs. (WCL)
Body
Tires (8) 255/70R/22.5
Tongue Weight 13,770 lbs. (NCL)
Optional: 19,380 lbs. (WCL)
Screen Area 2,174 sq in
Dimensions
Length 56’3”
Width 9’9”
Weight 48,630 lbs. (NCL)
59,920 lbs. (WCL)
Transport Length 37’2”
Transport Height 12’9”
Engine
Engine Make Cat
Horsepower 800 HP
Hydraulic Capacity 120 Gallons
205 Gallons (WCL)
Fuel Capacity 300 Gallons
Operational
Brakes Air
Towing Arrangement Fifth wheel
  • 15' (4.57 m) discharge system consisting of dual hydraulically powered 14" (35.65 cm) diameter by 84" (213.36 cm) long augers and 36" (91.44 cm) x 26' (7.92 m) belt conveyor with hydraulic fold for transport
  • 12' (3.66 m) diameter opening across the top, 9' (2.74 m) diameter at inside base of tub; 60" (152.4 cm) deep walls constructed of 0.375" (.95 cm) reinforced steel plate, floor constructed of 0.5" (1.27 cm) thick wear-resistant steel.
  • Tub is supported by 14 roller guides carried on 1.5" (3.81 cm) diameter shafts
  • 24" (60.96 cm) x 51.25" (130.18 cm) Hammermill system constructed of heavy-duty 16.5" (41.91 cm) diameter laser cut rotor, (13) 1.75" (4.44 cm) thick two-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 5.875" (14.92 cm) diameter rotor shaft with 3.94" (10 cm) bearings direct driven at engine RPM and eight 2" (5.08 cm) hammer retaining rods
  • Complete with (24) 2" (5.08 cm) balanced forged steel hard-surfaced hammers and (24) 2.94" (7.46 cm) replaceable inserts
  • 1" (2.54 cm) thick wear form steel heavy-duty screens
  • Magnetized end pulley for discharge conveyor, complete with collecting slide tray for ferrous metal removal
  • Remote control with tethered back-up system
  • Dust supression system
  • 11-HP (8.2 kW) air compressor
  • Model 250 knuckleboom loader with 30" (76.2 cm) Tarantula grapple, 360° turn motor and stationary operator’s cab in lieu of remote control

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 1100 Tub Grinder

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 1100 Tub Grinder

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 1100 Tub Grinder for Sale

The Morbark 1100 Tub Grinder is a mid-sized grinder that brings price and performance together for the processing and reduction of wood waste. This tub grinder packs an impressive line of features usually only found on larger models, including the Morbark Integrated Control System (MICS) to adjust feed rates of a variety of materials while optimizing fuel efficiency. Other features include a laser-cut, factory-balanced hammermill; dual hydraulic augers that maintain flow during material surges to prevent plugging; and a full breakaway torque limiter to protect the engine and clutch from catastrophic damage.

  • HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • TORQUE LIMITER: The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • TUB TILT: Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
  • HAMMERMILL: Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Monitor pressures, temperatures, clutch systems, tub rotation and engine efficiency to maximize production and engine efficiency.
  • Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
1100 Tub Grinder
Condition
NEW
Axle
Axle Weight
34,830 lbs. (NCL) Optional: 40,540 lbs. (WCL)
Body
Tires
(8) 255/70R/22.5
Tongue Weight
13,770 lbs. (NCL) Optional: 19,380 lbs. (WCL)
Screen Area
2,174 sq in
Dimensions
Length
56’3”
Width
9’9”
Weight
48,630 lbs. (NCL) 59,920 lbs. (WCL)
Transport Length
37’2”
Transport Height
12’9”
Engine
Engine Make
Cat
Horsepower
800 HP
Hydraulic Capacity
120 Gallons 205 Gallons (WCL)
Fuel Capacity
300 Gallons
Operational
Brakes
Air
Towing Arrangement
Fifth wheel
