Morbark 1300B Tub Grinder

New Morbark Tub Grinder for Sale

New Morbark 1300B Tub Grinder for Sale

The Morbark 1300B Tub Grinder combines heavy-duty construction with the latest technology, including the Morbark Integrated Control System, which allows you to monitor critical machine parameters. With a full breakaway torque limiter system, hydraulic augers and a laser-cut hammer mill, the 1300B tub grinder is the most popular grinder on the market. Replaceable, one-piece anvil and tub floor wear plates make maintenance easy and reduce downtime. The optional track undercarriage makes it easy to bring the grinder right to the material.

MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.

TORQUE LIMITER: The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.

HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.

HAMMERMILL: Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.

OPTIONAL TRACKS: Bring the grinder to the material with the optional track undercarriage.

  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Replaceable, one-piece anvil and tub floor wear plates make maintenance easy and reduce downtime.



1300B Tub Grinder

The optional track undercarriage makes it easy to bring the grinder right to the material.

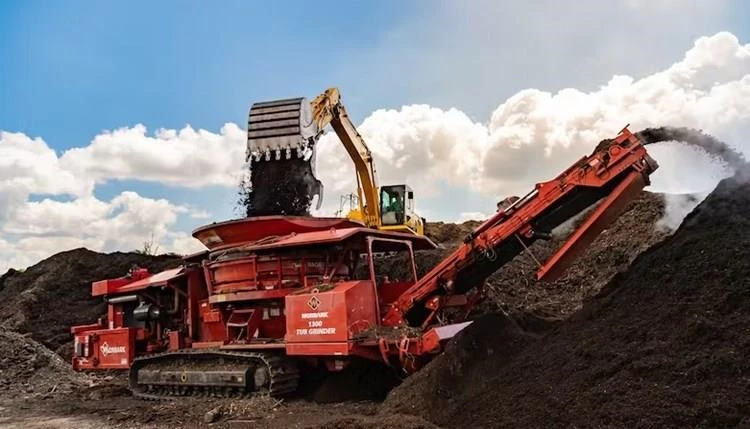

1300B Track Tub Grinder

The track undercarriage makes it easy to bring the grinder right to the material.



Models

  • 1300B Tub Grinder
  • 1300B Track Tub Grinder
Axle
Axle Weight Tub: 50,520 lbs. (NCL)
Optional: 56,000 lbs. (WCL)
Body
Tires Tub: 385/65R/22.5 Super Single Tires
Tongue Weight Tub: 24,060 lbs. (NCL)
Optional: 30,520 lbs. (WCL)
Screen Area 3,730 sq in
Dimensions
Length Tub: 60’10”
Track: 48’8”
Width 11’11”
Weight Tub: 76,500 lbs. (NCL); Optional: 88,000 lbs. (WCL)
Track: 76,500 lbs.
Transport Length Tub: 43’7.5”
Track: 40’9”
Transport Height Tub: 13’6”
Track: 12’
Engine
Engine Make Cat
Horsepower 1,050 HP
Hydraulic Capacity Tub: 174 Gallons
Track: 240 Gallons
Fuel Capacity Tub: 500 Gallons
Track: (2) 300 Gallons
Drivetrain
Tracks Tub: Available on NCL model
Track: SS40 Strickland undercarriage
Operational
Brakes Tub: Air
Towing Arrangement Tub: Fifth Wheel
  • Tub is supported by (16) roller guides carried on 1.5" (3.81 cm) diameter shaft
  • Complete with (24) 2" (5.08 cm) balanced hard-surfaced hammers and (24) 3.06" (7.77 cm) forged double-edged replaceable inserts
  • 1" (2.54 cm) thick wear form steel heavy-duty screens
  • Magnetized end pulley for discharge conveyor, complete with collecting slide tray for ferrous metal removal
  • Remote control with tethered back-up system
  • Dust supression system
  • 11-HP (8.2 kW) air compressor
  • Hydraulic rod pusher



1300B Tub Grinder

  • Discharge system consisting of two 16" (40.64 cm) diameter augers discharge onto a 40" (101.6 cm) x 31' (6.71 m) heavy-duty belt conveyor
  • Tub has 10' (3.04 m) diameter at inside base, and 57" (144.78 cm) deep walls constructed of 0.375" (9.52 mm) structural steel plate, floor constructed of 0.5" (12.7 mm) thick T-1 wear-resistant steel
  • 31" (78.74 cm) x 64" (162.56 cm) hammermill system constructed of heavy-duty 20"(50.8 cm) diameter rotor, (13) 1.875" (4.76 cm) thick two-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 7" (17.78 cm) diameter shaft with 4.44" (11.27 cm) bearings and (8) 2.25" (5.71 cm) hammer retaining rods



1300B Track Tub Grinder

  • Discharge height of 13' (3.96 m) two heavy-duty hydraulic tub drives engine gauge panel and emergency shut-down system
  • 13' (3.96 m) diameter opening across the top, 10' (3.05 m) diameter at inside base, 57" (144.78 cm) deep walls constructed of 0.375" (9.52 mm) structural steel plate, and floor constructed of 0.5" (12.7 mm) thick T-1 wear-resistant steel
  • 31" (78.74 cm) x 64" (162.56 cm) hammermill system constructed of heavy-duty 20"(50.8 cm) diameter rotor, (13) 1.875" (4.76 cm) thick, laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 7" (17.78 cm) diameter shaft with 4.44" (11.27 cm) bearings and (8) 2.25" (5.71 cm) hammer retaining rods
  • 14' (4.27 m) diameter tub flare with flat sides to maintain an 11'11" (3.63 m) width
  • ESPAR heating system for cold-weather start



1300B Tub Grinder

  • Model 400 knuckleboom loader with 36" (91.44 cm) Tarantula grapple, 360° turn motor and stationary operator’s cab

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 1300B Tub Grinder

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 1300B Tub Grinder

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 1300B Tub Grinder for Sale

The Morbark 1300B Tub Grinder combines heavy-duty construction with the latest technology, including the Morbark Integrated Control System, which allows you to monitor critical machine parameters. With a full breakaway torque limiter system, hydraulic augers and a laser-cut hammer mill, the 1300B tub grinder is the most popular grinder on the market. Replaceable, one-piece anvil and tub floor wear plates make maintenance easy and reduce downtime. The optional track undercarriage makes it easy to bring the grinder right to the material.

MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.

TORQUE LIMITER: The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.

HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.

HAMMERMILL: Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.

OPTIONAL TRACKS: Bring the grinder to the material with the optional track undercarriage.

  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Replaceable, one-piece anvil and tub floor wear plates make maintenance easy and reduce downtime.



1300B Tub Grinder

The optional track undercarriage makes it easy to bring the grinder right to the material.

1300B Track Tub Grinder

The track undercarriage makes it easy to bring the grinder right to the material.



Models

  • 1300B Tub Grinder
  • 1300B Track Tub Grinder
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
1300B Tub Grinder
Condition
NEW
Axle
Axle Weight
Tub: 50,520 lbs. (NCL) Optional: 56,000 lbs. (WCL)
Body
Tires
Tub: 385/65R/22.5 Super Single Tires
Tongue Weight
Tub: 24,060 lbs. (NCL) Optional: 30,520 lbs. (WCL)
Screen Area
3,730 sq in
Dimensions
Length
Tub: 60’10” Track: 48’8”
Width
11’11”
Weight
Tub: 76,500 lbs. (NCL); Optional: 88,000 lbs. (WCL) Track: 76,500 lbs.
Transport Length
Tub: 43’7.5” Track: 40’9”
Transport Height
Tub: 13’6” Track: 12’
Engine
Engine Make
Cat
Horsepower
1,050 HP
Hydraulic Capacity
Tub: 174 Gallons Track: 240 Gallons
Fuel Capacity
Tub: 500 Gallons Track: (2) 300 Gallons
Drivetrain
Tracks
Tub: Available on NCL model Track: SS40 Strickland undercarriage
Operational
Brakes
Tub: Air
Towing Arrangement
Tub: Fifth Wheel
