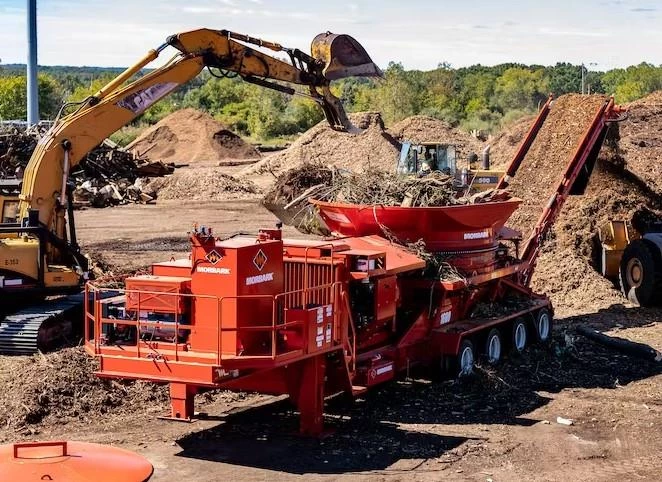

Morbark 1600 Tub Grinder

New Morbark Tub Grinder for Sale

New Morbark 1600 Tub Grinder for Sale

The largest tub grinder on the market, the Morbark 1600 Tub Grinder is able to power through and reduce materials from large land clearing or organic/wood waste programs. With an 11’2″ (3.4 m) tub diameter, 15′ (4.57 m) tub opening and a capacity of 20 cubic yards (15.3 cubic meters) and 1,200 horsepower (895 kW), this machine can power through tons of raw materials from large land-clearing projects and organic/wood waste processing. The Morbark Integrated Control System (MICS) monitors key systems while maximizing performance, and the remote control allows you to quickly adjust feed systems for top production rates and fuel efficiency. With laser-cut, factory-balanced hammermills and three 16″ (40.64 cm) diameter hydraulic augers to quickly move product, this tub grinder gives you optimum production.

  • REMOTE CONTROL: Allows the operator to quickly adjust feed systems to obtain maximum production rates while keeping engine load constant and fuel consumption to a minimum.
  • HYDRAULIC AUGERS: Durable, hard-surfaced steel augers quickly remove product from beneath the mill. Pressure sensors on the auger system automatically slow tub rotation to prevent plugging.
  • HAMMERMILL: Laser cut, factory balanced mill with forged hammers provides optimum grinding power.
  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): The ultimate diagnostic system; monitors hydraulic pressures, temperatures, clutch systems, tub rotation and engine efficiency while automatically adjusting to maximize performance.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Laser-cut, factory-balanced mill with forged hammers provides optimum grinding power.
Axle
Axle Weight 59,920 lbs.
Body
Tires (12) 255/7 OR/22.5
Tongue Weight 41,160 lbs.
Screen Area 5,735 sq in
Dimensions
Length 71’4.75”
Width 11’11”
Weight 101,080-106,020 lbs.
Transport Length 52’2.25”
Transport Height 13’6”
Engine
Engine Make Cat
Horsepower 1,200 HP
Hydraulic Capacity 328 Gallons
Fuel Capacity 606 Gallons
Operational
Brakes Air
Towing Arrangement Fifth wheel
  • Three 16" (40.64 cm) diameter augers discharging onto a 60" (152.4 cm) x 34' (10.36 m) heavy-duty belt conveyor
  • Tub has 11'2" (3.4 m) diameter at inside base, 35" (152.4 cm) deep walls constructed of 0.375" (9.52 mm) reinforced steel plate, and floor constructed of 0.5" (12.7 mm) thick T-1 wear-resistant steel
  • Tub is supported by 16 roller guides carried on (8) 1.5" (3.81 cm) diameter chrome shafts and (8) 2" (5.08 cm) shafts
  • 42" (109.22 cm) x 66 1/2" (175.26 cm) hammermill opening with heavy-duty 28" (71.12 cm) diameter rotors, (16) 1.375" (3.49 cm) thick 2-piece rotor plates keyed on an 8.375" (20.95 cm) diameter rotor shaft with 5.19" (13.17 cm) bearings, (8) 2.5" (6.35 cm) hammer retaining rods
  • Magnetized end pulley for discharge conveyor, complete with collecting slide tray for ferrous metal removal
  • Remote control with tethered back-up system
  • Dust supression system
  • 11-HP (8.2 kW) air compressor
  • Hydraulic rod pusher
  • Tub cover for debris containment
  • ESPAR heating system for cold-weather start
  • VTection System

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 1600 Tub Grinder

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 1600 Tub Grinder

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 1600 Tub Grinder for Sale

The largest tub grinder on the market, the Morbark 1600 Tub Grinder is able to power through and reduce materials from large land clearing or organic/wood waste programs. With an 11’2″ (3.4 m) tub diameter, 15′ (4.57 m) tub opening and a capacity of 20 cubic yards (15.3 cubic meters) and 1,200 horsepower (895 kW), this machine can power through tons of raw materials from large land-clearing projects and organic/wood waste processing. The Morbark Integrated Control System (MICS) monitors key systems while maximizing performance, and the remote control allows you to quickly adjust feed systems for top production rates and fuel efficiency. With laser-cut, factory-balanced hammermills and three 16″ (40.64 cm) diameter hydraulic augers to quickly move product, this tub grinder gives you optimum production.

  • REMOTE CONTROL: Allows the operator to quickly adjust feed systems to obtain maximum production rates while keeping engine load constant and fuel consumption to a minimum.
  • HYDRAULIC AUGERS: Durable, hard-surfaced steel augers quickly remove product from beneath the mill. Pressure sensors on the auger system automatically slow tub rotation to prevent plugging.
  • HAMMERMILL: Laser cut, factory balanced mill with forged hammers provides optimum grinding power.
  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): The ultimate diagnostic system; monitors hydraulic pressures, temperatures, clutch systems, tub rotation and engine efficiency while automatically adjusting to maximize performance.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Laser-cut, factory-balanced mill with forged hammers provides optimum grinding power.
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
1600 Tub Grinder
Condition
NEW
Axle
Axle Weight
59,920 lbs.
Body
Tires
(12) 255/7 OR/22.5
Tongue Weight
41,160 lbs.
Screen Area
5,735 sq in
Dimensions
Length
71’4.75”
Width
11’11”
Weight
101,080-106,020 lbs.
Transport Length
52’2.25”
Transport Height
13’6”
Engine
Engine Make
Cat
Horsepower
1,200 HP
Hydraulic Capacity
328 Gallons
Fuel Capacity
606 Gallons
Operational
Brakes
Air
Towing Arrangement
Fifth wheel
