Morbark 2400X Wood Hog Horizontal Grinder

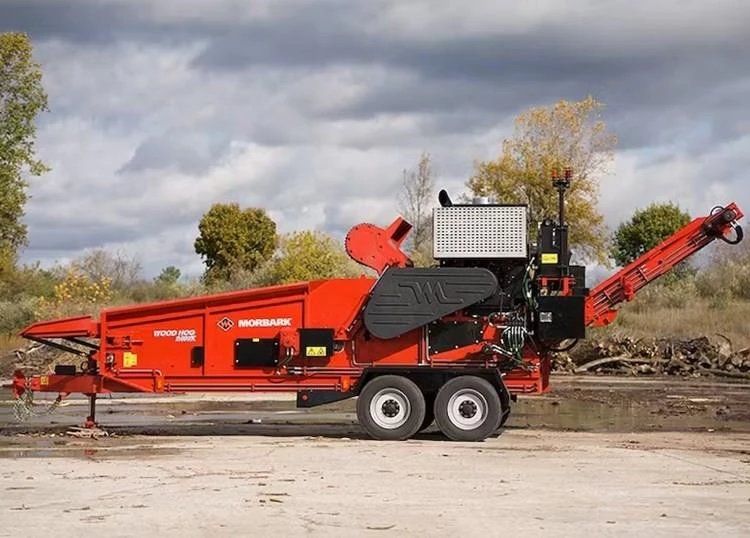

Side of New Morbark Horizontal Grinder for Sale

New Morbark 2400X Wood Hog Horizontal Grinder for Sale

Ideal for niche markets like municipal recycling, pallet recycling, lot clearing, nurseries and tree care debris, the Morbark 2400X Wood Hog Horizontal Grinder is perfect for processing yard waste, brush and other mixed woody feedstock into saleable product. Designed to be modular and available in multiple configurations for various applications, this grinder can take your business to the next level.

  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • GRATE SYSTEM: Single side-load grate system and single side-load anvil allow for single‑person removal.
  • BELT TENSIONING: Adjustable backside flat idler allows the operator to adjust drive belt tensioning with no need to move the engine.
  • FOLDING INFEED TRAY: Manual folding infeed tray is adjustable to various positions; adds 3' (0.91 m) to infeed length when open or close to contain small material
  • HAMMERMILL SYSTEM: Large, 22" x 49.25" (55.88 cm x 125.1 cm) downturn hammermill system with eight 1.25" (3.18 cm) diameter rods and 22 forged heavy‑duty hammers with replaceable inserts; this proven design improves feeding characteristics and provides easy maintenance and durability.
  • TOP FEED ROLL: 20” (50.8 cm) diameter top compression feed roll, with internal drive motor and hydraulic lift yoke, raises to 32 1/16" (812.44 cm), improves the feeding characteristics and reduces maintenance.
  • OPTIONAL TRACKS: Optional Caterpillar 308 track undercarriage with 450mm grouser pads
  • Sloped infeed sides give the operator improved visibility and loading efficiency.
  • Single side-load grate system and single side-load anvil allows for single-person removal.
  • Adjustable backside flat idler allows the operator to adjust drive belt tensioning with no need to move the engine.



Tracked

  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.



Models

  • 2400X Wheeled
  • 2400XT Tracked
Axle
Axle Weight Wheeled: 17,900 lbs.
Body
Tires Wheeled: (4) 235-75R-17.5H
Tongue Weight Wheeled: 2,000 lbs.
Screen Area Wheeled: 1,304”
Tracked: 1,557”
Dimensions
Length Tracked: 35’11”
Width Wheeled: 7’6”
Tracked: 8’1”
Height Tracked: 14’8”
Weight Wheeled: 19,900 lbs.
Tracked: 25,000 lbs.
Transport Length Wheeled: 29’7”
Tracked: 26’9”
Transport Height Wheeled: 11’4”
Tracked: 10’11”
Engine
Engine Make Volvo
Horsepower 234 HP
Hydraulic Capacity 63 Gallons
Fuel Capacity Wheeled: 88 Gallons
Tracked: 93 Gallons
Drivetrain
Tracks Wheeled: Optional-308 Caterpillar Undercarriage
Tracked: Caterpillar 308 Undercarriage with 450mm grouser pads
Operational
Brakes Wheeled: Electric
Towing Arrangement Wheeled: Pintle hitch
Infeed Opening Wheeled: 23” x 53”
Tracked: 19” x 53”

Wheeled

  • Sloped infeed walls for improved visibility
  • Variable speed infeed system consisting of live floor equipped with slat chain
  • Removal bottom infeed clean-out door
  • Hydraulically operated debris containment door
  • Heavy-duty, pinned rotor complete with (18) hammers and (18) replaceable inserts
  • Dual belt discharge consisting of primary aggregate belt conveyor discharge onto a secondary stacking conveyor.
  • NACD 11.5" triple plate clutch
  • Independent adjustable drive belt tensioner
  • Single, side-load grate system made of AR450 steel available in multiple hole sizes and pattern



Tracked

  • 22" x 50.5" (55.88 cm x 128.27 cm) hammermill system with a 4.5" (11.43 cm) diameter shaft and eight 1.25" (3.18 cm) hammer retaining rods; Hammermill pattern complete with (22) 1.25" (3.18 cm) balanced forged heavy-duty hammers and (22) 2" (5.08 cm) wide double-edged replaceable inserts
  • Infeed system consisting of one 20" (50.8 cm) diameter top compression feed roll with internal drive and a 52" wide x 8'2" (132.1 cm x 2.49 m) smooth rubber belt infeed conveyor
  • 36" (91.44 cm) wide chevron discharge conveyor belt, single section stationary 10'6" (3.2 m) height conveyor
  • Single, side-load grate system made of AR450 steel available in multiple hole sizes and patterns
  • Manual folding infeed tray is adjustable to various positions; adds 3' (0.91 m) to infeed length when open or close to contain small material
  • Low-level hydraulic oil tank warning/shutdown
  • Remote-mounted hydraulic oil cooler with reversing fan
  • Remote control with tethered back-up

Wheeled

  • Magnetized end pulley for ferrous metal removal
  • CAT 308 undercarriage with 450 mm triple grouser pads
  • Electric power



Tracked

  • Live floor equipped with slat chain
  • Folding conveyor with 14' 6" (4.42 m) load height
  • Magnetized end pulley for ferrous metal removal
  • Volvo 214 HP Tier III Engine (International Sales Only)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 2400X Wood Hog Horizontal Grinder

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 2400X Wood Hog Horizontal Grinder

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 2400X Wood Hog Horizontal Grinder for Sale

Ideal for niche markets like municipal recycling, pallet recycling, lot clearing, nurseries and tree care debris, the Morbark 2400X Wood Hog Horizontal Grinder is perfect for processing yard waste, brush and other mixed woody feedstock into saleable product. Designed to be modular and available in multiple configurations for various applications, this grinder can take your business to the next level.

  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • GRATE SYSTEM: Single side-load grate system and single side-load anvil allow for single‑person removal.
  • BELT TENSIONING: Adjustable backside flat idler allows the operator to adjust drive belt tensioning with no need to move the engine.
  • FOLDING INFEED TRAY: Manual folding infeed tray is adjustable to various positions; adds 3' (0.91 m) to infeed length when open or close to contain small material
  • HAMMERMILL SYSTEM: Large, 22" x 49.25" (55.88 cm x 125.1 cm) downturn hammermill system with eight 1.25" (3.18 cm) diameter rods and 22 forged heavy‑duty hammers with replaceable inserts; this proven design improves feeding characteristics and provides easy maintenance and durability.
  • TOP FEED ROLL: 20” (50.8 cm) diameter top compression feed roll, with internal drive motor and hydraulic lift yoke, raises to 32 1/16" (812.44 cm), improves the feeding characteristics and reduces maintenance.
  • OPTIONAL TRACKS: Optional Caterpillar 308 track undercarriage with 450mm grouser pads
  • Sloped infeed sides give the operator improved visibility and loading efficiency.
  • Single side-load grate system and single side-load anvil allows for single-person removal.
  • Adjustable backside flat idler allows the operator to adjust drive belt tensioning with no need to move the engine.



Tracked

  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.



Models

  • 2400X Wheeled
  • 2400XT Tracked
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
2400X Wood Hog Horizontal Grinder
Condition
NEW
Axle
Axle Weight
Wheeled: 17,900 lbs.
Body
Tires
Wheeled: (4) 235-75R-17.5H
Tongue Weight
Wheeled: 2,000 lbs.
Screen Area
Wheeled: 1,304” Tracked: 1,557”
Dimensions
Length
Tracked: 35’11”
Width
Wheeled: 7’6” Tracked: 8’1”
Height
Tracked: 14’8”
Weight
Wheeled: 19,900 lbs. Tracked: 25,000 lbs.
Transport Length
Wheeled: 29’7” Tracked: 26’9”
Transport Height
Wheeled: 11’4” Tracked: 10’11”
Engine
Engine Make
Volvo
Horsepower
234 HP
Hydraulic Capacity
63 Gallons
Fuel Capacity
Wheeled: 88 Gallons Tracked: 93 Gallons
Drivetrain
Tracks
Wheeled: Optional-308 Caterpillar Undercarriage Tracked: Caterpillar 308 Undercarriage with 450mm grouser pads
Operational
Brakes
Wheeled: Electric
Towing Arrangement
Wheeled: Pintle hitch
Infeed Opening
Wheeled: 23” x 53” Tracked: 19” x 53”
