Morbark 2455 Stand-Alone Flail

New Stand-Alone Flail for Sale

New Morbark 2455 Stand-Alone Flail for Sale

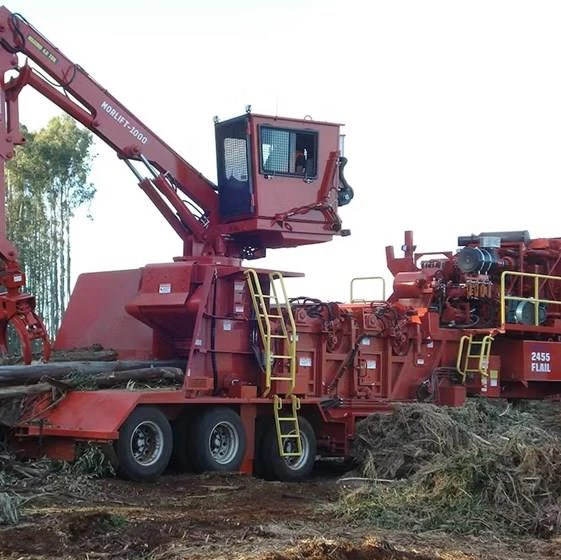

Whether used alone or in combination with a Morbark whole tree chipper to create a total fiber utilization system, the 2455 Stand-Alone Flail is built for maximized output. With three top feed rollers mounted on yoke assemblies, two stationary bottom feed rollers, and a bark discharge conveyor that folds for transport, this machine has many features perfect for whole tree chipping. The enclosed weatherized operator’s cab with color-tinted safety glass helps protect the operator.

  • HYDROSTATIC CONTROLS: Flail drive is a closed-loop hydraulic design with separate hydraulic systems to operate each flail drum. Each system is complete with electric tach and controls in operator’s cab.
  • SPREADER INFEED: This unique infeed system spreads multiple stems apart, which assists with more complete bark removal.
  • OPTIONAL CAB & LOADER: The enclosed operator’s cab includes six-way adjustable seat, joystick controls, combination air conditioner/heater and emergency shut-down system.
  • OPTIONAL GRAPPLE: Mor-Lift Model 500 Knuckleboom Loader has 23′ reach, 270-degree swing and 17,200 lb lift at 10′. Mor-Lift Model 1000 and foot-pedal swing for loader are also available.
  • Flail drive is a closed-loop hydraulic design with separate hydraulic systems to operate each flail drum. Each system is complete with electric tach and controls in operator’s cab.
  • The unique infeed system spreads multiple stems apart, which assists with more complete bark removal.
  • The enclosed operator’s cab includes six-way adjustable seat, joystick controls, combination air conditioner/heater and emergency shut-down system.
  • MICS (Morbark Integrated Control System) monitors hydraulic pressures, temperatures, and engine parameters; controls auto-reversing fan functions and feed functions; and allows utilization of remote diagnostic system.
  • Mor-Lift Model 500 Knuckleboom Loader has 23' reach, 270-degree swing and 17,200 lb lift at 10'. Mor-Lift Model 1000 and foot-pedal swing for loader are also available.
Axle
Axle Weight 52,160 lbs.
Body
Tires 11Rx22.5x16-ply radial
Tongue Weight 45,180 lbs.
Dimensions
Length 48’8”
Width 11’5”
Height 14’5”
Weight 97,340 lbs.
Lifting Height 10’
Reach 23’
Engine
Engine Make Cat
Horsepower 800 HP
Hydraulic Capacity 400 Gallons
Fuel Capacity 240 Gallons
Operational
Brakes Air
Lift Capacity 17,200 lbs.
Swing 270 degree
Tandem Axle Fifth Wheel (Tri-Axle Trailer or Tandem Axle)
  • Heavy-duty spreader feed system with 24" x 55" (60.96 cm x 139.7 cm) infeed opening, consisting of three top feed rolls with synchronized feed rates, mounted on yoke assemblies. The center yoke assembly contains the top flail drum, which hydraulically raises for various diameter wood. Pinch points are 85" (215.9 cm) from the back yoke wheel to the center yoke wheel and 85" (215.9 cm) from center to the front yoke wheel. There are two stationary hydraulically driven bottom feed rolls and a 40" wide x 8' long (101.6 cm x 2.44 m) outfeed conveyor
  • Reversing fan
  • Remote control
  • Discharge system consisting of 72" wide x 23' long (1.83 m x 7.01 m) telescoping drag chain conveyor with hydraulic drive. Debris is bottom discharged into dual 12" (30.48 cm) diameter twig augers
  • Model 500 knuckleboom loader with 442 log grapple, 360° Rotobec turn motor and rotating operator’s cab in lieu of remote control
  • Additional fourth flail drum
  • Push ram discharge in lieu of standard discharge
  • Foot-pedal loader swing for knuckleboom loader
  • ESPAR heating system for dual-engine option

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
