Morbark 3000X Wood Hog Horizontal Grinder

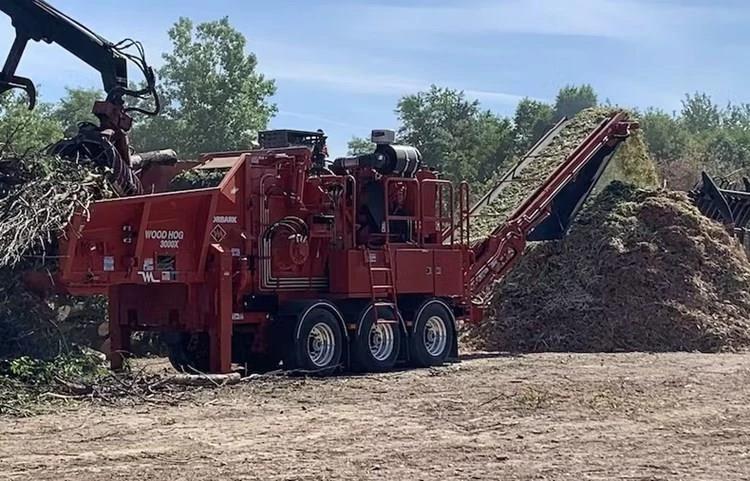

Side of New Morbark working in field

New Morbark 3000X Wood Hog Horizontal Grinder for Sale

Ideal for niche markets like municipal recycling, pallet recycling, lot clearing, nurseries and tree care debris, the Morbark 3000X Wood Hog Horizontal Grinder is perfect for processing yard waste, brush and other mixed woody feedstock into saleable product. The size of the 3000X allows the model to be configured for multiple applications and global markets without additional design considerations.

  • HAMMERMILL SYSTEM: Large hammermill improves feeding characteristics, ease of maintenance and durability, while the configured hammermill pattern maximizes production output.
  • REMOVABLE INFEED FLOOR: Removable infeed chain return floor, which allows excess material to fall away to minimize the wear on the floor, bed chain and inserts, particularly useful in land‑clearing or other applications with dirty material.
  • TORQUE LIMITER: Externally adjustable break-away torque limiter protects the driveline and hammermill from catastrophic damage.
  • SLOPED INFEED SIDES: Sloped infeed sides give the operator improved visibility and loading efficiency.
  • Sloped infeed sides give the operator improved visibility and loading efficiency.
  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • Removable infeed chain return floor, which allows excess material to fall away to minimize the wear on the floor, bed chain and inserts, is particularly useful in land‑clearing or other applications with dirty material.
  • Externally adjustable break-away torque limiter protects the driveline and hammermill from catastrophic damage.
  • Hydraulic hinged door allows quick and easy access for changing grates.
  • Externally adjustable bolt allows the operator to adjust drive belt tension with no need to move engine.



Models

  • 3000X Wheeled
  • 3000XT Tracked
Axle
Axle Weight Wheeled: 52,000 lbs.
Body
Tongue Weight 2,000 lbs.
Screen Area Wheeled: 3,785”
Tracked: 3,775”
Dimensions
Length Wheeled: 48’1”
Tracked: 48’1”
Width Wheeled: 8’3”
Tracked: 8’2”
Height Wheeled: 14’8”
Tracked: 14’6”
Weight Wheeled: 54,000 lbs.
Tracked: 60,700 lbs.
Transport Length Wheeled: 30’6”
Tracked: 30’2”
Transport Height Wheeled: 12’2”
Tracked: 12’
Engine
Engine Make Cat
Horsepower 350-577 HP
Hydraulic Capacity 85 Gallons
Fuel Capacity 175 Gallons
Drivetrain
Tracks Wheeled: Optional
Tracked: Cat 320L Double/Triple Grousers
Operational
Towing Arrangement Pintle Hitch or Fifth Wheel
Infeed Opening 57.5” x 38”

Wheeled

  • Variable speed infeed system consists of one 34" (86.36 cm) diameter top compression feed roll with internal drive and a 12' long x 57.5" (3.66 m x 146 cm) wide live floor designed to accept both WD120 and slat chain.
  • 32" x 58.5" (81.28 cm x 149 cm) hammermill system with (16) 58.125" (2.86 cm) thick one-piece laser-cut rotor plates keyed on a 7.25" (18.41 cm) diameter shaft with 4.44" (11.27 cm) bearings and eight 2.25" (5.7 cm) hammer retaining rods. Hammermill pattern has (18), 2" (5.08 cm) balanced forged heavy-duty hammers, (18) 3.06" (7.78 cm) wide double-edged replaceable inserts and 18 rakers.
  • Discharge system consists of a hydraulically driven, horizontal 42" x 19'9" (106.68 cm x 6.02 m) aggregate belt conveyor discharging onto a 36" (91.44 cm) wide x 14'6" (4.42 m) high stacking conveyor with hydraulic fold for transport
  • Large hammermill improves feeding characteristics, ease of maintenance and durability, while the configured hammermill pattern maximizes production output.
  • Removable infeed chain return floor, which allows excess material to fall away to minimize the wear on the floor, bed chain and inserts, particularly useful in land‑clearing or other applications with dirty material.
  • Externally adjustable break-away torque limiter protects the driveline and hammermill from catastrophic damage.



Tracked

  • Variable speed infeed system consists of one 34" (86.36 cm) diameter top compression feed roll with internal drive and a 12' long x 57.5" (3.66 m x 146 cm) wide live floor designed to accept both WD120 and slat chain.
  • 32" x 58.5" (81.28 cm x 149 cm) hammermill system with (16) 58.125" (2.86 cm) thick one-piece laser-cut rotor plates keyed on a 7.25" (18.41 cm) diameter shaft with 4.44" (11.27 cm) bearings and eight 2.25" (5.7 cm) hammer retaining rods. Hammermill pattern has (18), 2" (5.08 cm) balanced forged heavy-duty hammers, (18) 3.06" (7.78 cm) wide double-edged replaceable inserts and 18 rakers.
  • Discharge system consists of a hydraulically driven, horizontal 42" x 19'9" (106.68 cm x 6.02 m) aggregate belt conveyor discharging onto a 36" (91.44 cm) wide x 14'6" (4.42 m) high stacking conveyor with hydraulic fold for transport
  • Large hammermill improves feeding characteristics, ease of maintenance and durability, while the configured hammermill pattern maximizes production output.
  • Removable infeed chain return floor, which allows excess material to fall away to minimize the wear on the floor, bed chain and inserts, particularly useful in land‑clearing or other applications with dirty material.
  • Externally adjustable break-away torque limiter protects the driveline and hammermill from catastrophic damage.

Wheeled

  • Hydraulic Rod Puller
  • Magnetized end pulley with collecting slide tray for ferrous metal removal
  • Side Underrun Protection



Tracked

  • Hydraulic Rod Puller
  • Magnetized end pulley with collecting slide tray for ferrous metal removal
  • Side Underrun Protection
  • Patent-pending, Vtection® Vibration Detection System

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 3000X Wood Hog Horizontal Grinder

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 3000X Wood Hog Horizontal Grinder

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 3000X Wood Hog Horizontal Grinder for Sale

Ideal for niche markets like municipal recycling, pallet recycling, lot clearing, nurseries and tree care debris, the Morbark 3000X Wood Hog Horizontal Grinder is perfect for processing yard waste, brush and other mixed woody feedstock into saleable product. The size of the 3000X allows the model to be configured for multiple applications and global markets without additional design considerations.

  • HAMMERMILL SYSTEM: Large hammermill improves feeding characteristics, ease of maintenance and durability, while the configured hammermill pattern maximizes production output.
  • REMOVABLE INFEED FLOOR: Removable infeed chain return floor, which allows excess material to fall away to minimize the wear on the floor, bed chain and inserts, particularly useful in land‑clearing or other applications with dirty material.
  • TORQUE LIMITER: Externally adjustable break-away torque limiter protects the driveline and hammermill from catastrophic damage.
  • SLOPED INFEED SIDES: Sloped infeed sides give the operator improved visibility and loading efficiency.
  • Sloped infeed sides give the operator improved visibility and loading efficiency.
  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • Removable infeed chain return floor, which allows excess material to fall away to minimize the wear on the floor, bed chain and inserts, is particularly useful in land‑clearing or other applications with dirty material.
  • Externally adjustable break-away torque limiter protects the driveline and hammermill from catastrophic damage.
  • Hydraulic hinged door allows quick and easy access for changing grates.
  • Externally adjustable bolt allows the operator to adjust drive belt tension with no need to move engine.



Models

  • 3000X Wheeled
  • 3000XT Tracked
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
3000X Wood Hog Horizontal Grinder
Condition
NEW
Axle
Axle Weight
Wheeled: 52,000 lbs.
Body
Tongue Weight
2,000 lbs.
Screen Area
Wheeled: 3,785” Tracked: 3,775”
Dimensions
Length
Wheeled: 48’1” Tracked: 48’1”
Width
Wheeled: 8’3” Tracked: 8’2”
Height
Wheeled: 14’8” Tracked: 14’6”
Weight
Wheeled: 54,000 lbs. Tracked: 60,700 lbs.
Transport Length
Wheeled: 30’6” Tracked: 30’2”
Transport Height
Wheeled: 12’2” Tracked: 12’
Engine
Engine Make
Cat
Horsepower
350-577 HP
Hydraulic Capacity
85 Gallons
Fuel Capacity
175 Gallons
Drivetrain
Tracks
Wheeled: Optional Tracked: Cat 320L Double/Triple Grousers
Operational
Towing Arrangement
Pintle Hitch or Fifth Wheel
Infeed Opening
57.5” x 38”
