Morbark 3400X Wood Hog Horizontal Grinder

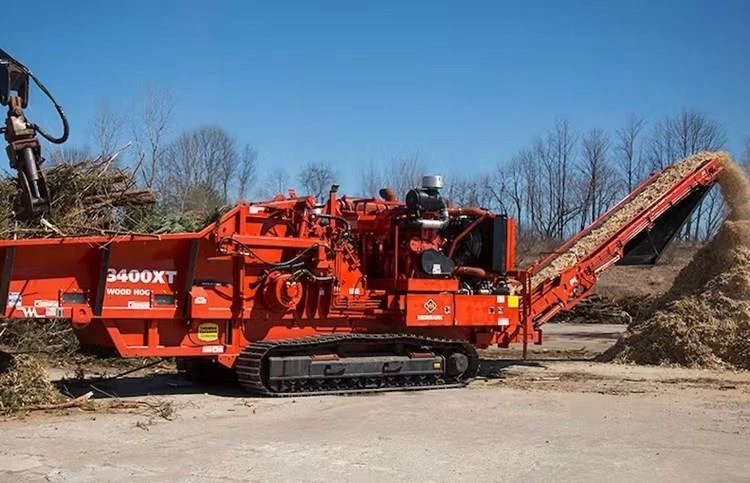

New Morbark working in field

New Morbark 3400X Wood Hog Horizontal Grinder for Sale

Listening closely to customer feedback while developing the design for the 3400X Wood Hog, Morbark provides the features customers want and the versatility they need, while staying true to our proven technology. One of the most important features of the 3400X is that it can be made as narrow as 8'4" (2.53 m), making it within the legal transport width in any country, no matter what engine is used.

With 800 horsepower (596 kW), this model is ideal for a broad range of applications in a wide variety of markets worldwide. Like all of Morbark Wood Hog models, the 3400X also is available with electric power. The size of the 3400X allows the model to be configured for multiple applications and global markets without additional design considerations.

  • SLOPED INFEED SIDES: Sloped infeed sides and an additional 24″ (60.96 cm) infeed length gives the operator improved visibility and loading efficiency.
  • EXTENDED MAINTENANCE PLATFORM: The area between the hood and the engine has been reconfigured to provide an additional 12 inches (30.48 cm) of working space, for better access to components for general maintenance or to change screens.
  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • FEED SYSTEM: Internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
  • EXTERNALLY ADJUSTABLE BREAK-AWAY TORQUE LIMITER: Flexible, easily adjustable torque limiter helps protect the driveline and hammermill for damage.
  • ELECTRIC POWER: Electric power is available as an option for a cleaner and often more cost-effective way to process organic waste.

Wheeled

  • One of the most important features of the 3400X is that it can be made as narrow as 8'6" (2.59 m), making it within the legal transport width in any country, no matter what engine is used.
  • Sloped infeed sides and an additional 24" (60.96 cm) infeed length gives the operator improved visibility and loading efficiency.
  • The area between the hood and the engine has been reconfigured to provide an additional 12" (30.48 cm) of working space, for better access to components for general maintenance or to change screens.
  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • The hydraulic hinged door allows quick and easy access for changing grates.
  • The internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
  • A proven drive line protection system protects against catastrophic damage from contaminants.
  • Electric power is available as an option for a cleaner and often more cost‑effective way to process organic waste.

Tracked

  • One of the most important features of the 3400XT is that it can be made as narrow as 8'6" (2.59 m), making it within the legal transport width in any country, no matter what engine is used.
  • Sloped infeed walls for improved visibility
  • Extended area between the hood and engine provides more working space for better access to components for general maintenance or to change screens.
  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • The hydraulic hinged door allows quick and easy access for changing grates.
  • The internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
  • A proven drive line protection system protects against catastrophic damage from contaminants.



Models

  • 3400X Wheeled
  • 3400XT Tracked
Axle
Axle Weight Wheeled: 40,460 lbs.
Body
Tongue Weight Wheeled: 19,260 lbs.
Screen Area 3,785”
Dimensions
Length 57’9”
Width 8’6”
Height 16’0.5”
Weight Wheeled: 60,000 lbs.
Tracked: 71,900 lbs.
Transport Length 38’2”
Transport Height Wheeled: 12’
Tracked: 12’2.5”
Engine
Engine Make Cat
Horsepower 800 HP
Hydraulic Capacity 100 Gallons
Fuel Capacity 300 Gallons
Drivetrain
Tracks Wheeled: Optional
Tracked: 320L Caterpillar 500 mm undercarriage with triple grousers
Operational
Infeed Opening 57.5” x 44”

Wheeled

  • Sloped infeed walls for improved
  • Extended area between the hood and engine provides more working space for better access to components for general maintenance or to change screens.
  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • The hydraulic hinged door allows quick and easy access for changing grates.
  • The internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
  • A proven drive line protection system protects against catastrophic damage from contaminants.
  • Remote control with tethered back-up system
  • Variable speed infeed system consists of one 34" (86.36 cm) diameter top compression feed roll with internal drive and a 16' long x 57.5" (4.88 m x 146 cm) wide live floor equipped with four strands of WDH-120 chain in a staggered configuration
  • 32" x 58.5" (81.28 cm x 149 cm) hammermill system with a 7.25" (18.41 cm) diameter shaft and eight 2.25" (5.7 cm) hammer retaining rods. Hammermill with multiple patterns available.
  • Removable infeed chain return floor
  • Discharge system consists of a hydraulically driven, horizontal 42" x 19'9" (106.68 cm x 6.02 m) aggregate belt conveyor discharging onto a 36" (91.44 cm) wide stacking conveyor with hydraulic fold for transport
  • Magnetized end pulley with collecting slide tray for ferrous metal removal
  • 11-hp (8.2 kW) air compressor



Tracked

  • Variable speed infeed system consists of one 34" (86.36 cm) diameter top compression feed roll with internal drive and a 16' long x 57.5" (4.88 m x 146 cm) wide live floor equipped with four strands of WDH-120 chain in a staggered configuration
  • 32" x 58.5" (81.28 cm x 149 cm) hammermill system constructed of heavy-duty 20" (50.8 cm) diameter rotor, (16) 58.125" (2.86 cm) thick two-piece laser-cut rotor plates to ensure precisions and enforce steel strength. The plates are keyed on a 7.25" (18.41 cm) diameter shaft with 4.44" (11.27 cm) bearings on both ends of the rotor and eight 2.25" (5.7 cm) hammer retaining rods. Hammermill pattern has (18), 2" (5.08 cm) balanced forged heavy-duty hammers, (18) 3.06" (7.78 cm) wide double-edged replaceable inserts and 18 rakers
  • Removable infeed chain return floor
  • Automatic reversing fan system
  • Dust suppression system
  • Hydraulically operated debris containment door
  • Discharge system consists of a hydraulically driven, horizontal 42" x 19'9" (106.68 cm x 6.02 m) aggregate belt conveyor discharging onto a 36" (91.44  cm) wide stacking conveyor with hydraulic fold for transport
  • Remote control with tethered back-up system
  • Externally adjustable break-away torque limiter
  • Magnetized end pulley with collecting slide tray for ferrous metal removal
  • 11-hp (8.2 kW) air compressor with lockable enclosure
  • Hydraulic Rod Puller
  • ESPAR heating system for cold-weather start
  • Spare Grate Rack

Wheeled

  • Hydraulic Rod Puller
  • ESPAR heating system for cold-weather start

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 3400X Wood Hog Horizontal Grinder

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 3400X Wood Hog Horizontal Grinder

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 3400X Wood Hog Horizontal Grinder for Sale

Listening closely to customer feedback while developing the design for the 3400X Wood Hog, Morbark provides the features customers want and the versatility they need, while staying true to our proven technology. One of the most important features of the 3400X is that it can be made as narrow as 8'4" (2.53 m), making it within the legal transport width in any country, no matter what engine is used.

With 800 horsepower (596 kW), this model is ideal for a broad range of applications in a wide variety of markets worldwide. Like all of Morbark Wood Hog models, the 3400X also is available with electric power. The size of the 3400X allows the model to be configured for multiple applications and global markets without additional design considerations.

  • SLOPED INFEED SIDES: Sloped infeed sides and an additional 24″ (60.96 cm) infeed length gives the operator improved visibility and loading efficiency.
  • EXTENDED MAINTENANCE PLATFORM: The area between the hood and the engine has been reconfigured to provide an additional 12 inches (30.48 cm) of working space, for better access to components for general maintenance or to change screens.
  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • FEED SYSTEM: Internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
  • EXTERNALLY ADJUSTABLE BREAK-AWAY TORQUE LIMITER: Flexible, easily adjustable torque limiter helps protect the driveline and hammermill for damage.
  • ELECTRIC POWER: Electric power is available as an option for a cleaner and often more cost-effective way to process organic waste.

Wheeled

  • One of the most important features of the 3400X is that it can be made as narrow as 8'6" (2.59 m), making it within the legal transport width in any country, no matter what engine is used.
  • Sloped infeed sides and an additional 24" (60.96 cm) infeed length gives the operator improved visibility and loading efficiency.
  • The area between the hood and the engine has been reconfigured to provide an additional 12" (30.48 cm) of working space, for better access to components for general maintenance or to change screens.
  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • The hydraulic hinged door allows quick and easy access for changing grates.
  • The internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
  • A proven drive line protection system protects against catastrophic damage from contaminants.
  • Electric power is available as an option for a cleaner and often more cost‑effective way to process organic waste.

Tracked

  • One of the most important features of the 3400XT is that it can be made as narrow as 8'6" (2.59 m), making it within the legal transport width in any country, no matter what engine is used.
  • Sloped infeed walls for improved visibility
  • Extended area between the hood and engine provides more working space for better access to components for general maintenance or to change screens.
  • The Morbark Integrated Control Systems (MICS) automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • The hydraulic hinged door allows quick and easy access for changing grates.
  • The internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
  • A proven drive line protection system protects against catastrophic damage from contaminants.



Models

  • 3400X Wheeled
  • 3400XT Tracked
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
3400X Wood Hog Horizontal Grinder
Condition
NEW
Axle
Axle Weight
Wheeled: 40,460 lbs.
Body
Tongue Weight
Wheeled: 19,260 lbs.
Screen Area
3,785”
Dimensions
Length
57’9”
Width
8’6”
Height
16’0.5”
Weight
Wheeled: 60,000 lbs. Tracked: 71,900 lbs.
Transport Length
38’2”
Transport Height
Wheeled: 12’ Tracked: 12’2.5”
Engine
Engine Make
Cat
Horsepower
800 HP
Hydraulic Capacity
100 Gallons
Fuel Capacity
300 Gallons
Drivetrain
Tracks
Wheeled: Optional Tracked: 320L Caterpillar 500 mm undercarriage with triple grousers
Operational
Infeed Opening
57.5” x 44”
