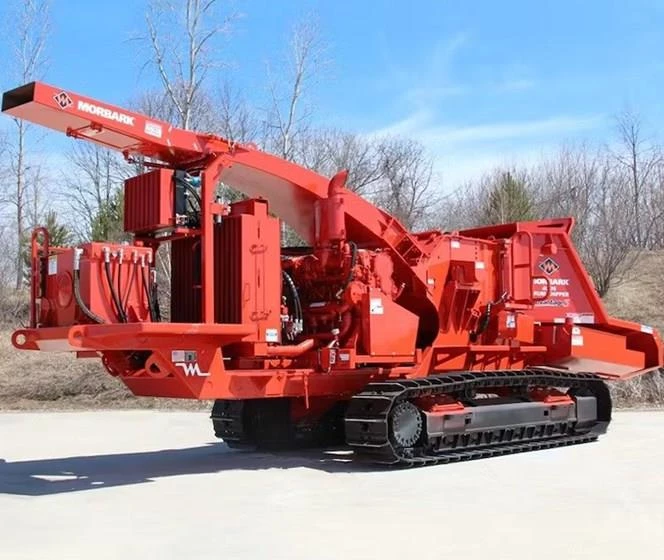

Morbark 40/36 Whole Tree Drum Chipper

New Drum Chipper for Sale

New Morbark 40/36 Whole Tree Drum Chipper for Sale

The Morbark 40/36 Whole Tree Drum Chipper is a compact, affordable, productive drum chipper designed with the biomass industry in mind. Equipped with the same internal drive perfected on Morbark horizontal grinders, along with an extra wide feed opening, the 40/36 aggressively feeds brushy tops and limbs, quickly and effortlessly filling a chip van to maximum legal load capacity. Morbark’s Advantage 3 Drum produces more consistent chips, while the heat-treated, AR-450 steel drum skin provides longer wear life for lower replacement costs and less downtime. The feed system is more efficient due to a staggered knife configuration and contains fewer moving parts, reducing maintenance. With low fuel consumption per ton produced, this unit is economical. At 8’6″ (2.59 m) wide this compact unit is easily transportable and requires no permits to move.

  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • DRUM: The Advantage 3™ drum creates more uniform chips, and reduces operating and maintenance costs.
  • DISCHARGE: Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • INFEED SYSTEM: Aggressive live floor and large top feedwheel ensure positive feed of brushy tops and limbs.

Microchipper

The MicroChipper package includes 12-knife drum, chip accelerator and 3x3 grate system.

  • The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • Aggressive live floor and large top feedwheel ensure positive feed of brushy tops and limbs.
  • Straight discharge chute includes a mechanically driven chip accelerator to fully load vans with the micro-chips and a hydraulically operated chip deflect with vertical and horizontal adjustment.



Track

  • The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • The optional, operator-friendly, slide-in forestry grate system reduces oversized chips for more consistent, higher-quality chips.
  • A mechanically driven chip accelerator (optional) fully loads vans with chips.

Whole

  • The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • Aggressive live floor and large top feed wheel ensure positive feed of brushy tops and limbs.



Models

  • 40/36 NCL
  • 40/36 NCL Track
  • 40/36 Microchipper
Axle
Axle Weight 31,750 lbs. (Microchipper & Whole)
Body
Tires (4) 385/65R/22.5 20-ply Super Singles
Knives Babbitt-style
Chipper: (16) 11” x 7.31” x 0.75” thick (Microchipper)
Counter: (16) 11” x 6.375” x 0.75” thick (Microchipper)
Chipper: (8) 11” x 7.31” x 0.75” thick (Track & Whole)
Counter: (8) 11” x 6.375” x 0.5” thick (Track & Whole)
Tongue Weight 22,750 lbs. (Microchipper & Whole)
Dimensions
Length 37’6” (Microchipper)
32’8” (Track)
37’5” (Whole)
Width 8’6” (Microchipper & Whole)
9’10” (Track)
Height 12’3” (Microchipper)
11’6” (Track)
12’5” (Whole)
Weight 54,500 lbs. (Microchipper)
58,580 lbs. (Track)
4,500 lbs. (Whole)
Engine
Engine Make Cat
Horsepower 800 HP
Hydraulic Capacity 187 gallons (Microchipper & Whole)
100 gallons (Track)
Fuel Capacity 300 gallons
Drivetrain
Tracks Optional (Microchipper & Whole)
320L Caterpillar undercarriage (Track)
Track Width 9’10”
Track Length 32’8”
Track Weight 56,750 lbs.
Track Height 11’6”
Operational
Brakes Air
Drum Width 43.5”
Drum Diameter 36”
Drum Speed 968 RPM
Chipping Capacity 24”
Tandem Axle 36,000 lbs. leaf spring suspension
Towing Arrangement Fifth Wheel
Feed Drive Hydraulic
Infeed Opening 40” x 39”

Microchipper

  • Sloped Infeed System consists of one 30" (76.2 cm) diameter top compression feed roll with internal drive and a 40" (101.6 cm) wide x 12'6" (3.81 m) long live floor equipped with three strands of WDH-120 chain in a staggered configuration
  • Discharge clean-out door on bottom
  • Wireless remote control with a 60' (18.28 m) tethered remote back-up system for chipper operation. Functions include forward/reverse of feed works, up and down of top feed roll, operation of chip discharge chute and throttle
  • Hydraulic feed drive
  • Automatic reversing fan system
  • Rear hydraulic stabilizers
  • Light package
  • 11-HP (8.2 kW) air compressor with lockable enclosure



Track

  • Sloped Infeed System consists of one 30" (76.2 cm) diameter top compression feed roll with internal drive, 14" (35.56 cm) diameter bottom feed wheel and a 40" (101.6 cm) wide x 10'6" (3.2 m) long live floor equipped with three strands of WDH-120 chain in a staggered configuration.
  • Wireless remote control with a 60' (18.28 m) tethered remote back-up system for chipper operation. Functions include forward/reverse of feed works, up and down of top feed roll, operation of chip discharge spout, engine throttle E-stop and track forward and reverse.
  • Straight discharge chute and a hydraulically operated chip deflect with vertical and horizontal adjustment.
  • Discharge clean-out door on bottom
  • Hydraulic feed drive
  • Automatic reversing fan system
  • Light package
  • 11-HP (8.2 kW) air compressor with lockable enclosure



Whole

  • Sloped Infeed System consists of one 30" (76.2 cm) diameter top compression feed roll with internal drive, a 14" (35.56 cm) diameter bottom feed wheel and a 40" (101.6 cm) wide x 12'6" (3.81 m) long live floor equipped with three strands of WDH-120 chain in a staggered configuration
  • Straight discharge chute and a hydraulically operated chip deflect with vertical and horizontal adjustment
  • Discharge clean-out door on bottom
  • Wireless remote control with a 60' (18.28 m) tethered remote back-up system for chipper operation. Functions include forward/reverse of feed works, up and down of top feed roll, operation of chip discharge chute and throttle
  • Hydraulic feed drive
  • Automatic reversing fan system
  • Rear hydraulic stabilizers
  • Light package
  • 11-HP (8.2 kW) air compressor with lockable enclosure
  • ESPAR heating system for cold-weather start
  • Top-load discharge



Track

  • Mechanically driven chip accelerator that fully loads vans with chips
  • MicroChipper package: to include 12-knife drum, chip accelerator and 3x3 grate system



Whole

  • Mechanically driven chip accelerator that fully loads vans with chips
  • MicroChipper package: to include 16-knife drum, chip accelerator and 3x3 grate system

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
