Morbark 950 Tub Grinder

New Tub Grinder for Sale

New Morbark 950 Tub Grinder for Sale

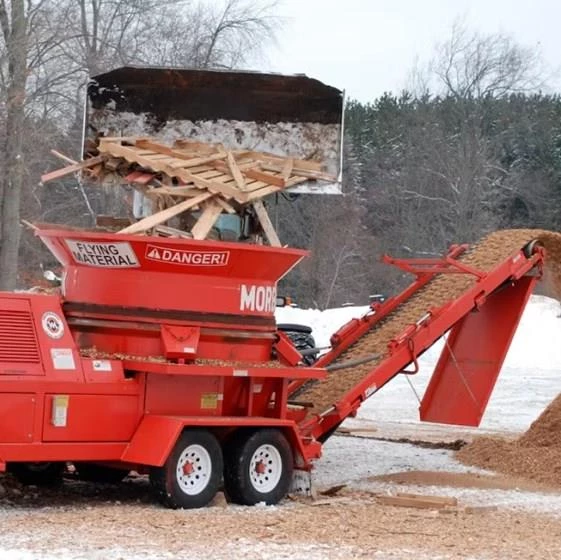

Compact and easy-to-haul, Morbark 950 Tub Grinders are ideal for converting yard and wood waste, pallets and other mixed woody feedstocks into saleable products. The 950 tub grinder is equipped with a proven drive line protection system that protects against catastrophic damage from contaminants. Hydraulic augers quickly remove product from beneath the mill; laser-cut, factory-balanced hammermills with forged hammers offer smooth operation; full breakaway torque limiter protects the engine and clutch against overload without stalling; and tub tilt provides easy access to grates and anvil for maintenance.

  • HAMMERMILL: Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • TORQUE LIMITER: The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • TUB TILT: Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
  • Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full break-away torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Hydraulic tub tilt provides easy access to grates and anvil for routine maintenance.
Body
Tires LT235/75R17.5
Screen Area 1,612 sq in
Dimensions
Length 29’5”
Width 8’4”
Weight 14,150 lbs.
Transport Length 22’
Transport Height 12’5”
Engine
Engine Make Cat
Horsepower 275 HP
Hydraulic Capacity 50 Gallons
Fuel Capacity 58 Gallons
Operational
Brakes Electric
Towing Arrangement Pintle hitch
  • Two 12" (30.48 cm) diameter augers discharge onto a 28" (71.12 cm) x 12' (3.66 m) upright discharge conveyor.
  • 8'4" (2.54 m) diameter opening across the top, 6'6" (1.98 m) diameter inside base, and 44" (111.76 cm) deep walls constructed of 0.25" (.63 cm) reinforced steel plate, floor constructed of 0.25" (.63 cm) thick T-1 wear-resistant steel
  • Tub supported by 5 rubber tire guide rolls
  • 22.5"(57.15 cm) x 32.5" (82.55 cm) hammermill system constructed of heavy-duty 16" (40.64 cm) diameter laser-cut rotor, (13) 1.125" (34 cm) thick 2-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 4.5" (11.43 cm) diameter rotor shaft with 2.94" (7.46 cm) bearings direct driven at engine RPM and eight 1.25" (3 cm) hammer retaining rods
  • Magnetized end pulley for discharge conveyor, complete with collecting slide tray for ferrous metal removal
  • Remote control with tethered back-up system
  • Dust supression system
  • Fifth wheel towing arrangment with single axle
  • 1/3 tub cover
  • Dual tub slide tray assembly
