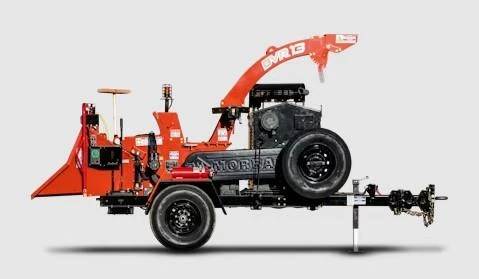

Morbark BVR13 Brush Chipper

New Morbark Brush Chipper

Morbark BVR13 Brush Chipper for Sale

Require more features than the BVR10 brush chipper offers? Elevate to the BVR13 Brush Chipper with additional features such as dual feed wheels, hydraulic lift and crush, higher horsepower, manual crank discharge, and available winch package option.

Remove the anxiety of engaging the chipper drum, damaged drive belts, and burned clutch discs and elevate your operating experience with the exclusive Morbark ZeroClutch.™ Simply start, throttle the machine to full RPM's and engage the feed control bar. The Morbark ZeroClutch features an integrated drum speed sensor that monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum.

FEATURES AND BENEFITS

  • Hydraulic lift and crush gives additional crushing power for stubborn material.
  • Infeed-mounted control panel for increased jobsite efficiency.
  • Modular design makes maintenance and repairs fast and easy.
  • Morbark ZeroClutch™ monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum.
  • Reverse pivot assembly gives mechanical advantage for increased down pressure.
  • Side load anvil for quick adjustment and flipping of the anvil.
Body
Frame 5” C-Channel
Tires (2) 235/80R x16
Dimensions
Length 15’6”
Width 7’1”
Height 8’9”
Weight 6,000 lbs.
Engine
Engine Make PSI Deutz
Horsepower 74-133 HP
Hydraulic Capacity 7 Gallons
Fuel Capacity 17 Gallons
Operational
Suspension 7,000 lbs. Torsion
Drum Width 16.5”
Drum Diameter 18”
Hitch 2.5” Pintle
Infeed Opening Height 30”
Infeed Opening Width 60”
Throat Opening Height 14”
Throat Opening Width 17.25”
  • Choice of gas or diesel engine.
  • Composite fuel and hydraulic tanks.
  • Croft style hitch with multiple height adjustments.
  • Staggered knife pocket drum with two (2) dual-edged chipper knives.
  • 3 position electronic control bar with dual safety pull cables within infeed.
  • 360° manual crank discharge with multiple locking positions.
  • Hydraulic lift and crush: Hydraulic lift and crush gives additional crushing power for large branches and stubborn material.
  • ZeroClutch Technology: Morbark's patented ZeroClutch™ technology removes the anxiety of engaging the chipper drum, damaged drive belts, and burned clutch discs. Simply start, throttle the machine to full RPM's and engage the feed control bar. The Morbark ZeroClutch features an integrated drum speed sensor that monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum.
  • Modular Design: The updated modular design of the BVR brush chipper line makes maintenance and repairs fast and easy.
  • Infeed-Mounted Control Panel: The infeed-mounted control panel provides a more convenient location for operators, helping increase jobsite efficiency.
  • Side Load Anvil: The side load anvil helps streamline maintenance and provides quick adjustment and flipping of the anvil.
  • Bottom Bump Bar
  • Cone Holder
  • Chocks/Chock Holder
  • Fire Extinguisher
  • Pusher Paddle
  • Rubber Infeed Curtain
  • Spare Tire and Mount
  • Strobe Light
  • Toolbox
  • Winch Package
  • 12" & 18" Hitch Extension

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL BVR13 Brush Chipper

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark BVR13 Brush Chipper

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

Morbark BVR13 Brush Chipper for Sale

Require more features than the BVR10 brush chipper offers? Elevate to the BVR13 Brush Chipper with additional features such as dual feed wheels, hydraulic lift and crush, higher horsepower, manual crank discharge, and available winch package option.

Remove the anxiety of engaging the chipper drum, damaged drive belts, and burned clutch discs and elevate your operating experience with the exclusive Morbark ZeroClutch.™ Simply start, throttle the machine to full RPM's and engage the feed control bar. The Morbark ZeroClutch features an integrated drum speed sensor that monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum.

FEATURES AND BENEFITS

  • Hydraulic lift and crush gives additional crushing power for stubborn material.
  • Infeed-mounted control panel for increased jobsite efficiency.
  • Modular design makes maintenance and repairs fast and easy.
  • Morbark ZeroClutch™ monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum.
  • Reverse pivot assembly gives mechanical advantage for increased down pressure.
  • Side load anvil for quick adjustment and flipping of the anvil.
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
BVR13 Brush Chipper
Condition
NEW
Body
Frame
5” C-Channel
Tires
(2) 235/80R x16
Dimensions
Length
15’6”
Width
7’1”
Height
8’9”
Weight
6,000 lbs.
Engine
Engine Make
PSI Deutz
Horsepower
74-133 HP
Hydraulic Capacity
7 Gallons
Fuel Capacity
17 Gallons
Operational
Suspension
7,000 lbs. Torsion
Drum Width
16.5”
Drum Diameter
18”
Hitch
2.5” Pintle
Infeed Opening Height
30”
Infeed Opening Width
60”
Throat Opening Height
14”
Throat Opening Width
17.25”
