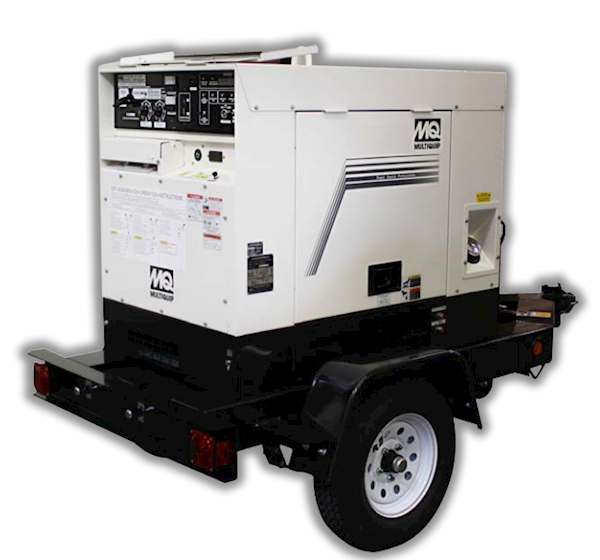

New Multiquip DAW500SA4 Diesel-Powered Welder/Generator for Sale

These diesel-powered welder / generators feature smoother arc characteristics and more consistent, quality welds. Multiquip's simultaneous operation models range from 180 to 500 amps as welders and 3 to 14 kilowatts as generators.

The DAW500SA4 equipped with Kubota's Tier 4 D1803 engine is a CC (constant current), CV (constant voltage) welder that delivers up to 500 amps of DC welding output. This model is ideal for very large projects that demand high current for penetration when welding or for Carbon cutting. As a generator it provides up to 3kW of 120/240 volt AC power and can used simultaneously as a welder and generator. CC and CV welding capabilities

  • Voltage regulation is maintained at ±10%
  • Showcases a clean burning Tier 4 final EPA-approved Kubota diesel engine
  • Electric-start, Lifting bail, external oil / fuel drains come as standard features
  • Excels in SMAW, FCAW, GMAW, GTAW and ACAC welding processes
  • Average rated load sound is 74 dB at 23 feet
Engine
Engine Make Kubota
Engine Model D-1803
Fuel Type Diesel
Fuel Consumption 1.3 gph at rated load
Fuel Tank Capacity 12 gal.
Starting System Electric
Operational
DC Output 120V
Maximum AC Output 3 kW
Rated AC Current 25A
AC Frequency 50/60 Hz
DC Current CC: 500A
CV: 500A
DC Voltage CC: 38V
CV: 16-40V
Measurements
Length 52 in. (1,330 mm)
Width 32 in. (800 mm)
Height 44.5 in. (1,130 mm)
Weight 1,302 lbs. (591 kg) operating
1,175 lbs. (533 kg) shipping
Other
Receptables NEMA 5-20R 125V GFCI 20A
NEMA L5-30R 125V Twist-Lock 30A
  • Low noise level — produces only 74 dBA.
  • Outstanding arc characteristics plus the ability to connect machines together for parallel operation.
  • Permanent magnet alternator design greatly reduces maintenance.
  • Full-panel GFCI protection that is OSHA and NEC compliant.
  • Dependable Tier 4 Kubota diesel engine is backed by a three-year engine manufacturer’s warranty. A standard self-priming fuel system allows quick starting even if the engine is run dry.  Automatic idle control is standard for improved fuel economy.
  • Safety shut-downs are provided for water, oil level and DC thermal overload.
  • Available accessories include welding cables, wire remotes, battery tenders, fuel heaters, trailers and wheel kits. Trailers can be outfitted with an extended runtime fuel cell, welding cable carriers and a large capacity tool box.
  • Single axle trailer (Heavy duty) (TRLRMP)
  • Single axle trailer (Heavy duty) w/28 gallon fuel (TRLRMPXF)
  • Trailer Tool box 3.5 cu.ft. (MQPSBTRLRMP)
  • Cable Carrier (Fits MP/MPXF Model Trailer) Supports 400' welding cable (MQPCCTRLRMP)
  • Wire Remote Control (DAWWRKIT500)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Multiquip
MODEL DAW500SA4 Diesel-Powered

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Multiquip DAW500SA4 Diesel-Powered
