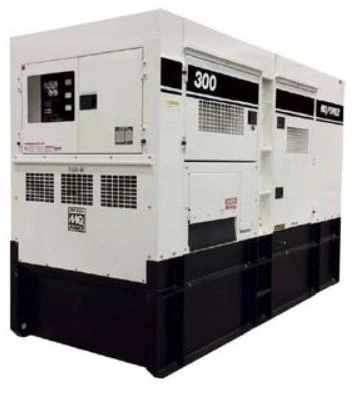

Multiquip DCA300 Series Generator for Sale MQ Power WhisperWatt Super-Silent Generators are built to withstand the toughest jobs no matter how challenging the application. Some of the features include a heavy-duty steel housing, an open delta winding design, and an automatic voltage regulator. Our generators range from 6 kW to 600 kVA and they provide unmatched reliability in portable power. MQ Power WhisperWatt Super-Silent portable generators provide reliable power to meet the most demanding requirements. They are designed and built to withstand tough environments at construction sites and provide dependable temporary power at entertainment venues and disaster recovery operations. The DCA300 Series offers a prime rating of 240 kW (300 kVA) and a standby rating of 264 kW (330 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ±0.25% from no load to full load. Equipped with a John Deere Tier 4 Final diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability. The DCA300 Series is manufactured within a powder-coated, weather resistant, 110% fluid contained steel housing that allows a substantially low operating noise level of 72 dB(A). It features an auto/start/stop digital controller that allows the generator to start from a remote location. Comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, AC load percentage, engine gauges and much more. Available As:
|
| Dimensions | |
|---|---|
| Gross Vehicle Wt Rating (GVWR) | 20,000 lbs. |
| Gross Axle Wt Rating (GAWR) | 10,000 lbs. |
| Engine | |
|---|---|
| Engine Make | John Deere |
| Engine Model | 6090HFG06 |
| Cylinders | 6 |
| Horsepower | 437 HP |
| Cooling | Water-Cooled |
| Bore x Stroke | 4.64” x 5.34” |
| Displacement | 549.2 in³ |
| Air Cleaner | 25 in. H2O |
| Fuel Consumption | 16.7 GPH at full load 12.5 GPH at ¾ load 8.9 GPH at ½ load 5.8 GPH at ¼ load |
| Fuel Tank Capacity | 430.6 Gallons |
| Battery | 12V 430Ah x 1 |
| Starting System | Electric |
| Oil Capacity | 9.3 Gallons |
| Cycles | 4 |
| Emission Standards | EPA Tier 4 Final Certified |
| Phase | 3 |
| Armature Connection | Star with Neutral |
| Excitation | Brushless with AVR |
| Power Factor | 0.8 |
| Engine Power Output | 437 bhp |
| DEF Tank Capacity | 29.8 Gallons |
| Coolant Capacity | 17.7 Gallons |
| Piston Speed | 1606 ft/min |
| Engine Design | Direct injection, turbo-charged, charged air cooled, EGR, DOC & SCR |
| Coolant Flow Rate | 102 Gallons (per minute) |
| Heat Rejection to Coolant | 10,473 Btu (per minute) |
| Cooling Air | 2797 cfm (alternator) 11,800 cfm (radiator) |
| Fuel Flow | 43 Gallons |
| Drivetrain | |
|---|---|
| Voltage Regulation | ±0.5% (No Load to Full Load) |
| Frequency Regulation | Isochronous under varying loads from no load to 100% rated load (No Load to Full Load) ±2.5% of mean value for constant loads from no load to full load (Steady State) |
| Operational | |
|---|---|
| Frequency | 50/60 Hz |
| Poles | 4 poles |
| Prime Rating | 240 kW |
| Standby Rating | 264 kW |
| Generator RPM | 1800 RPM |
| Coupler Rating | 3” Pintle Eye (25,000 lbs.) 2-5/16” Ball Coupler (20,000 lbs.) |
| Generator Design | Revolving field, Self-ventilated, Drip-proof, Single bearing |
| Ambient Temp Rating | 104° F |
| Back Pressure Max | 116 in. H2O |
| Brake Mean Effective Pressure (BMEP) | 320 PSI |
| Overspeed Limit | 2070 RPM |
| Fan Load | 26.8 hp |
| Coolant Head | Max Friction: 8.7 PSI Max Static: 78.7 ft. |
| Gas Temperature | 831° F |
| Combustion Air | 742 cfm |
| Gas Flow | 1,448 cfm (full load) |
| Battery | |
|---|---|
| Voltage | Single Phase: 120, 127, 139, 240, 254, 277V adjustable Three Phase: 208, 220, 240, 416, 440, 480V Reconnectable |
| Amps | 666.7 Amps (4 wire) at 120 Volt 333.3 Amps (4 wire) at 240 Volt 722 Amps at 208 & 240 Volts 360 Amps at 480 Volt 800 Amps at Main Line Circuit Breaker Rating 361 Amps at over current relay trip set point 480V mode only = |
| Measurements | |
|---|---|
| Length | 223” |
| Width | 99.5” |
| Height | 32.17” |
| Weight | 3,076 lbs. (wo/fuel) |
| Fits to Manufacturer | Multiquip |
| Fits to Model | DCA300SSJU4F3 |
| Other | |
|---|---|
| Insulation | Class F |
| Tire Size | 235/75R17.5 LR-J |
| Sound Level | 72 dB(A) (Full Load at 23 ft.) |
| Winding Pitch | 2/3 |
| Compression Ratio | 16.0:1 |
| Tire Load Rating | 6,005 lbs. |
| Wheel Bolt Pattern | 8 x 6.5 |
| Recommended Fuel | ASTM-D975-No. 1 & No.2-D |
| Inlet Restriction | 5.9” |
MQ Power Tandem Axle Trailer
OPTIONAL GENERATOR FEATURES
OPTIONAL CONTROL FEATURES
OPTIONAL FUEL CELL FEATURES
(For non-trailer mount applications)
OPTIONAL OUTPUT CONNECTIONS
OPTIONAL TRAILER EQUIPMENT
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Multiquip |
| MODEL | DCA300 Series |
