Multiquip DCA400 Series

New Generator for Sale

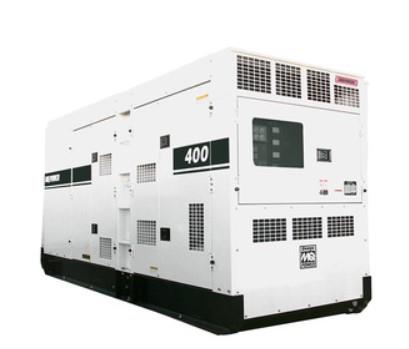

New Multiquip DCA400 Series Portable Generator for Sale

New Multiquip DCA400 Series WhisperWhatt Super-Silent Generator for Sale

MQ Power WhisperWatt Super-Silent Generators are built to withstand the toughest jobs no matter how challenging the application.  Some of the features include a heavy-duty steel housing, a patented open delta winding, and an automatic voltage regulator.  Our generators range from 6 kW to 600 kVA and they provide unmatched reliability in portable power.

MQ Power WhisperWatt Super-Silent portable generators provide reliable power to meet the most demanding requirements. They are designed and built to withstand tough environments at construction sites and provide dependable temporary power at entertainment venues and disaster recovery operations.

The DCA400 Series offers a prime rating of 320 kW (400 kVA) and a standby rating of 336 kW (420 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ±0.25% from no load to full load. Equipped with a Tier 4 Final Isuzu diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability. It features an auto start stop that allows the generator to start from a remote location. The unit features an E-coat primer with polyurethane enamel finish, weatherproof steel housing that allows a substantially low operating noise level of 69 dB(A).

Available as:

  • DCA400SSIU4F3B; Basler Controller DGC2020 (Non-Parallel Configured)
  • DCA400SSI4F3PB; Basler Controller DGC2020HD (Parallel Configured)
Engine
Engine Make Isuzu
Engine Model BQ-6WG1X
Engine Type 4-cycle, Water Cooled, Direct Injection, Turbocharged, Charge Air Cooled, EGR, DOC and SCR
Cylinders 6
Horsepower 512.3 HP
Bore x Stroke 5.78” x 6.06”
Displacement 956.91 in³
Fuel Consumption 27.63 GPH (At full load)
20.35 GPH (At ¾ load)
13.4 GPH (At ½ load)
8.35 GPH (At ¼ load)
Fuel Tank Capacity 55.5 Gallons
Battery 12V 200Ah x 2 (24 V Systems)
Starting System Electric
Oil Capacity 15.1 Gallons
Emission Standards Tier 4 Final
Excitation Brushless with AVR
Power Factor 0.8
Engine Power Output 512.3 bhp
Piston Speed 1819 ft/min
Drivetrain
Voltage Regulation ±0.5% (No load to full load)
Frequency Regulation No Load to Full Load: Isochronous under varying loads from no load to 100% rated load
Steady State: ±0.25% of mean value for constant loads from no load to full load
Operational
Frequency 60 Hz
Poles 4
Prime Rating 320 kW
Standby Rating 336 kW
Generator RPM 1800 RPM
Lifting Point Capacity 21,000 lbs.
Generator Design Revolving field, Self-ventilated, Drip-proof, Single bearing
Standby Output 336 kW
Prime Output 320 kW
Battery
Voltage Single Phase: 120, 127, 139, 240, 254, 277V Adjustable
Three Phase: 208, 220, 240, 416, 440, 480V Reconnectable
Amps 888.9 Amps (4 wire) (1Ø 120 Volt)
444.4 Amps (4 wire) (1Ø 240 Volt)
962.3 Amps (3Ø 208 Volt & 3Ø 240 Volt)
481.1 Amps (3Ø 480 Volt)
1000 Amps (Main Line Circuit Breaker Rating)
480 Amps (Over Current Relay Trip Set Point)
Measurements
Length 181.10” (skid-mount)
263.30” (trailer-mount)
Width 59.06” (skid-mount)
94.00” (trailer-mount)
Height 88.58” (skid-mount)
122.47” trailer-mount)
Weight 12,280 lbs. (Dry Weight)
16,290 lbs. (Dry Weight w/TRLR400XF3)
13,184 lbs. (Wet Weight)
17,194 lbs. (Wet Weight w/TRLR400XF3)
Other
Insulation Class F
Sound Level 69 dB(A) (Full Load at 23 ft.)
Winding Pitch 2/3
Compression Ratio 16.5:1

Standard Features for DCA400SSI4F3B

  • Heavy duty, 4-cycle, direct injection, turbocharged, charge air cooled diesel engine provides maximum reliability.
  • EPA emissions certified — Tier 4 Final emissions compliant.
  • Microprocessor engine control system maintains frequency to ±0.25%.
  • Full load acceptance of standby nameplate rating in a single step.
  • Fuel/water separator removes condensation from fuel for extended engine life. Panel mounted alarm light included.
  • Sound attenuated, weather resistant, steel housing provides operation at 69 dB(A) at 23 feet. Fully lockable enclosure allows safe unattended operation.
  • E-coat with polyurethane enamel finish coat.
  • Internal fuel tank with direct reading fuel gauges are standard.
  • Brushless alternator reduces service and maintenance requirements and meets temperature rise standards for Class F insulation systems.
    • Open delta alternator design provides virtually unlimited excitation for maximum motor starting capability.
    • Automatic voltage regulator (AVR) provides precise regulation.
  • Fully covered power panel. Three-phase terminals and single phase receptacles allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. All are NEMA standard.
  • Basler DGC2020 microprocessor-based digital generator controller.
    • High visibility backlit LCD display.
    • Operational temperature range of -40° to 70° C (-40° to 158° F).
    • Remote 2-wire start/stop control.
    • Metered power output parameters include:
      • Voltage Amperage Kilowatts
    • Kilovolt amps Power Factor Hertz
    • Modbus interface for gauge panel and expansion options.
    • Engine monitoring data over J1939. Modbus over RS485 for SCADA Interface.
  • Digital engine gauges including oil pressure, water temperature, battery volts, engine speed, engine load, fuel level and DEF level.
  • Analog generator instrumentation including AC ammeter, AC voltmeter, frequency meter, ammeter phase selector switch, voltmeter phase selector switch, and voltage regulator adjustment potentiometer.
  • Automatic safety shutdown system monitors the water temperature, engine oil pressure, low coolant, low DEF, overspeed, and overcrank. Warning lights indicate abnormal conditions.
  • Emergency stop switch — when manually activated, shuts down generator in the event of an emergency



Standard Features for DCA400SSI4F3PB

  • Heavy duty, 4-cycle, direct injection, turbocharged, charge air cooled diesel engine provides maximum reliability.
  • EPA emissions certified — Tier 4 Final emissions compliant.
  • Microprocessor engine control system maintains frequency to ±0.25%.
  • Full load acceptance of standby nameplate rating in a single step.
  • Fuel/water separator removes condensation from fuel for extended engine life. Panel mounted alarm light included.
  • Sound attenuated, weather resistant, steel housing provides operation at 69 dB(A) at 23 feet. Fully lockable enclosure allows safe unattended operation.
  • E-coat with polyurethane enamel finish coat.
  • Internal fuel tank with direct reading fuel gauges are standard.
  • Brushless alternator reduces service and maintenance requirements and meets temperature rise standards for Class F insulation systems.
    • Open delta alternator design provides virtually unlimited excitation for maximum motor starting capability.
    • Automatic voltage regulator (AVR) provides precise regulation.
  • Fully covered power panel. Three-phase terminals and single phase receptacles allow fast and convenient hookup for most applications including temporary power boxes, tools and lighting equipment. All are NEMA standard.
  • Basler DGC2020HD microprocessor-based digital generator controller with integrated genset-to-genset (isolated bus) paralleling.
    • Onboard Synchronization and kW/kVAR load sharing. Dual Ethernet ports for Inter-Genset communication.
    • High visibility backlit LCD display.
    • Operational temperature range of -40° to 70° C (-40° to 158° F).
    • Remote 2-wire start/stop control.
    • Metered power output parameters include:
      • Voltage                 Amperage           Kilowatts
      • Kilovolt amps     Power Factor     Hertz
    • Modbus interface for gauge panel and expansion options.
    • Engine monitoring data over J1939. Modbus over RS485 for SCADA Interface.
  • Digital engine gauges including oil pressure, water temperature, battery volts, engine speed, engine load, fuel level and DEF level.
  • Analog generator instrumentation including AC ammeter, AC voltmeter, frequency meter, ammeter phase selector switch, voltmeter phase selector switch, and voltage regulator adjustment potentiometer.
  • Automatic safety shutdown system monitors the water temperature, engine oil pressure, low coolant, low DEF, overspeed, and overcrank. Warning lights indicate abnormal conditions.
  • Emergency stop switch — when manually activated, shuts down generator in the event of an emergency.

DCA400SSIU4F3B Options

  • Tandem Axle Trailer with Electric brake configurations
  • PowerBalance™ (Automatic - Intgerated Load Design)
  • Water Heater
  • Battery Charger
  • Camlocks
  • Audible Alarm
  • Subbase Fuel Tanks (Custom size configurations)
  • OPTIONAL GENERATOR FEATURES
    • PowerBalance™ — designed to assist generators when operating under low temperature and/or low load conditions to insure peak performance.
    • Battery Charger — provides fully automatic and selfadjusting charging to the generator's battery system.
    • Jacket Water Heater — for easy starting in cold weather climates.
    • Trailer Mounted Package — highway legal trailer with electronic or surge brakes with double or triple axle configuration. Extra capacity fuel tanks are also available.
  • OPTIONAL CONTROL FEATURES
    • Audible Alarm — alerts operator of abnormal conditions.
  • OPTIONAL FUEL CELL FEATURES
    • Trailer Fuel Tank — a second fuel cell located in the trailer allows for extended run time.
    • Sub-base Fuel Cells (double wall) — additional fuel cell for extended runtime operation. Contains a leak sensor, low fuel level switch, and a secondary containment tank. UL142 listed.
    • 12 hours of minimum run time.
    • 24 hours of minimum run time.
  • OPTIONAL OUTPUT CONNECTIONS
    • Cam-Lok Connectors — provides quick disconnect alternative to bolt-on connectors.
    • Pin and Sleeve Connectors — provides industry standard connectors for all voltage requirements.
    • Output Cable — available in any custom length and size configuration.



DCA400SSIU4F3PB Options

  • Tandem Axle Trailer with Electric brake configurations
  • PowerBalance™ (Automatic - Intgerated Load Design)
  • Water Heater
  • Battery Charger
  • Camlocks
  • Audible Alarm
  • Subbase Fuel Tanks (Custom size configurations)
  • OPTIONAL GENERATOR FEATURES
    • PowerBalance™ — designed to assist generators when operating under low temperature and/or low load conditions to insure peak performance.
    • Battery Charger — provides fully automatic and selfadjusting charging to the generator's battery system.
    • Jacket Water Heater — for easy starting in cold weather climates.
    • Trailer Mounted Package — highway legal trailer with electronic or surge brakes with double or triple axle configuration. Extra capacity fuel tanks are also available.
  • OPTIONAL CONTROL FEATURES
    • Audible Alarm — alerts operator of abnormal conditions.
  • OPTIONAL FUEL CELL FEATURES
    • Trailer Fuel Tank — a second fuel cell located in the trailer allows for extended run time.
    • Sub-base Fuel Cells (double wall) — additional fuel cell for extended runtime operation. Contains a leak sensor, low fuel level switch, and a secondary containment tank. UL142 listed.
    • 12 hours of minimum run time.
    • 24 hours of minimum run time.
  • OPTIONAL OUTPUT CONNECTIONS
    • Cam-Lok Connectors — provides quick disconnect alternative to bolt-on connectors.
    • Pin and Sleeve Connectors — provides industry standard connectors for all voltage requirements.
    • Output Cable — available in any custom length and size configuration
