Multiquip DCA600 Series

New Generator for Sale

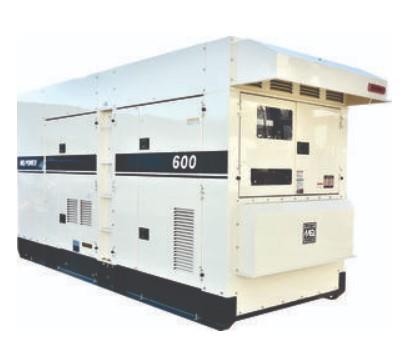

New Multiquip DCA600 Series Portable Generator for Sale

MQ Power WhisperWatt Super-Silent Generators are built to withstand the toughest jobs no matter how challenging the application.  Some of the features include a heavy-duty steel housing, a patented open delta winding, and an automatic voltage regulator.  Our generators range from 6 kW to 600 kVA and they provide unmatched reliability in portable power.

The DCA600 Series generator offers a prime rating of 480 kW (600 kVA) and a standby rating of 528 kW (660 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. The microprocessor engine control system maintains frequency to ±0.25% from no load to full load. Equipped with a Tier 4 Final Volvo diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability. It features an auto start stop that allows the generator to start from a remote location. This model also features an E-coat primer with polyurethane enamel finish coat. The weatherproof steel housing allows a substantially low operating noise level of 71 dB(A). The DCA600 is offered in both parallel and non-parallel configurations.

Available as:

  • DCA600SSV4F3B; Basler Controller DGC2020 (Non-Parallel Configured)
  • DCA600SSV4F3PB; Basler Controller DCG2020HD (Parallel Configured)
Engine
Engine Make Volvo
Engine Model TWD1672GE
Engine Type 4-cycle, water cooled, direct injection, turbo-charged, SCR
Cylinders 6
Horsepower 825 HP
Bore x Stroke 5.66” x 6.49”
Displacement 983.70 in³
Fuel Consumption 31.7 GPH (At full load)
24.4 GPH (At ¾ load)
17.9 GPH (At ½ load)
11.3 GPH (At ¼ load)
Fuel Tank Capacity 52.8 Gallons
Battery 12V 200Ah x 2 (24V System)
Starting System Electric
Oil Capacity 12.7 Gallons
Emission Standards EPA Tier 4 Final Certified
Excitation Brushless with AVR
Power Factor 0.8
Engine Power Output 825 bhp
Piston Speed 1949 ft/min
Drivetrain
Voltage Regulation ±0.5% (No load to full load)
Frequency Regulation No Load to Full Load: Isochronous under varying loads from no load to 100% rated load
Steady State: ±0.25% of mean value for constant loads from no load to full load
Operational
Frequency 60 Hz
Poles 4
Prime Rating 480 kW
Standby Rating 528 kW
Generator RPM 1800 RPM
Lifting Point Capacity 25,000 lbs.
Generator Design Revolving field, Self-ventilated, Drip-proof, Single bearing
Standby Output 528 kW
Prime Output 480 kW
Battery
Voltage Single Phase: 120, 127, 139, 240, 254, 277V Adjustable
Three Phase: 208, 220, 240, 416, 440, 480V Reconnectable
Amps 1333.3 Amps (4 wire) (1Ø 120 Volt)
666.7 Amps (4 wire) (1Ø 240 Volt)
1443.4 Amps (3Ø 208 Volt & 3Ø 240 Volt)
721.7 Amps (3Ø 480 Volt)
1600 Amps (Main Line Circuit Breaker Rating)
1443.4 Amps (240V) (Over Current Relay Trip Set Point)
720 Amps (480V) (Over Current Relay Trip Set Point)
Measurements
Length 196.85” (skid-mount)
346.36” (trailer-mount)
Width 67.91” (skid-mount)
89.80” (trailer-mount)
Height 102.36” (skid-mount)
138.58” (trailer-mount)
Weight 17,574 lbs. (Dry Weight)
27,720 lbs. (Dry Weight w/TRLR600XF3BPE)
19,117 lbs. (Wet Weight)
31,986 lbs. (Wet Weight w/TRLR600XF3BPE)
Other
Insulation Class F
Sound Level 71 dB(A) (Full Load at 23 ft.)
Winding Pitch 2/3
Compression Ratio 16.8:1
  • Heavy duty, 4-cycle, electronic direct injection, turbocharged, charged air cooler, diesel engine provides maximum reliability.
  • EPA emissions certified — Tier 4 Final emissions compliant.
  • Microprocessor engine control system maintains frequency to ±0.25%.
  • Full load acceptance of standby nameplate rating in a single step.
  • Fuel/water separator removes condensation from fuel for extended engine life. Panel mounted alarm light included.
  • Sound attenuated, weather resistant, steel housing provides operation at 71 dB(A) at 23 feet. Fully lockable enclosure allows safe unattended operation.
  • E-coat with polyurethane enamel finish coat.
  • Internal fuel tank with direct reading fuel gauges are standard.
  • Brushless alternator reduces service and maintenance requirements and meets temperature rise standards for Class F insulation systems.
    • Open delta alternator design provides virtually unlimited excitation for maximum motor starting capability.
    • Automatic voltage regulator (AVR) provides precise regulation.
  • Fully covered power panel. Three-phase terminals and single phase receptacles allow fast and convenient hookup for most applications, including temporary power boxes, tools and lighting equipment. All are NEMA standard.
  • Basler DGC2020HD microprocessor-based digital generator controller with integrated genset-to-genset (isolated bus) paralleling.
    • Onboard Synchronization and kW/kVAR load sharing. Dual Ethernet ports for Inter-Genset communication.
    • High visibility backlit LCD display.
    • Operational temperature range of -40° to 70° C (-40° to 158° F).
    • Remote 2-wire start/stop control.
    • Metered power output parameters include:
      • Voltage                 Amperage           Kilowatts
      • Kilovolt amps     Power Factor     Hertz
    • Modbus interface for gauge panel and expansion options.
    • Engine monitoring data over J1939. Modbus over RS485 for SCADA Interface.
  • Digital engine gauges including oil pressure, water temperature, battery volts, engine speed, engine load, fuel level and DEF level.
  • Analog generator instrumentation including AC ammeter, AC voltmeter, frequency meter, ammeter phase selector switch, voltmeter phase selector switch, and voltage regulator adjustment potentiometer.
  • Automatic safety shutdown system monitors the water temperature, engine oil pressure, low coolant, low DEF, overspeed, and overcrank. Warning lights indicate abnormal conditions.
  • Emergency stop switch — When manually activated, shuts down generator in the event of an emergency.
  • OPTIONAL GENERATOR FEATURES
  • PowerBalance™ — designed to assist generators when operating under low temperature and/or low load conditions to insure peak performance (available only in 480V).
  • Battery charger — provides fully automatic and selfadjusting charging to the generator's battery system.
  • Crankcase Vent Blanket with Heating Element — insures proper crankcase ventilation in freezing conditions. (Unit comes standard with a non-heated crankcase blanket)
  • Trailer mounted package — meets National Highway Traffic Safety Administration (NHTSA) regulations.
    • Bumper pull trailer is equipped wth electric brakes
  • OPTIONAL CONTROL FEATURES
    • Audible alarm alerts operator of abnormal conditions.
  • OPTIONAL FUEL CELL FEATURES
    • Sub-base fuel cells (double wall) — additional fuel cell for extended runtime operation. Contains a leak sensor, low fuel level switch, and a secondary containment tank. UL142 listed.
    • 12 hours of minimum run time.
    • 24 hours of minimum run time.
  • OPTIONAL OUTPUT CONNECTIONS
    • Cam-Lok Connectors — provides quick disconnect alternative to bolt-on connectors.
    • Pin and Sleeve Connectors — provides industry standard connectors for all voltage requirements.
    • Output Cable — available in any custom length and size configuration.



DCA600SSV4F3B Options

  • Triple Axle Trailer with Electric brake configurations
  • PowerBalance™ (Automatic - Intgerated Load Design)
  • Water Heater
  • Battery Charger
  • Camlocks
  • Audible Alarm
  • Subbase Fuel Tanks (Custom size configurations)

DCA600SSV4F3PB Options

  • Triple Axle Trailer with Electric brake configurations
  • PowerBalance™ (Automatic - Intgerated Load Design)
  • Water Heater
  • Battery Charger
  • Camlocks
  • Audible Alarm
  • Subbase Fuel Tanks (Custom size configurations)
