Multiquip DLW300ESA1 Diesel-Powered

Multiquip DLW300ESA1 Diesel-Powered

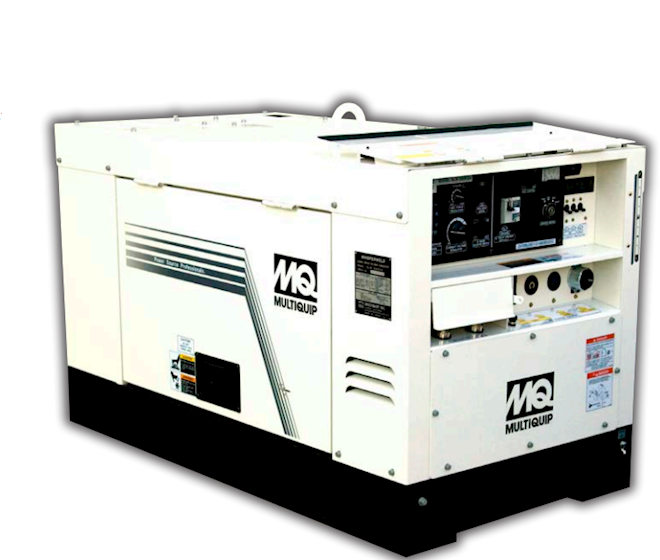

New Multiquip DLW300ESA1 Diesel-Powered Welder/Generator for Sale

These diesel-powered welder / generators feature smoother arc characteristics and more consistent, quality welds. Multiquip's simultaneous operation models range from 180 to 500 amps as welders and 3 to 14 kilowatts as generators.

The DLW300ES welder / generator delivers superior arc characterisitcs and consistent welding quality. It is the quietest welder in the industry with only 59 dBA at 23 feet (6.9 meters). The new E-mode feature improves fuel effciency by allowing the operator to weld at idle up to 160 amps, reducing operating costs and noise levels.

  • Voltage regulation is maintained at 1.5 percent
  • Emits 65 dBA at 23 feet (6.9 meters)
  • Produces up to 300 amps as a welder, 10.5 kilowats as a generator
  • Arc force control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes froms sticking during short arc length welding
  • Safety shutdowns, lifting bale, and external water, oil and fuel drains
  • E-mode allows you to weld at 160 amps at idle
  • Tier 4 Kubota diesel engine D722
  • Full panel GFCI protection - OSHA and NEC compliant
Engine
Engine Make Kubota
Engine Model D722
Fuel Type Diesel
Fuel Consumption 0.66 gph at rated load
Fuel Tank Capacity 9.5 gal. (36 l)
Operational
DC Output 120/240V
Maximum AC Output 10.5 kW
Rated AC Output 87/44A
AC Frequency 50/60 Hz
Noise Level 65 dBA (at 23 ft.)
DC Current CC: 300A
DC Voltage CC: 31V
Measurements
Length 50.75 in. (129 cm)
Width 26.75 in. (68 cm)
Height 33.1 in. (84 cm)
Weight 849 lbs. (386 kg) operating
896 lbs. (407 kg) shipping
Other
Receptables NEMA 5-20R 125V GFCI 20A
NEMA L5-30R 125V Twist-Lock 30A
NEMA L6-30R 250V Twist-Lock 30A
CS-6369 125/250VAC Twist-Lock 50A
  • Low noise level — produces only 67 dBA.
  • Outstanding arc characteristics plus the ability to connect machines together for parallel operation.
  • Ultra-clean AC power — voltage regulation ±1.5%.
  • Full-panel GFCI protection that is OSHA and NEC compliant.
  • E-Mode improves fuel efficiency by allowing the operator to weld with engine at idle speed at up to 160 amps. Reduces operating costs and noise levels.
  • Arc Force Control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes from sticking during short arc length welding.
  • Dependable Tier 4 Kubota diesel engine is backed by a three-year engine manufacturer’s warranty.  A standard self-priming fuel system allows quick starting even if the engine is run dry. Automatic idle control is standard for improved fuel economy.
  • Safety shut-downs are provided for water, oil level and DC thermal overload.
  • Available accessories include welding cables, wire remotes, battery tenders, fuel heaters, trailers and wheel kits. Trailers can be outfitted with an extended runtime fuel cell, welding cable carriers and a large capacity tool box.
  • Single axle trailer (Light duty) (TRLR10W)
  • Single axle trailer (Heavy duty) (TRLRMP)
  • Single axle trailer (Heavy duty) w/28 gallon fuel (TRLRMPXF)
  • Trailer Tool box 3.5 cu.ft. (Fits MP/MPXF Model Trailer) (MQPSBTRLRMP)
  • Cable Carrier (Fits 10W Model Trailer) Supports 200' welding cable (MQPCCTRLR10)
  • Cable Carrier (Fits MP/MPXF Model Trailer) Supports 400' welding cable (MQPCCTRLRMP)
  • Wire Remote Control (DLWWRKIT300)
  • Fuel Heater w/Filter (MQPILHEATERKIT)
  • Battery Tender (MQPBCDAKIT)
  • Block Heater (Pan Heater type) (HEATPADKIT)
