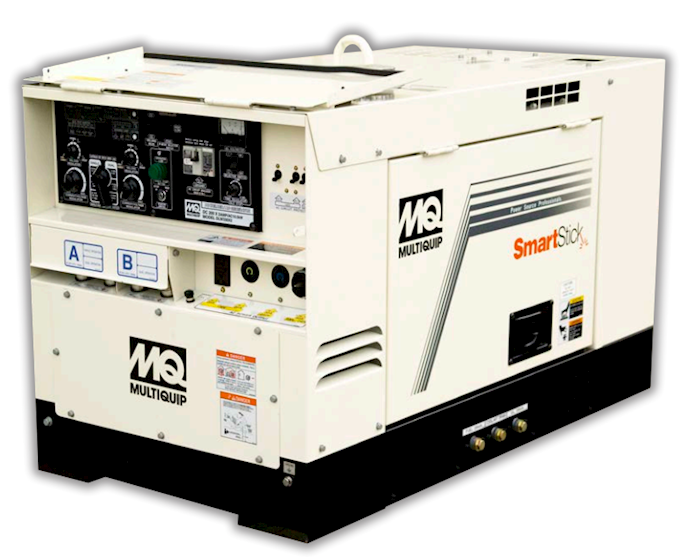

New Multiquip DLW330X2 Diesel-Powered Welder/Generator for Sale

These diesel-powered welder / generators feature smoother arc characteristics and more consistent, quality welds. Multiquip's simultaneous operation models range from 180 to 500 amps as welders and 3 to 14 kilowatts as generators.

This CC (constant current) and CV (constant voltage) welder delivers up to 340 amps of operation for one man, or simultaneous two man operation with 200 amps of output per operator. Additionally, it provides up to 10.5 kW of 120/240 volt AC power. A digital display provides both amperage/voltage and troubleshooting error code information to the operator. In e-mode the unit can weld at idle speed to optimize fuel economy. Low noise level of only 61.3 dBA. This is the welder that gives you more spark for your arc.
The SmartStick sensor automatically shuts off the engine during periods of no load and restarts it when the operator strikes the welding rod. The variable sensor - adjustable from one to 30 minutes - enables the operator to select the optimum working conditions and reduce fuel consumption.

  • The convenience of one man or two-man opeation
  • Independent controls and up to 200 amps for each operator or 340 amps for one operator
  • E-mode improves fuel efficiency by allowing the operator to weld with the engine at idle speed at up to 200 amps
  • Arc Force Control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes from sticking during short arc length welding
  • Super clean voltage regulation 1.5 percent (+/-)
  • Smart Stick sensor to automatically shut off the engine during periods of no load and restart when operator strikes the welding rod
  • Tier 4 Kubota diesel engine D902
Engine
Engine Make Kubota Tier 4
Engine Model D902
Fuel Type Diesel
Fuel Consumption 1.1 gph at rated load
Fuel Tank Capacity 9.5 gal. (36 l)
Operational
DC Output 120/240V
Maximum AC Output 10.5 kW
Rated AC Output 87.6/43.8A
AC Frequency 60 Hz
Noise Level 61.3 dBA
DC Current CC: 280, 2 x 165A
CV: 280, 2 x 165A
DC Voltage CC: 31.2 V, 2 x 26.6 V
CV: 28 V, 2 x 22.3 V
Measurements
Length 50.8 in. (129 cm)
Width 26.8 in. (68 cm)
Height 33.1 in. (84 cm)
Weight 983 lbs. (446 kg) operating
892.9 lbs. (405 kg) shipping
Other
Receptables NEMA 5-20R 125V GFCI 20A
NEMA L5-30R 125V Twist-Lock 30A
NEMA L6-30R 250V Twist-Lock 30A
CS-6369 125/250VAC Twist-Lock 50A
  • Low noise level — produces only 66 dBA.
  • Outstanding arc characteristics plus the ability to connect machines together for parallel operation.
  • One or Two-man operation. Independent controls and up to 200 amps for each operator or 340 amps for one operator.
  • SmartStick™ — this sensor automatically shuts off the engine during periods of no load and restarts it when the operator strikes the welding rod. The variable sensor — adjustable from one to 30 minutes — enables the operator to select the optimum working conditions and reduce fuel consumption.
  • Arc Force Control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes from sticking during short arc length welding.
  • Dependable Tier 4 Kubota diesel engine is backed by a three-year engine manufacturer’s warranty. A standard selfpriming fuel system allows quick starting even if the engine is run dry. Automatic idle control is standard for improved fuel economy.
  • E-Mode improves fuel efficiency by allowing the operator to weld with the engine at idle speed at up to 200 amps.  Greatly reduces operating costs and noise levels.
  • Available accessories include welding cables, wire remotes, battery tenders, fuel heaters, trailers and wheel kits. Trailers can be outfitted with an extended runtime fuel cell, welding cable carriers and a large capacity tool box.
  • Single axle trailer (Heavy duty) (TRLRMP)
  • Single axle trailer (Heavy duty) w/28 gallon fuel (TRLRMPXF)
  • Trailer Tool box 3.5 cu.ft. (MQPSBTRLRMP)
  • Cable Carrier (Fits MP/MPXF Model Trailer) Supports 400' welding cable (MQPCCTRLRMP)
  • Wire Remote Control (DLWWRKIT400)
  • Fuel Heater w/Filter (MQPILHEATERKIT)
  • Battery Tender (MQPBCDAKIT)
  • Block Heater (Pan Heater type) (HEATPADKIT)
  • Welding Cables available in varying sizes and lengths (Call for pricing)
