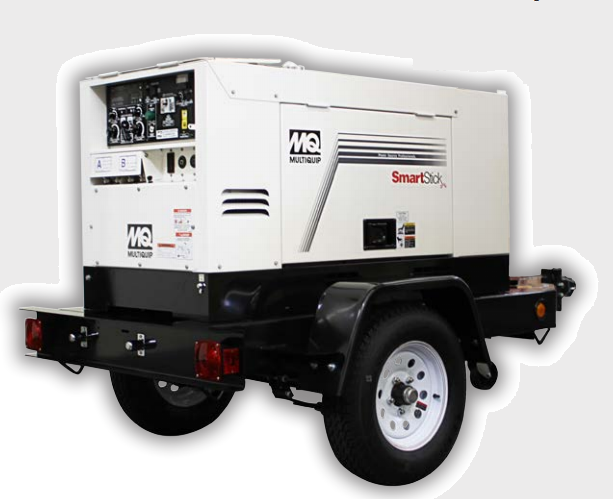

New Multiquip DLW400ESA4 Diesel-Powered Welder/Generator for Sale

These diesel-powered welder / generators feature smoother arc characteristics and more consistent, quality welds. Multiquip's simultaneous operation models range from 180 to 500 amps as welders and 3 to 14 kilowatts as generators.

This CC (constant current) and CV (constant voltage) welder delivers up to 400 amps of operation for one man, or simultaneous two man operation with 200 amps of output per person. As a generator it provides up to 14 kilowatts of 120/240 volt AC power. A digital display provides both amperage / voltage and troubleshooting error code information to the operator. In E-mode the unit can weld at idle speed to optimize fuel economy. Additionally, this unit can be simultaneously used as a welder and generator. Low noise levels of only 70 dBA.

  • Draws simultaneous AC power while welding
  • The convenience of one-man or two-man opeation
  • Delivers up to 400 amps as a welder, 14 kilowatts of AC power
  • Arc force control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes froms sticking during short arc length welding
  • Smooth arc characteristics and more consistent, quality welds
  • Super clean voltage regulation 1.5 percent (+/-)
  • Tier 4 interim Kubota diesel engine V1305
  • E-mode improves fuel efficiency b allowing oprator to weld at idle up to 240 amps
  • Noise level produces only 70 dBA
  • Full panel GFCI protection - OSHA and NEC compliant
  • Smart stick sensor to automatically shut off the engine during periods of no load and restart when operator strikes the welding rod
Engine
Engine Make Kubota
Engine Model D902
Fuel Type Diesel
Fuel Consumption 1.3 gph at rated load
Fuel Tank Capacity 11.1 gal. (42 l)
Operational
DC Output 120/240V
Maximum AC Output 14 kW
Rated AC Current 116/58A
AC Frequency 50/60 Hz
Noise Level 70 dBA
DC Current CC: 400cc, 2 x 200cc A
DC Voltage CC: 34, 2 x 27cc V
Measurements
Length 61 in. (155 cm)
Width 29 in. (74 cm)
Height 35 in. (89 cm)
Weight 1,028 lbs. (495 kg) operating
1,050 lbs. (505 kg) shipping
Other
Receptables NEMA 5-20R 125V GFCI 20A
NEMA L5-30R 125V Twist-Lock 30A
NEMA L6-30R 250V Twist-Lock 30A
CS-6369 125/250VAC Twist-Lock 50A
  • Low noise level — produces only 70 dBA.
  • Outstanding arc characteristics plus the ability to connect machines together for parallel operation.
  • One or Two-man operation. Independent controls and up to 200 amps for each operator or 400 amps for one operator.
  • Full-panel GFCI protection that is OSHA and NEC compliant.
  • Dependable Tier 4 Kubota diesel engine is backed by a three-year engine manufacturer’s warranty.  A standard self-priming fuel system allows quick starting even if the engine is run dry. Automatic idle control is standard for improved fuel economy.
  • E-Mode improves fuel efficiency by allowing the operator to weld with the engine at idle speed at up to 240 amps. This standard feature greatly reduces operating costs and noise levels.
  • Arc Force Control allows the operator to fine tune DC current during low voltage welding conditions.  This standard feature helps prevent electrodes from sticking during short arc length welding.
  • Safety shut-downs are provided for water, oil level and DC thermal overload.
  • Available accessories include welding cables, wire remotes, battery tenders, fuel heaters, trailers and wheel kits. Trailers can be outfitted with an extended runtime fuel cell, welding cable carriers and a large capacity tool box.
  • Single axle trailer (Heavy duty) (TRLRMP)
  • Single axle trailer (Heavy duty) w/28 gallon fuel (TRLRMPXF)
  • Trailer Tool box 3.5 cu.ft. (MQPSBTRLRMP)
  • Cable Carrier (Fits MP/MPXF Model Trailer) Supports 400' welding cable (MQPCCTRLRMP)
  • Wire Remote Control (DLWWRKIT400)
  • Fuel Heater w/Filter (MQPILHEATERKIT)
  • Battery Tender (MQPBCDAKIT)
  • Block Heater (Pan Heater type) (HEATPADKIT)
  • Welding Cables available in varying sizes and lengths (Call for pricing)
