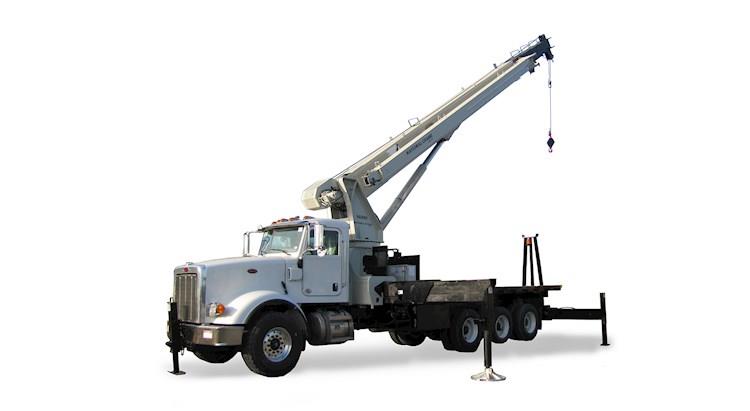

New National Crane 1400H Boom Truck for Sale The 1400H offers a 33-ton capacity rating and the longest five-section boom in its class. "H" style outriggers provide added stability for long picks while advanced control valve technology ensures precise load handling. Available in 14127H. National Crane 1400H
*Maximum vertical reach is ground-level to boom tip height at maximum extension and angle with outriggers/stabilizers full extended. Five-section boom: At 38,72 m (127 ft), the Series 1400H five-section boom is the longest in its size range. The long boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency Easy Glide boom wear pads: Easy Glide boom wear pads reduce the conditions that cause boom chatter resulting in smoother crane operation. Overload protection: All National Crane boom trucks are equipped with overload protection. A Load Moment Indicator (LMI) is standard on all Series 1400H machines. The LMI display console is weatherproof. The LCD display is visible in full or low light and displays all crane load lifting values simultaneously Outriggers: Mainframe outriggers are crossframe H-style, with 7,47 m (24 ft 6 in) span, with a midspan setting of 5,64 m (18 ft 6 in). Rear stabilizers are H-style with 5,64 m (18 ft 6 in) span. Removable ball and socket aluminum outrigger pads are included on mainframe outriggers. |
| Body | |
|---|---|
| Chassis | Stability Front: 9,250 lbs. (4,196 kg) Rear: 8,100 lbs. (3,674 kg) |
| Cab | 204 in. (518 cm) |
| Frame | After Frame (AF): 120 in. (305 cm) Section Modulus (SM) Front Axle to End of Afterframe with 110,000 psi (759 MPa): 30 ci (492 cm³) |
| Dimensions | |
|---|---|
| Wheelbase | 268 in. (681 cm) |
| Gross Axle Wt Rating (GAWR) | Front: 20,000 lbs. (9,072 kg) Rear: 40,000 lbs. (18,144 kg) |
| Max Tip Height | 165' |
| Hydraulic | |
|---|---|
| Jib | 14FJ30M, 1-section or 14FJ54M, 2-section |
| Operational | |
|---|---|
| Outriggers | Crossframe H-style with 24 ft. 6 in. (7.47 m) span, 18 ft. 6 in. (5.64 m) mid span |
| Capacity | 33 T (29.9 t) |
| Winch | Planetary |
| Boom | |
|---|---|
| Boom Type | 4-section |
| Boom Length | 127' |
| Max Tip Height-Boom | 137 ft. (41.77 m) with 30 ft. jib |
| Lift Speed | Low: 21-170 fpm (6-52 m/min.) High: 43-340 fpm (13-104 m/min.) |
| Max Jib Length | 14FJ30M: 30 ft. (9.15 m) 14FJ54M: 30-54 ft. (9.15-16.46 m) |
| Stabilizers | Rear, H-style 18 ft. 6 in. (5.64 m) span |
| Measurements | |
|---|---|
| Weight | 28,371 lbs. |
| Turning Radius | 360° |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | National Crane |
| MODEL | 1400H Series |
