National Crane NBT30H-2

National Crane NBT30H-2

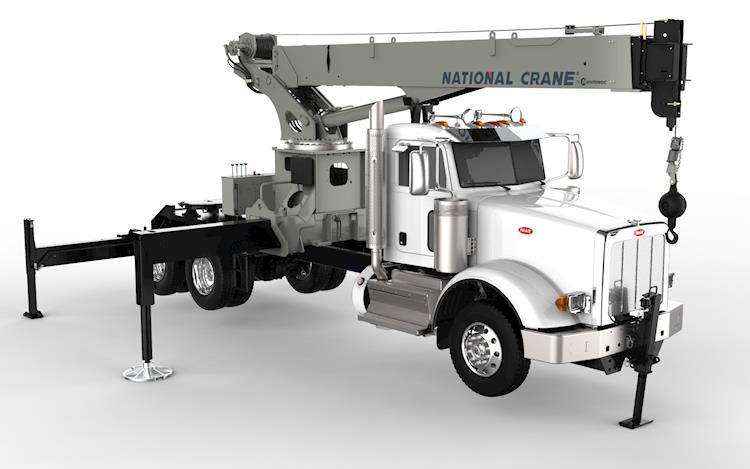

New National Crane NBT30H-2 Boom Truck for Sale

The NBT30H-2 provides a 30 ton capacity and a four-section 110 ft. boom.  Dual “H” style outriggers offer excellent stability and allow full-span mid-span and retracted-span lifting capabilities.

Boom: The 33,5 m (110 ft) four-section boom is the longest in its size range. The longer boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency. A 30,5 m (100 ft) four-section boom is also available for applications that require a shorter overall length requirement.  A 21,0 m (69 ft) four-section boom is the standard boom for the tractor mount configuration.

Graphical Rated Capacity Limiter (RCL): The Graphical Rated Capacity Limiter (RCL) is standard on all NBT30H-2 Series machines. The RCL system displays all crane load lifting values simultaneously while providing real-time information about the crane and truck operating system and includes work area definition system (WADS) and operating limits.  The RCL is also weather resistant and visible in full or low light.  Includes on-board diagnostics of all electronics allows for ease of service.

Dual side control station: Traditional mechanical control levers and layout with modern features and benefits located on both sides of the crane. Efficient load-sensing hydraulic system allows for optimum multifunctioning from the crane and integration of the optional radio remote controls providing the operator greater flexibility.  Automotive switches and wiring, and electric over hydraulic outrigger control pendant allows for optimum performance and control. Electronic engine start/stop switches with foot pedal throttle control at each side. The RCL graphical display is mounted to a rotating arm for use at either control station.

Outriggers: Two sets of out and down-style outriggers allow operation in multiple configurations with 6 m (20 ft) full-span, a 4,2 m (14 ft) mid-span setting, and a fully retracted outrigger spread. Main outriggers are equipped with removable ball and socket polymeric foot pads. Independent control of each outrigger beam and jack cylinder using a tethered pendant control for optimum setup visibility and includes a level indicator (sight bubble).
Body
Chassis Torsion resistant chassis with high-strength steel sub frame
Cab 192 in. (4.88 m)
Frame Section Modulus (SM) from Outrigger to RSOD with 110,000 psi (759 MPa): 20 ci (327 cm³)
Dimensions
Wheelbase 256 in. (6.5 m)
Gross Axle Wt Rating (GAWR) Front: 18,000 lbs. (8,165 kg)
Rear: 34,000 lbs. (15,455 kg)
Max Tip Height 119'
Operational
Outriggers 2 sets of "HO"-style with 20 ft. (6 m) full span, 14 ft. (4.2 m) mid span
Capacity 30 T (27.2 t)
Winch Planetary
Boom
Boom Type 4-section
Boom Length 110 ft. (33.52 m)
Lift Speed Low: 23-160 fpm (7-48.8 m/min.)
High: 44-310 fpm (13.4-94.4 m/min.)
Measurements
Weight 20,650 - 21,470lbs. (9,367 - 9,739 kg) dry
21,380 - 22,200 lbs. (9,698 - 10,070 kg) with oil
  • 27 2 t (30 USt) rating
  • 33 52 m (110 ft) four-section boom
  • Graphical Rated Capacity Limiter (RCL)
  • Dual-station manual controls
  • Options and Lift Solutions
    • Hydraulic hose reels
    • Factory installed tool box options
    • Bulkhead and flat-bed options
    • Camera systems
  • Subframe and Flatbed
    • 6,1 m (20 ft) and 6,7 m (22 ft)* sub frame length options.
    • *Required for 33,5 m (110 ft) boom, optional for the 30,4 m (100 ft) boom.
    • Wood, super-duty wood, steel and super-duty steel beds
  • Hook blocks
    • Single sheave, 11,3 t (12.5 USt) quick-reeve hook block for 2-3 part reeving
    • Triple sheave, 27,2 t (30 USt) quick-reeve hook block for 4-6 part reeving
    • Triple sheave, 27,2 t (30 USt) quick-reeve hook block for 4-7 part reeving including auxiliary sheave case assembly
  • Jib
    • 7,6 m - 13,4 m (25 ft - 44 ft) telescoping boom extension (side fold for stowing), includes 5,8 m (19 ft) manual pull out section
    • Max tip height with 30,4 m (100 ft) boom is 46,6 m (153 ft)
    • Max tip height with 33,5 m (110 ft) boom is 49,7 m (163 ft)
    • RCL calibration for future jib option
  • Hydraulics
    • Oil cooler option for duty-cycle operation for demanding applications
    • 1-option control circuit: 56,8 lpm (15 gpm) at 172 bar (2500 PSI)
  • Operator Aids
    • 4-function wireless radio remote control of approximately 75 m (250 ft) (NB4R)
    • Metric capacity charts
    • Spanish, Brazilian Portuguese, French documentation and decals
  • Personnel Platforms
    • (2) person steel, non-insulated, basket options
    • Gravity hung, rotating, and yoke-style options
    • Capacities up to 544,3 kg (1200 lb) on main boom and 226,7 kg (600 lb) on jib
    • Basket test weight sets available for each
    • BSA-1, BSA-R1 (provides rotation), BSAY-2
  • Single Front Outrigger
    • 63,5 m (25 in) vertical stroke
    • Required for 360° operation
  • Bulkhead
    • Steel 762 mm (30 in) solid wall bulkhead
  • Outrigger float pads
    • 24 in diameter aluminum outrigger pads

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE National Crane
MODEL NBT30H-2

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

National Crane NBT30H-2

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New National Crane NBT30H-2 Boom Truck for Sale

The NBT30H-2 provides a 30 ton capacity and a four-section 110 ft. boom.  Dual “H” style outriggers offer excellent stability and allow full-span mid-span and retracted-span lifting capabilities.

Boom: The 33,5 m (110 ft) four-section boom is the longest in its size range. The longer boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency. A 30,5 m (100 ft) four-section boom is also available for applications that require a shorter overall length requirement.  A 21,0 m (69 ft) four-section boom is the standard boom for the tractor mount configuration.

Graphical Rated Capacity Limiter (RCL): The Graphical Rated Capacity Limiter (RCL) is standard on all NBT30H-2 Series machines. The RCL system displays all crane load lifting values simultaneously while providing real-time information about the crane and truck operating system and includes work area definition system (WADS) and operating limits.  The RCL is also weather resistant and visible in full or low light.  Includes on-board diagnostics of all electronics allows for ease of service.

Dual side control station: Traditional mechanical control levers and layout with modern features and benefits located on both sides of the crane. Efficient load-sensing hydraulic system allows for optimum multifunctioning from the crane and integration of the optional radio remote controls providing the operator greater flexibility.  Automotive switches and wiring, and electric over hydraulic outrigger control pendant allows for optimum performance and control. Electronic engine start/stop switches with foot pedal throttle control at each side. The RCL graphical display is mounted to a rotating arm for use at either control station.

Outriggers: Two sets of out and down-style outriggers allow operation in multiple configurations with 6 m (20 ft) full-span, a 4,2 m (14 ft) mid-span setting, and a fully retracted outrigger spread. Main outriggers are equipped with removable ball and socket polymeric foot pads. Independent control of each outrigger beam and jack cylinder using a tethered pendant control for optimum setup visibility and includes a level indicator (sight bubble).
GENERAL INFORMATION
Manufacturer
National Crane
Model Year
Model
NBT30H-2
Condition
NEW
Body
Chassis
Torsion resistant chassis with high-strength steel sub frame
Cab
192 in. (4.88 m)
Frame
Section Modulus (SM) from Outrigger to RSOD with 110,000 psi (759 MPa): 20 ci (327 cm³)
Dimensions
Wheelbase
256 in. (6.5 m)
Gross Axle Wt Rating (GAWR)
Front: 18,000 lbs. (8,165 kg) Rear: 34,000 lbs. (15,455 kg)
Max Tip Height
119'
Operational
Outriggers
2 sets of "HO"-style with 20 ft. (6 m) full span, 14 ft. (4.2 m) mid span
Capacity
30 T (27.2 t)
Winch
Planetary
Boom
Boom Type
4-section
Boom Length
110 ft. (33.52 m)
Lift Speed
Low: 23-160 fpm (7-48.8 m/min.) High: 44-310 fpm (13.4-94.4 m/min.)
Measurements
Weight
20,650 - 21,470lbs. (9,367 - 9,739 kg) dry 21,380 - 22,200 lbs. (9,698 - 10,070 kg) with oil
