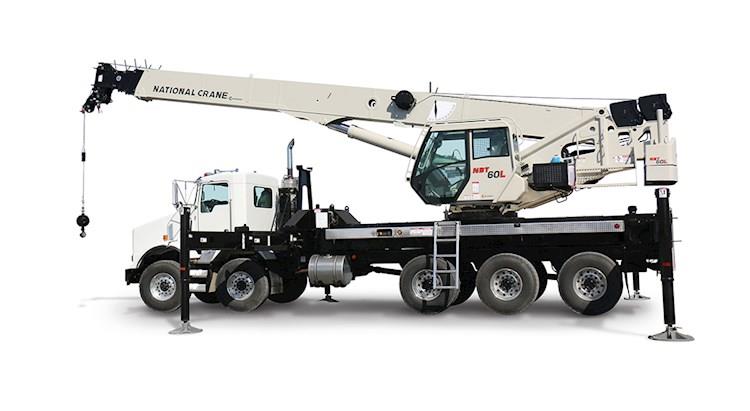

New National Crane NBT60L Boom Truck for Sale National Crane has been setting the standard for truck-mounted hydraulic cranes for more than four decades. National Crane products are durable, dependable, and loaded with the features you need to get the job done right. National Crane products range in lifting capacity from 4 USt to 40 USt. And, of course, every National is backed by our extensive dealer network and Manitowoc Crane Care. Swing seat cranes feature the comfort and convenience of an enclosed operator’s cab. National Crane offers 7 models ranging from 30 USt to 55 USt. Maximum vertical reach ranges from 163 ft. to 207 ft. The NBT60L delivers a strong 60 ton capacity and a 151 ft., 5-section main boom for class-leading reach in the 60-ton boom truck market. Models
Five-section boom: The NBT60L Series is equipped with a 46 m (151 ft) boom. An optional 11 m (36 ft) fixed length offsettable jib and a 7,9 m to 13,7 m (26 ft to 45 ft) two-section offsettable manual extension is available. Extreme versatility and strength: Paired with the right truck chassis, the NBT60L offers a 54,4 t (60 USt) crane providing the optimal combination of capacity, reach and operator comfort unmatched in its class. Operator-focused design: The NBT60L Series is designed specifically with the operator in mind, with up to 20˚ cab tilt, a graphical RCL with integrated control system, optional sideview and hoist-view cameras, optional dual axis electronic joysticks and lighter polymeric outrigger floats for easy setup. NTC Performance Package: National Crane truck crane features the easy roadability of a boom truck. The NTC Performance Package provides key features such as four-position outriggers (100%, 75%, 50% and fully retracted charts), integrated two-camera system for hoist-view and rearviews, and built-in wireless windspeed indicator. NTC Performance Package machines come with special NTC60L model designations |
| Body | |
|---|---|
| Chassis | Torsion-resistant, high-strength steel sub frame attached using high-strength steel mounting brackets that are welded to the sub-frame and bolted to the truck chassis using Huck® bolts to ensure a secure and maintenance-free connection. Rear bumper under ride protection standard. Fixed boom rest mounted to front outrigger box and fabricated from structural steel. |
| Cab | Cab structure: rigid galvanealed steel structure, well insulated, offering optimum operator visibility and comfort. Equipped with tilting cab feature from horizontal to +20°, tinted safety glass, fixed front window with windshield wiper and washer, sliding skylight window with windshield wiper, sliding left-side glass door, sliding right-side window for ventilation with safety grille, tilting rear window for ventilation, four-way adjustable, cushioned/heated seat and armrests with seat belt, diesel-fired warm-water heater with air ducts at operators feet, left side of cab and front dash (standard), hydraulic-powered air conditioner (standard), circulation fan, bubble level, adjustable sun visor, dome light, cup holder, fire extinguisher, load chart binder with tear-proof paper load charts and operator manual. |
| Slew | Continuous 360° rotation using (a) low-speed, high-torque motor with a manually adjustable swing adjustment valve integrated to the hydraulic motor control manifold mounted to a planetary reduction gear. A proportional electronic brake pedal located in the operator cab allows for the dynamic application of the multi-disk swing brake circuit. A separate spring-applied, hydraulic-released brake for disabling rotation can be activated from the left-hand seat armrest. Free-swing functionality is disabled when using the optional crane radio remote control. |
| Dimensions | |
|---|---|
| Wheelbase | 290" |
| Gross Axle Wt Rating (GAWR) | Front: 40,000 lbs. Rear: 66,000 lbs. |
| Max Tip Height | 202' |
| Hydraulic | |
|---|---|
| Hydraulic System | Efficient closed-center, load-sense hydraulics system featuring flow-sharing technology allowing for smooth multifunction operation of all crane functions. One (1) SAE-C mounted, 130cc axial piston pump for all functions and optimized system performance. Shaft input of 2200 rpm, generating 288 lpm (76 gpm) max flow at 310 bar (4500 psi) max operating pressure. 143 gal (541 L) hydraulic reservoir with SAE o-ring connections and integrated butterfly shut-off valve for easy maintenance. SAE o-ring hydraulic fittings and hoses throughout. Boom lift, boom telescope, main and aux hoist(s) and vertical outrigger jacks are all equipped with counterbalance valves for controlled movement and load holding. Hydraulic oil cooler: standard electric fan, plate- and fin-style oil cooler mounted in the rear of the superstructure to remove heat from the hydraulic oil under heavy operating conditions. |
| Operational | |
|---|---|
| Outriggers | Out- and down-style outriggers at both the front and rear with individual control of each horizontal beam extension and vertical jack cylinder. Each outrigger jack is equipped with a 500 m (19.7 in) polymeric outrigger float standard. Horizontal beams are non-proportional and can be pinned in (4) different configurations for operation. Front outriggers are angled toward the truck cab, minimizing the need for an SFO. Ground-level control stations located at the left and right side for all vertical jacks and only the horizontal beams for each station. Operator cab features an electronic keypad mounted on the front console to control all outrigger functions. 100% span: Front = 7,09 m (23 ft 3 in) Rear = 7,39 m (24 ft 3 in) 75% span: Front = 5,9 m (19 ft 4 in) Rear = 6,12 m (20 ft 1 in) Note: 75% span available ONLY with the NTC Performance Package. 50% span: Front = 4,72 m (15 ft 6 in) Rear = 4,90 m (16 ft 1 in) 0% span: Front and Rear = 2,39 m (7 ft 10 in) Outrigger monitoring system for horizontal beam extension is standard. Inverted cylinder rods for vertical outrigger jack cylinders for best protection of chromed rod. Optional single front outrigger (SFO) is available for heavy front axle mounting configurations. |
| Capacity | 60 US tons |
| Boom | Includes proportional extension via multi-stage hydraulic cylinder and cable operation, four-plate, high-strength steel construction, three-sheave, quick-reeve boom nose and Easy-Glide wear pads |
| Boom | |
|---|---|
| Boom Extensions | 36' |
| Boom Length | 151' |
| Boom Elevation | One (1) double-acting, hydraulic cylinder with integral holding valve and integral pressure transducers provides elevation from -8° to +80°. |
| Battery | |
|---|---|
| Electrical System | Automotive-grade, fully wire-harnessed 12VDC electrical system using state-of-the-art sealed connectors and control modules. Dual-tone backup and outrigger motion alarm located at rear of machine. LED marker and triple ID lights |
| Measurements | |
|---|---|
| Weight | 52,807 lbs. w/fluids |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | National Crane |
| MODEL | NBT60L |
