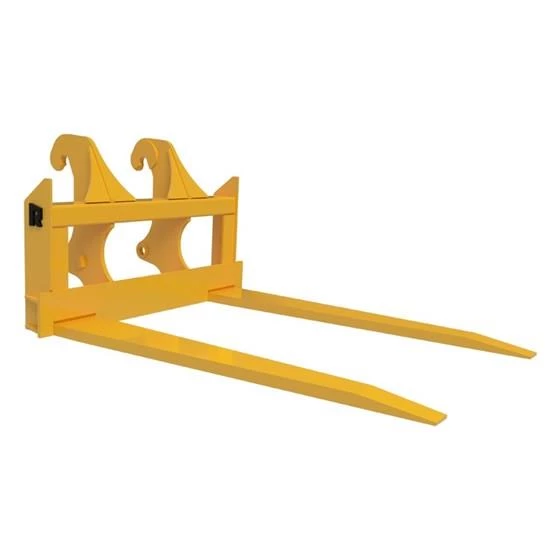

Rockland Car Body Loader Fork

New Attachment for Sale

New Rockland Car Body Loader Fork for Sale

CBF Car Body Forks were designed specifically for auto salvage yards. Tapered tines with beveled tips insure easy separation from the load. The fixed, high strength, heat-treated alloy steel tines are matched to the capacity of your loader for maximum productivity

Rockland CBF Car Body Forks are tough and they won’t take a bite out of your pocketbook or the maintenance budget. The entire unit is built of tough, weight-saving, alloy steels that deliver years of dependable service. The solid frame also does double duty as a dozer to keep yards level, fill low spots, or keep scrap out of the way. If you handle crushed cars with a loader, specify Rockland CBF Car Body Forks.

  • Auto salvage yards increase productivity when using car body forks. Handling cars in volume and reducing damage of critical components is key to increasing scrap yard profits.
  • High-strength, fixed tines can withstand all of the machine’s power.
  • Tines equipped with bottom or top taper, full or partial, as requested. This makes getting under cars and unloading trucks fast and easy.
  • Tine lengths from 6 to 14 feet make it easy for operators to reach what they are after.
  • Custom backframe with clamps for securing tall loads available upon request.



Category

  • 10
  • 20
  • 30
  • 40
  • 50
  • 60
  • 70
  • 80
Specs
Category 10, 20, 30, 40, 50, 60, 70, 80
Dimensions
Height 10: 28”
20: 30”
30: 34”
40: 34”
50: 38”
60: 38”
70: 45.75”
80: 46”
Weight (Tine Length)
10: 1,665 lbs. (72”)
1,795 lbs. (84”)
1,925 lbs. (96”)
2,075 lbs. (108”)
2,225 lbs. (120”)
2,375 lbs. (132”)
2,845 lbs. (144”)
20: 1,690 lbs. (72”)
1,820 lbs. (84”)
1,950 lbs. (96”)
2,100 lbs. (108”)
2,250 lbs. (120”)
2,400 lbs. (132”)
2,870 lbs. (144”)
30: 1,970 lbs. (72”)
2,125 lbs. (84”)
2,280 lbs. (96”)
2,450 lbs. (108”)
2,620 lbs. (120”)
2,790 lbs. (132”)
3,340 lbs. (144”)
3,520 lbs. (156”)
40: 2,200 lbs. (72”)
2,400 lbs. (84”)
2,580 lbs. (96”)
2,760 lbs. (108”)
2,490 lbs. (120”)
3,120 lbs. (132”)
3,300 lbs. (144”)
3,480 lbs. (156”)
3,660 lbs. (168”)
50: 2,620 lbs. (72”)
2,800 lbs. (84”)
2,980 lbs. (96”)
3,160 lbs. (108”)
3,340 lbs. (120”)
3,520 lbs. (132”)
3,700 lbs. (144”)
4,660 lbs. (156”)
4,820 lbs. (168”)
60: 3,575 lbs. (72”)
3,740 lbs. (84”)
3,965 lbs. (96”)
4,145 lbs. (108”)
4,325 lbs. (120”)
4,500 lbs. (132”)
4,765 lbs. (144”)
5,030 lbs. (156”)
5,295 lbs. (168”)
70: 4,145 lbs. (72”)
4,340 lbs. (84”)
4,570 lbs. (96”)
4,790 lbs. (108”)
5,010 lbs. (120”)
5,230 lbs. (132”)
5,480 lbs. (144”)
5,730 lbs. (156”)
5,980 lbs. (168”)
80: 6,145 lbs. (72”)
7,000 lbs. (84”)
7,610 lbs. (96”)
7,830 lbs. (108”)
8,050 lbs. (120”)
8,270 lbs. (132”)
10,545 lbs. (144”)
12,820 lbs. (156”)
15,095 lbs. (168”)
Overall Width 90”
Tine Length 72”, 84”, 96”, 108”, 120”, 132”, 144”, 156”, 168”
Width over Tines 10: 65” (Tine Length 72”, 84”, 96”, 108”)
44” (Tine Length 120”, 132”, 144”)
20: 65” (Tine Length 72”, 84”, 96”, 108”)
44” (Tine Length 120”, 132”, 144”)
30: 65” (Tine Length 72”, 84”, 96”, 108”)
44” (Tine Length 120”, 132”, 144”, 156”)
40: 65” (Tine Length 72”, 84”, 96”, 108”)
44” (Tine Length 120”, 132”, 144”, 156”, 168”)
50: 65” (Tine Length 72”, 84”, 96”, 108”)
44” (Tine Length 120”, 132”, 144”, 156”, 168”)
60: 65” (Tine Length 72”, 84”, 96”, 108”)
44” (Tine Length 120”, 132”, 144”, 156”, 168”)
70: 65” (Tine Length 72”, 84”, 96”, 108”)
44” (Tine Length 120”, 132”, 144”, 156”, 168”)
80: 65” (Tine Length 72”, 84”, 96”, 108”)
44” (Tine Length 120”, 132”, 144”, 156”, 168”)
Operational
Application Recycling/Scrap, Waste Handling
  • Optional backframe height – for loading and unloading large stacks of cars or increased visibility
  • Rubber bumpers – for effectively handling parts cars while avoiding dents and damage
  • Tapered tines in either direction – for preventing truck bed damage or loading cars from ground level
  • Tine lengths – to suit your application’s needs (see reverse for more information)
  • Optional frame heights and widths available to suit applications that vary as widely as handling one car, or many, in one pass.
  • Optional rubber bumpers protect valuable parts from damage.
