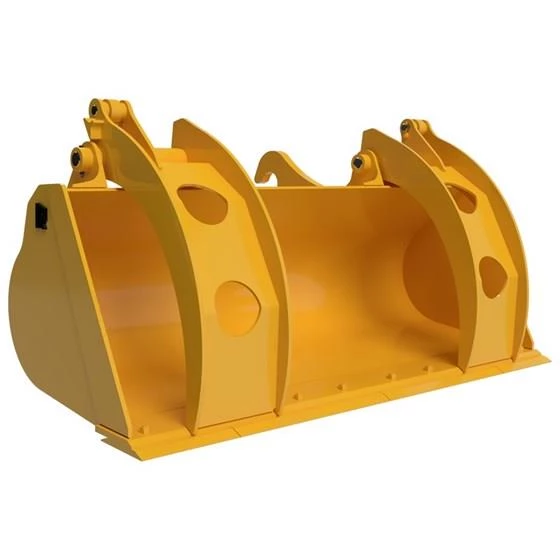

New Rockland Clamp Loader Bucket for Sale.

Rockland GPC and LBC Clamp Buckets handle large bulky loads that are often impossible to load using a conventional bucket. Clamp Buckets have wide rugged dual clamps to get a firm grip on brush, scrap, demolition debris and other hard to handle materials. They really speed up the loading process and out-produce conventional buckets many times over. The small extra investment for hydraulic clamps quickly pays off on the job.

Both the GPC and the LBC are the productive combination of a standard Rockland bucket with a heavy-duty spillguard designed to support two wide hydraulic clamps. The special heavy-duty spillguard will stand up under years of dual cylinder hydraulic clamping forces. Each clamp is independently powered by its own hydraulic cylinder to get a firm grip on any load.

Heavy-duty high pressure hydraulic cylinders feature induction hardened chrome plated rods, oversize pins, heat-treated bushings, and high-pressure hydraulic hoses. Each Clamp Bucket comes complete with hoses that connect to standard OEM hydraulics.

Clamp width is proportional to bucket width. Special clamps are available for unique applications. The clamps and bucket are built from weight saving, high-strength alloy steels. Bolt-on cutting edges are standard, rubber bolt-on edges and teeth of your choice are optional. Custom clamps and bucket profiles are available.

Bucket Selection Guide

  • LBC=For material less than 1500 lbs. per cubic yard
  • GPC=For material 1500-2700 lbs. per cubic yard

Category

  • GPC Clamp Buckets
    • 5
    • 10
    • 20
    • 30
    • 40
    • 50
    • 60
    • 70
    • 80
    • 90
  • LBC Clamp Buckets
    • 5
    • 10
    • 20
    • 30
    • 40
    • 50
    • 60
    • 70
    • 80
    • 90
Specs
Category GPC Clamp Buckets: 5, 10, 20, 30, 40, 50, 60, 70, 80, 90
LBC Clamp Buckets: 5, 10, 20, 30, 40, 50, 60, 70, 80, 90
Dimensions
Width GPC:
5: 90” & 96”
10 & 20: 96” & 100”
30: 106”
40: 108”
50: 120” & 126”
60: 126” & 136”
70: 136”
80: 148”
90: 156”
LBC:
5: 90” & 96”
10: 96”
20: 96” & 100”
30: 106” & 108”
40: 112” & 120”
50: 126” & 136”
60: 144”
70, 80 & 90: 168”
Weight GPC:
5: 1,880 lbs. & 2,160 lbs.
10: 2,210 lbs. & 2,400 lbs.
20: 2,775 lbs. & 3,175 lbs.
30: 3,775 lbs. & 4,125 lbs.
40: 4,590 lbs. & 4,760 lbs.
50: 6,190 lbs. & 6,500 lbs.
60: 6,750 lbs. & 7,100 lbs.
70: 8,000 lbs. & 8,200 lbs.
80: 9,075 lbs. & 9,540 lbs.
90: 10,265 lbs. & 11,550 lbs.
LBC:
5: 2,300 lbs. & 2,425 lbs.
10: 2,500 lbs. & ,2600 lbs.
20: 3,900 lbs. & 4,200 lbs.
30: 4,350 lbs. & 4,500 lbs.
40: 4,700 lbs. & 5,000 lbs.
50: 6,470 lbs. & 7,020 lbs.
60: 7,600 lbs. & 8,500 lbs.
70: 8,700 lbs. & 9,030 lbs.
80: 10,000 lbs. & 10,235 lbs.
90: 11,775 lbs. & 12,275 lbs.
Clamp Width GPC:
5: 16”
10 & 20: 16” & 18”
30 & 40: 18”
50: 20”
60: 20” & 24”
70 & 80: 24”
90: 28”
LBC:
5 & 10: 16”
20 & 30: 18”
40: 20”
50: 20” & 24”
60: 24”
70 & 80: 28”
90: 30”
Operational
Capacity GPC:
5: 1 yd³ & 1.25 yd³
10: 1.25 yd³ & 1.5 yd³
20: 2 yd³ & 2.25 yd³
30: 2.5 yd³ & 3 yd³
40: 3.5 yd³ & 3.75 yd³
50: 4.25 yd³ & 4.5 yd³
60: 5 yd³ & 5.5 yd³
70: 6 yd³ & 6.5 yd³
80: 7 yd³ & 7.5 yd³
90: 8 yd³ & 9 yd³
LBC:
5: 2 yd³ & 2.25 yd³
10: 2.25 yd³ & 2.5 yd³
20: 3.5 yd³ & 3.75 yd³
30: 4 yd³ & 4.25 yd³
40: 4.5 yd³ & 5 yd³
50: 6 yd³ & 7 yd³
60: 8 yd³ & 9 yd³
70: 10 yd³ & 11 yd³
80: 12 yd³ & 13 yd³
90: 14 yd³ & 15 yd³
Application General Construction, Municipal, Recycling/Scrap, Waste Handling

Handle difficult loads with ease.

  • Choose from Light Material or General Purpose style.
  • Rugged, dual clamps to handle large bulky materials.
  • Rockland built, cushioned cylinders deliver years of dependability.
  • Built-in mechanical stops prevent cylinder damage.
  • Clamp widths proportional to bucket widths – linked clamps also available.
  • Clamps open behind cutting edge to protect cylinders.
  • Equipped with reversible bolt-on cutting edges.
