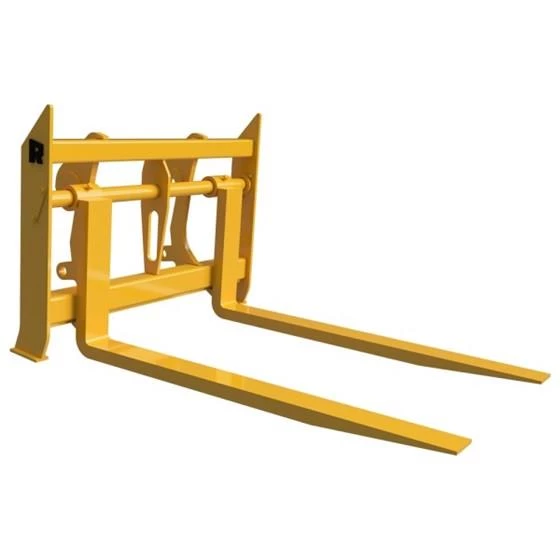

Rockland Heavy-Duty Construction Loader Fork

New Rockland Loader Fork for Sale

New Rockland Heavy-Duty Construction Loader Fork for Sale

  • Perfect for demanding applications such as oil field work and heavy lifting
  • Breakout force rated tines
  • Heavy-duty tine shaft and fully welded tine bosses deliver years of dependable performance
  • Tines always stay close to the frame, even when dumping, preventing operator error and improving safety
  • Simple and fast tine adjustment means more loading and less struggling with hard to move tines
  • Many tine lengths and frame widths available to suit any application
  • Built to withstand anything your machine can do. All CFHD forks are equipped with breakout force rated tines. Perfect for demanding applications ranging from oil field work to heavy lifting applications.
  • Heavy-duty tine shafts and fully welded tine bosses deliver years of dependable performance.
  • Tines always stay close to the frame, even when dumping. This prevents operator error and improves safety.
  • Simple and fast tine adjustment means more loading and less struggling with hard to move tines.
  • Multiple tine lengths and frame widths available to suit any application.
Dimensions
Tine Length 48”, 60”, 72”, 84”, 96” for Straight Tip Load of 0-16,700 lbs.
60”, 72”, 84”, 96” for Straight Tip Load of 16,700-79,000 lbs.
Tine Thickness 2.5” at Straight Tip Load of 0-16,700 lbs.
3” at Straight Tip Load of 16,700-27,000 lbs.
3.5” at Straight Tip Load of 27,000-42,500 lbs.
4” at Straight Tip Load of 42,500-64,000 lbs.
4.5” at Straight Tip Load of 64,000-79,000 lbs.
Tine Width 6” at Straight Tip Load of 0-16,700 lbs.
7” at Straight Tip Load of 16,700-27,000 lbs.
8” at Straight Tip Load of 27,000-64,000 lbs.
12” at Straight Tip Load of 64,000-79,000 lbs.
Backframe Height 45.5” at Straight Tip Load of 0-16,700 lbs.
48.5” at Straight Tip Load of 16,700-27,000 lbs.
55” at Straight Tip Load of 27,000-42,500 lbs.
56” at Straight Tip Load of 42,500-64,000 lbs.
62.5” at Straight Tip Load of 64,000-79,000 lbs.
Backframe Width 60”, 72”, 84”, 96”, 102”, 106” for straight tip load of 0-27,000 lbs.
72”, 84”, 96”, 102”, 106” for straight tip load of 27,000-79,000 lbs.
Operational
Application General Construction, Pipeline/Oil & Gas, Recycling/Scrap, Road/Bridge
Straight Tip Load 0-16,700 lbs.
16,700-27,000 lbs.
27,000-42,500 lbs.
42,500-64,000 lbs.
64,000-79,000 lbs.
Tine Load Rating 21,150 lbs. at 24” Center for Straight Tip Load of 0-16,700 lbs.
33,000 lbs. at 24” Center for Straight Tip Load of 16,700-27,000 lbs.
53,000 lbs. at 24” Center for Straight Tip Load of 27,000-42,500 lbs.
67,000 lbs. at 24” Center for Straight Tip Load of 42,500-64,000 lbs.
122,300 lbs. at 24” Center for Straight Tip Load of 64,000-79,000 lbs.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Rockland
MODEL Heavy-Duty Construction Loader Fork

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Rockland Heavy-Duty Construction Loader Fork

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Rockland Heavy-Duty Construction Loader Fork for Sale

  • Perfect for demanding applications such as oil field work and heavy lifting
  • Breakout force rated tines
  • Heavy-duty tine shaft and fully welded tine bosses deliver years of dependable performance
  • Tines always stay close to the frame, even when dumping, preventing operator error and improving safety
  • Simple and fast tine adjustment means more loading and less struggling with hard to move tines
  • Many tine lengths and frame widths available to suit any application
  • Built to withstand anything your machine can do. All CFHD forks are equipped with breakout force rated tines. Perfect for demanding applications ranging from oil field work to heavy lifting applications.
  • Heavy-duty tine shafts and fully welded tine bosses deliver years of dependable performance.
  • Tines always stay close to the frame, even when dumping. This prevents operator error and improves safety.
  • Simple and fast tine adjustment means more loading and less struggling with hard to move tines.
  • Multiple tine lengths and frame widths available to suit any application.
GENERAL INFORMATION
Manufacturer
Rockland
Model Year
Model
Heavy-Duty Construction Loader Fork
Condition
NEW
Dimensions
Tine Length
48”, 60”, 72”, 84”, 96” for Straight Tip Load of 0-16,700 lbs. 60”, 72”, 84”, 96” for Straight Tip Load of 16,700-79,000 lbs.
Tine Thickness
2.5” at Straight Tip Load of 0-16,700 lbs. 3” at Straight Tip Load of 16,700-27,000 lbs. 3.5” at Straight Tip Load of 27,000-42,500 lbs. 4” at Straight Tip Load of 42,500-64,000 lbs. 4.5” at Straight Tip Load of 64,000-79,000 lbs.
Tine Width
6” at Straight Tip Load of 0-16,700 lbs. 7” at Straight Tip Load of 16,700-27,000 lbs. 8” at Straight Tip Load of 27,000-64,000 lbs. 12” at Straight Tip Load of 64,000-79,000 lbs.
Backframe Height
45.5” at Straight Tip Load of 0-16,700 lbs. 48.5” at Straight Tip Load of 16,700-27,000 lbs. 55” at Straight Tip Load of 27,000-42,500 lbs. 56” at Straight Tip Load of 42,500-64,000 lbs. 62.5” at Straight Tip Load of 64,000-79,000 lbs.
Backframe Width
60”, 72”, 84”, 96”, 102”, 106” for straight tip load of 0-27,000 lbs. 72”, 84”, 96”, 102”, 106” for straight tip load of 27,000-79,000 lbs.
Operational
Application
General Construction, Pipeline/Oil & Gas, Recycling/Scrap, Road/Bridge
Straight Tip Load
0-16,700 lbs. 16,700-27,000 lbs. 27,000-42,500 lbs. 42,500-64,000 lbs. 64,000-79,000 lbs.
Tine Load Rating
21,150 lbs. at 24” Center for Straight Tip Load of 0-16,700 lbs. 33,000 lbs. at 24” Center for Straight Tip Load of 16,700-27,000 lbs. 53,000 lbs. at 24” Center for Straight Tip Load of 27,000-42,500 lbs. 67,000 lbs. at 24” Center for Straight Tip Load of 42,500-64,000 lbs. 122,300 lbs. at 24” Center for Straight Tip Load of 64,000-79,000 lbs.
