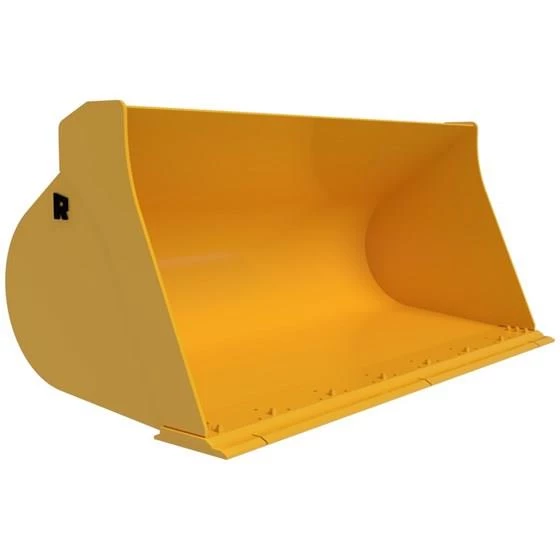

Rockland Sand & Gravel Loader Bucket

New Rockland Loader Bucket for Sale

New Rockland Sand & Gravel Loader Bucket for Sale

  • Slope bottom design allows for easy penetration of any stockpile
  • Choose the standard design equipped with straight sidecutters or performance style with rounded sidecutters
  • Equipped with bolt-on reversible cutting edges and full-length, replaceable wear strips
  • Hardfacing is available on either design for extreme Applications
Dimensions
Width 20: 128” & 130”
30: 136”
40: 140”
50: 150”
60: 165” & 170”
70: 174”, 178” & 186”
Weight 20: 2,970 lbs., 3,070 lbs., 3,230 lbs. & 3,380 lbs.
30: 3,800 lbs., 3,850 lbs. & 4,050 lbs.
40: 4,710 lbs., 5,110 lbs., 5,210 lbs., 5,360 lbs. & 5,510 lbs.
50: 5,675 lbs., 5,775 lbs., 5,925 lbs., 5,975 lbs. & 6,150 lbs.
60: 6,860 lbs., 7,010 lbs., 7,260 lbs., 8,575 lbs., 8,825 lbs. & 9,075 lbs.
70: 11,200 lbs., 12,500 lbs., 12,875 lbs. & 13,250 lbs.
Operational
Application Aggregate Handling, Mining/Quarry
Capacity Ranges Up to 1.25 cu. yd. (for straight tip load of up to 8,600 lbs.)
1.25-1.75 cu. yd. (for straight tip load of 8,601-16,700 lbs.)
1.75-2.5 cu. yd. (for straight tip load of 12,801-23,800 lbs.)
2.5-3.5 cu. yd. (for straight tip load of 16,701-27,000 lbs.)
3.5-4.5 cu. yd. (for straight tip load of 23,801-34,000 lbs.)
4.5-5.5 cu. yd. (for straight tip load of 27,001-34,000 lbs.)
5.5-6.5 cu. yd. (for straight tip load of 34,001-54,000 lbs.)
6.5-7.5 cu. yd. (for straight tip load of 42,501-54,000 lbs.)
7.5-8.5 cu. yd. (for straight tip load of 54,001-64,000 lbs.)
8.5-9.5 cu. yd. (for straight tip load of 64,001-79,000 lbs.)
Straight Tip Load Up to 8,600 lbs. (for capacity range of up to 1.25 cu. yd.)
8,601-12,800 lbs. (for capacity range of 1.25-1.75 cu. yd.)
12,801-16,700 lbs. (for capacity range of 1.75-2.5 cu. yd.)
16,701-23,800 lbs. (for capacity range of 1.75-3.5 cu. yd.)
23,801-27,000 lbs. (for capacity range of 2.5-4.5 cu. yd.)
27,001-34,000 lbs. (for capacity range of 3.5-5.5 cu. yd.)
34,001-42,500 lbs. (for capacity range of 5.5-6.5 cu. yd.)
42,501-54,000 lbs. (for capacity range of 5.5-7.5 cu. yd.)
54,001-64,000 lbs. (for capacity range of 7.5-8.5 cu. yd.)
64,001-79,000 lbs. (for capacity range of 8.5-9.5 cu. yd.)
  • Put sand and gravel in its place!
  • Slope bottom design allows for easy penetration of any stockpile.
  • Choose the standard design equipped with straight sidecutters or performance style with rounded sidecutters.
  • Equipped with bolt-on reversible cutting edges and full-length, replaceable wear strips.
  • Hardfacing is available on either design for extreme applications.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.


*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Rockland
MODEL Sand & Gravel Loader Bucket

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Rockland Sand & Gravel Loader Bucket

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Rockland Sand & Gravel Loader Bucket for Sale

  • Slope bottom design allows for easy penetration of any stockpile
  • Choose the standard design equipped with straight sidecutters or performance style with rounded sidecutters
  • Equipped with bolt-on reversible cutting edges and full-length, replaceable wear strips
  • Hardfacing is available on either design for extreme Applications
GENERAL INFORMATION
Manufacturer
Rockland
Model Year
Model
Sand & Gravel Loader Bucket
Condition
NEW
Dimensions
Width
20: 128” & 130” 30: 136” 40: 140” 50: 150” 60: 165” & 170” 70: 174”, 178” & 186”
Weight
20: 2,970 lbs., 3,070 lbs., 3,230 lbs. & 3,380 lbs. 30: 3,800 lbs., 3,850 lbs. & 4,050 lbs. 40: 4,710 lbs., 5,110 lbs., 5,210 lbs., 5,360 lbs. & 5,510 lbs. 50: 5,675 lbs., 5,775 lbs., 5,925 lbs., 5,975 lbs. & 6,150 lbs. 60: 6,860 lbs., 7,010 lbs., 7,260 lbs., 8,575 lbs., 8,825 lbs. & 9,075 lbs. 70: 11,200 lbs., 12,500 lbs., 12,875 lbs. & 13,250 lbs.
Operational
Application
Aggregate Handling, Mining/Quarry
Capacity Ranges
Up to 1.25 cu. yd. (for straight tip load of up to 8,600 lbs.) 1.25-1.75 cu. yd. (for straight tip load of 8,601-16,700 lbs.) 1.75-2.5 cu. yd. (for straight tip load of 12,801-23,800 lbs.) 2.5-3.5 cu. yd. (for straight tip load of 16,701-27,000 lbs.) 3.5-4.5 cu. yd. (for straight tip load of 23,801-34,000 lbs.) 4.5-5.5 cu. yd. (for straight tip load of 27,001-34,000 lbs.) 5.5-6.5 cu. yd. (for straight tip load of 34,001-54,000 lbs.) 6.5-7.5 cu. yd. (for straight tip load of 42,501-54,000 lbs.) 7.5-8.5 cu. yd. (for straight tip load of 54,001-64,000 lbs.) 8.5-9.5 cu. yd. (for straight tip load of 64,001-79,000 lbs.)
Straight Tip Load
Up to 8,600 lbs. (for capacity range of up to 1.25 cu. yd.) 8,601-12,800 lbs. (for capacity range of 1.25-1.75 cu. yd.) 12,801-16,700 lbs. (for capacity range of 1.75-2.5 cu. yd.) 16,701-23,800 lbs. (for capacity range of 1.75-3.5 cu. yd.) 23,801-27,000 lbs. (for capacity range of 2.5-4.5 cu. yd.) 27,001-34,000 lbs. (for capacity range of 3.5-5.5 cu. yd.) 34,001-42,500 lbs. (for capacity range of 5.5-6.5 cu. yd.) 42,501-54,000 lbs. (for capacity range of 5.5-7.5 cu. yd.) 54,001-64,000 lbs. (for capacity range of 7.5-8.5 cu. yd.) 64,001-79,000 lbs. (for capacity range of 8.5-9.5 cu. yd.)
