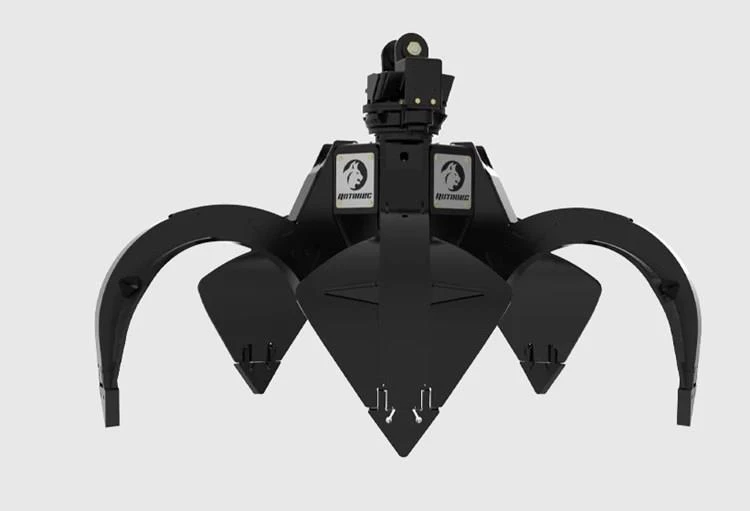

Rotobec Medium Duty Orange Peel Grapples

New Rotobec Grapples for Sale

New Rotobec Medium Duty Orange Peel Grapples for Sale

Designed and manufactured with the same passion and attention to detail to bring you the best grapple in the industry.

ELEVATE YOUR GAME WITH ROTOBEC MEDIUM DUTY ORANGE PEEL GRAPPLES.

This economical solution to scrap handling features the robust design Rotobec is known for, while incorporating speed and agility. Available in both 4 and 5-tine configurations, Rotobec Medium Duty Orange Peel Grapples help to bridge the size gap but maintain only the highest quality and durability. Don’t just handle scrap, dominate it.



Models

  • OP5HM45-RT322
  • OP5HM65-RT322
Specs
Industries Scrap Grapple
Dimensions
Weight OP5HM45-RT322: 2,425 lbs. (including rotator)
OP5HM65-RT322: 2,585 lbs. (including rotator)
Diameter 2½”
Volume OP5HM45-RT322: 0.59 yd³
OP5HM65-RT322: 0.85 yd³
Fits to Equipment MATERIAL HANDLER
Engine
Cylinders Standard
Pressure Range 3600-5000 PSI
Flow Range OP5HM45-RT322: 12-18 GPM
OP5HM65-RT322: 12-18 GPM
Rotator OP5HM45-RT322: Rotator recommended flow will produce a maximum speed of 30 RPM.
OP5HM65-RT322: Rotator recommended flow will produce a maximum speed of 30 RPM.
Torque at Relief Pressure OP5HM45-RT322: 16,150 lbs.-in/1450 PSI
OP5HM65-RT322: 16,150 lbs.-in/1450 PSI
Recommended Pressure 4300 PSI
Lock Valve No
Operational
Capacity OP5HM45-RT322: 0.59 yd³
OP5HM65-RT322: 0.85 yd³
Flow OP5HM45-RT322: 9 GPM
OP5HM65-RT322: 9 GPM
Maximum Pressure 5000 PSI
Max Opening OP5HM45-RT322: 76”
OP5HM65-RT322: 88”
Rotator Lifting Capacity OP5HM45-RT322: 32,000 lbs.
OP5HM65-RT322: 32,000 lbs.
Grapple Cylinder Max Flow Grapple cylinder maximum flow will theoretically produce a complete grapple open/close cycle in 4 seconds.
  • The King of Rotators
    • WE’RE CALLED ROTO-BEC FOR A REASON: Rotobec has been pushing the boundaries of innovation in the world of rotator design. We are well-known for our innovation and developments with the most advanced continuous 360° rotators. Our rotators are without a doubt the longest lasting ever made. They offer cost effective maintenance due to easily accessible greasing points and motor, allowing them to go further and protect your investment. All of our rotations are fully sealed, allowing them to be fully submerged in up to 15 feet (3 meters) of water with the standard 360° rotation and a fully supported pinion gear. We are committed to delivering the most reliable rotations on the market, no matter where you are in the world.
  • Built In-House Cylinders
    • QUALITY CONTROL: Remove the risk of machine contamination. The threat of damaged cylinders and hoses is a common and costly problem that can quickly bring your entire operation to a grinding halt. In order to protect your cylinders and hoses, we have designed a cylinder that has revolutionized the scrap industry. Each Rotobec cylinder is designed, fabricated and assembled in-house to guarantee the absolute best quality. All of our Medium Duty Orange Peel Grapples come equipped with Rotobec’s own built-in-house 5,000 psi cylinders, which offer exceptional closing force and an unbeatable level of durability. Our cylinders are the largest in the industry guaranteeing a longer than average life. To ensure their safety, they are also protected by robust 3/8” steel cylinder guarding. Want less downtime and less damaged cylinders? Try Rotobec cylinders and you will not look back.
  • Famous Rotobec Toughness
    • THE SMALLEST DETAILS MATTER MOST: Rotobec is recognized worldwide for its innovation. All of our grapples are made with only the highest quality steel and components to provide you with the best and most durable products out there. Combined with our exceptional workmanship, we ensure the longevity of your attachment with our top engineered designs and meticulous quality control. We have put our heart and soul in every detail to bring you the best and highest performing scrap attachments in the industry.
