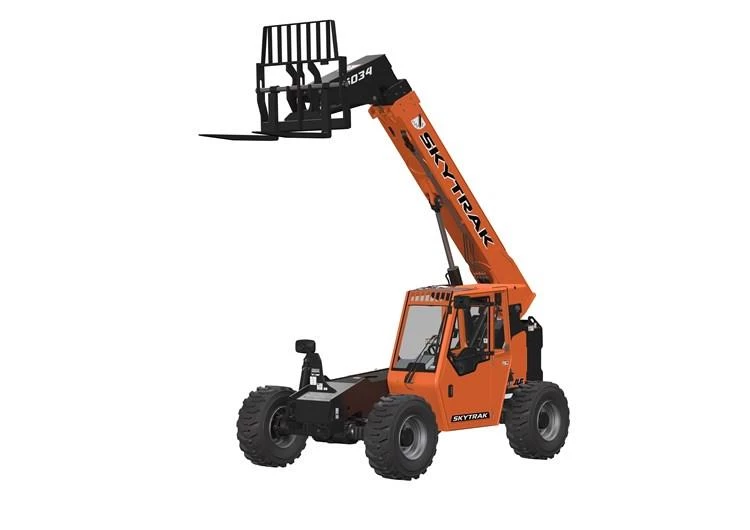

New Sky Trak 6034 Telehandler for Sale SkyTrak is the number one selling brand in North America for a reason. These machines deliver what you need, when you need it. And they've been redesigned to deliver even more comfort and productivity. SkyTrak telehandlers feature improved boom function speeds, a single joystick for greater multifunction capability, an integrated arm rest and optional air conditioning for increased comfort. Tier 4 Final engines are fuel-efficient with less environmental impact. Plus, engine parts and other serviceable components are easily accessible for quicker maintenance. Get ready to settle in for a full day’s work.
|
| Body | |
|---|---|
| Cab | Adjustable suspension seat with retractable seat belt. Integrated arm rest. High visibility seatbelt. Rear view mirrors. |
| ROPS, FOPS & OPS | Certified ROPS/FOPS structure |
| Dimensions | |
|---|---|
| Length | 17’6” |
| Width | 7’11” |
| Height | 8’2” |
| Weight | 14,500 lbs. |
| Wheelbase | 9’2” |
| Ground Clearance | 1’3” |
| Turning Radius | 11’11” |
| Frame Leveling | 10° |
| Engine | |
|---|---|
| Engine Make | Deutz |
| Engine Model | TCD2.9 L4 |
| Cylinders | 4 |
| Horsepower | 74 HP |
| Max Travel Speed | 15 mph |
| Fuel Tank Capacity | 28 Gallons |
| Steering | Power steering Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front |
| Maximum Lower Speed | 9 sec |
| Maximum Telescope Speed | 10 sec |
| Drivetrain | |
|---|---|
| Axles | Full-time planetary 4-wheel drive. Oscillating rear axle with Stabil-Trak system. |
| Transmission Type | Hydrostatic |
| Transmission | 1 Nr Forward Gears Standard 1 Nr Reverse Gears |
| Front Axle | High Bias, Limited Slip |
| Rear Axle | Oscillating |
| Engine/Drivetrain | |
|---|---|
| Displacement | 177 cu in |
| Torque | 221 lbs.-ft. @ 1600 RPM |
| Hydraulic | |
|---|---|
| Hydraulic Tank Capacity | 35.7 Gallons |
| Hydraulic System | Gear Pump. Variable flow, load sensitive hydraulic system. Load holding valves on frame level, attachment tilt, extend and lift cylinders. Auxiliary hydraulics used for all attachments equipped with cylinders or other hydraulic components. Consists of valves, controls and hydraulic lines. |
| Operational | |
|---|---|
| Brakes | Hydraulically actuated inboard wet disc brakes with inching feature. Emergency brake. |
| Tires | 15-19.5 Pneumatic |
| Outriggers | No |
| Travel Speed - Forward | 15 mph (4-Speed) |
| Maximum Reach | 23’2” |
| Max Lift Height | 34’5” |
| Lift Capacity | 6,000 lbs. (at full height) 1,000 lbs. (at max reach) |
| Lift Speed | 11 sec. (Boom Retracted) Up 9 sec. (Boom Retracted) Down |
| Stabilizers | No |
| Max. Load @ Max. Reach | 1,000 lbs. |
| Max. Load @ Full Height | 4,000 lbs. |
| Drawbar Pull | 12,863 lbs. |
| Load Center | 2’ |
| Boom Speed | 10 seconds (extended & retracted) |
| Controls | Single joystick controls |
| Pump Type | Gear |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Sky Trak |
| MODEL | 6034 |
