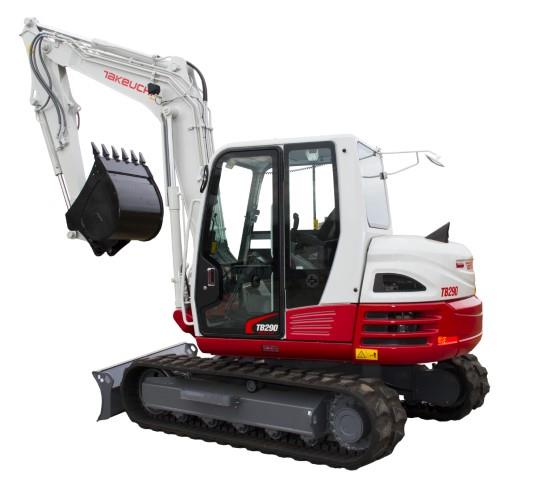

New Takeuchi TB290 Excavator for Sale The TB290 has a wide array of features that maximize efficiency and productivity. A closed center, load sensing hydraulic system allows it to have outstanding multi-function capabilities, and multiple attachment presets and ability to adjust auxiliary flow rates from the cab greatly expands the machines versatility. Service and maintenance access is greatly enhanced with an engine hood and side cover that open high overhead for unmatched ground level serviceability. Big on performance, the TB290 has a wide array of features that maximize efficiency and productivity. A closed center, load sensing hydraulic system allows the TB290 to have outstanding multi-function capabilities, and the attachment presets greatly expands the machines versatility. The cabin on the TB290 is spacious and well appointed. A large color monitor keeps the operator informed of critical machine functions. The auxiliary flow rates can be adjusted from the operator’s seat. A deluxe high back suspension seat can be adjusted for comfort, and the automatic climate control system keeps the operator comfortable year round. Service and maintenance access is greatly enhanced with an engine and side cover that open high overhead for unmatched ground level serviceability. Key hydraulic components including the main control valve, hydraulic tank and sight gauge, and selector valve are mounted outboard for easier inspection and maintenance, and all daily inspection points for the engine can be easily accessed from the rear of the machine. |
| Dimensions | |
|---|---|
| Length | 9’4” (undercarriage) |
| Width | 7’3” (undercarriage) |
| Height | 8’5” (transport) |
| Weight | 18,630 lbs. (Cab Rubber) 19,145 lbs. (Cab Steel) |
| Ground Clearance | 1’3” |
| Fuel Tank Capacity | 33.8 gal |
| Transport Length | 21’10” |
| Transport Height | 8’5” |
| Maximum Reach Ground | 23’11” |
| Front Swing Radius | 8’2” (straight) 6’8” (offset) |
| Engine | |
|---|---|
| Engine Make | Yanmar |
| Engine Model | 4TNV98CT |
| Engine Type | EPA Final Tier 4 |
| Cylinders | 4 |
| Horsepower | 69.2 hp |
| Cooling | 14.8 qt |
| Displacement | 202 cu in |
| Torque | 227.2 ft-lb @ 1300 RPM |
| Fuel Consumption | 2.4 gal/hr (65% of full load) |
| Electrical System | 12 volts/80 amps |
| Rated Speed | 2,000 rpm |
| Lubrication System | 10.8 qt |
| Drivetrain | |
|---|---|
| Track Width | 17.7” (Rubber) |
| Brakes | Parking: Spring applied, hydraulically released |
| Alternator | 12 volt system w/80 amp |
| Track Type | Permanently sealed, triple flanged rollers |
| Track Rollers | 5 per side |
| Ground Pressure | 5.5 PSI (Cab Rubber) 4.8 PSI (Cab Steel) |
| Traction Drive | Planetary Reduction w/Automatic Shift Down |
| Hydraulic | |
|---|---|
| Pump | Load Sensing Piston Pumps w/Two Gear Pumps |
| Hydraulic Tank Capacity | Reservoir: 19.3 gal System: 37.0 gal |
| Hydraulic Flow | 62.5 GPM |
| Operating Pressure | 3,990 psi |
| Auxiliary Flow | Primary Circuit: 26.4 GPM Secondary Circuit: 14.5 GPM |
| Hydraulic System Pressure | 3,990 PSI |
| Operational | |
|---|---|
| Blade Height | 20.0” |
| Dig Depth | Max: 15’ Vertical: 12’6.4” |
| Dig Height | 23’11.1” |
| Arm Length | 7’ |
| Dump Height | 17’3” |
| Bucket Breakout Force | 16,565 lbs. |
| Travel Speed - Forward | Low: 1.6 mph High: 3.1 mph |
| Maximum Reach | 24’5” |
| Lift Capacity | 6,728 lbs. (Lifting Capacities Over Front, Blade Down; Rotation Axis 9’) 8,524 lbs. (Lifting Capacities Over Front, Blade Down; Rotation Axis 12’) 5,829 lbs. (Lifting Capacities Over Side; Rotation Axis 9’) 3,839 lbs. (Lifting Capacities Over Side; Rotation Axis 12’) |
| Boom Swing Angle | 70° Left / 60° Right |
| Tail Swing Radius | 5’5” |
| Slew Speed | 10.3 rpm |
| Traction Force | 19,780 lbs. |
| Max. Arm Digging Force | 8,161 lbs. |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Takeuchi |
| MODEL | TB290 |
