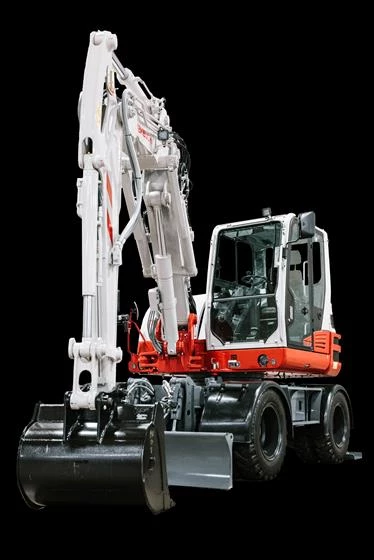

New Takeuchi TB395W Wheeled Excavator for Sale

The TB395W, weighing 23,424 lbs. with a 114-horsepower engine, combines powerful excavating capabilities with a maximum dig depth of 13 ft 5.2 in and superior on-road performance, with speeds up to 18 mph. The standard two-piece, heavy-duty swing boom enables operators to dig further away from the machine and also allows for closer digging when needed, while the hydraulic outriggers and a dozer blade greatly enhance the machine’s stability. The TB395W is equipped with three auxiliary circuits catering to different hydraulic requirements. The primary circuit delivers an impressive 32 gpm, while the secondary circuit provides 14.5 gpm. The third auxiliary circuit is specifically designed for use with a hydraulic quick coupler. The TB395W features two different steering options: 2-wheel steer and 4-wheel/crab steer, allowing for precise maneuverability in various work environments. The interior includes an 8” color touch screen display with jog dial for easy access to essential machine information and controls. The 270-degree camera system gives operators greater peace of mind by providing an unmatched field of view around the rear and sides of the machine. The TB395W is the perfect blend of performance, durability, serviceability, and operator comfort, ensuring top-notch performance on the job site.

Performance: The TB395W is equipped with a two-piece heavy-duty swing boom that enhances the machine’s versatility and productivity on the job site. This feature allows the operator to easily dig offset to both the right and left sides of the machine. The two-piece articulating boom extends the reach of the arm, enabling the operator to dig further away from the machine while also being able to dig closer to the to it when needed.

Operator Comfort: The interior includes spacious floorboard controls, a 6 way adjustable high back air ride suspension seat, and an 8” color touch screen display with job dial providing easy access to essential machine information and controls. The 270-degree camera system provides operators with peach of mind with its unmatched field of view around the rear and sides of the machine.

Serviceability: Serviceability is a top priority in the design of our products, and we have made it even easier by using the large lockable overhead service doors. These doors provide convenient access to essential components for maintenance and repairs, ensuring that technicians can quickly and efficiently address any maintenance needs.

Durability: The heavy-duty steel reinforced blade is designed with a box frame structure ensuring rigidity and durability. The unique shape of the blade, with its height and curvature, enables better material retention and prevents material from rolling back towards the machine.

Features and Benefits

Function and Efficiency

• The two-piece heavy-duty swing boom enhances the machine’s versatility and productivity on the job site.
• The two-piece articulating boom extends the reach of the arm, enabling the operator to dig further away from the machine while also being able to dig closer to it when needed.
• The 2-wheel steer option provides excellent maneuverability for tight spaces, while the 4-wheel steer with crab steer feature allows for seamless movement and positioning in confined areas.
• Large jobsites can be easily navigated with the TB395W. With an impressive 18” of ground clearance and 100% locking differential this machine can handle rough and uneven surfaces with ease.

Increased Stability

• Stability is greatly increased with the use of hydraulic outriggers and a dozer blade providing additional support and balance.
• The lockable digging brake and ram lock further contribute to improved stability by preventing unwanted movement and ensuring that the machine stays in place while digging.
• Wheel chocks are included to ensure that your machine stays in place while parked.

Operator Focused

• The spacious floorboard controls include Swing Boom and Dual boom Control pedal, lockable digging break, foot throttle, and the 2 way adjustable steering column.
• It is equipped with a 6 way adjustable high back air ride suspension seat, ensuring maximum comfort and support for the operator during long hours of use.
• The 8” inch color touch screen display with Jog dial is a powerful tool that provides easy access to essential machine information and controls.

Peace of Mind

• The 270-degree camera system provides operators with peace of mind with its unmatched field of view around the rear and sides of the machine.
• The LED head lighting package both front and rear enhance visibility in low light conditions.
• Auto cruise control is a valuable feature that allows operators to set and adjust travel speed, whether in low or high range, through the convenient rocker switch set button.

Ease of Maintenance

• Large lockable overhead doors provide convenient access to essential components for maintenance and repairs, ensuring that technicians can quickly and efficiently address any maintenance needs.
• Rear service access includes Pilot filter, DPF and SCR, hydraulic pumps, oil fill and filter, Dip Stick, Engine access, cooling package and fan.
• Right side service access includes fuel filter, dual element air cleaner, hydraulic tank, battery access, control valve, fuel tank and fuel fill, DEF tank and DEF fill, washer fluid, and pattern change valve.

Takeuchi Fleet Management

• 2 Year Standard Service
• Minimize Downtime
• Remote Diagnostics
• Utilization Tracking
• Proactive Maintenance
• Personalized Fault Alerts
• Control Costs
• Geofencing
